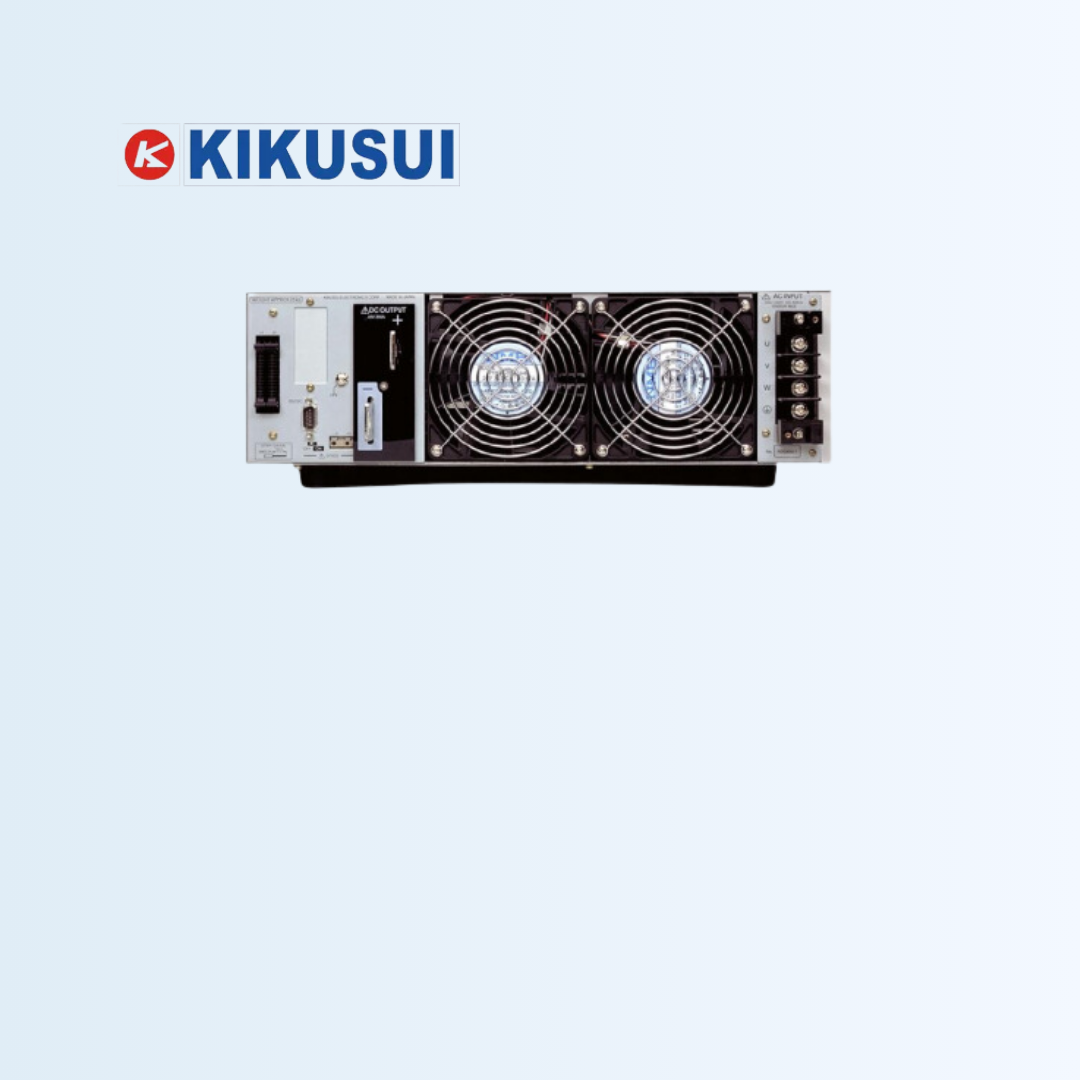

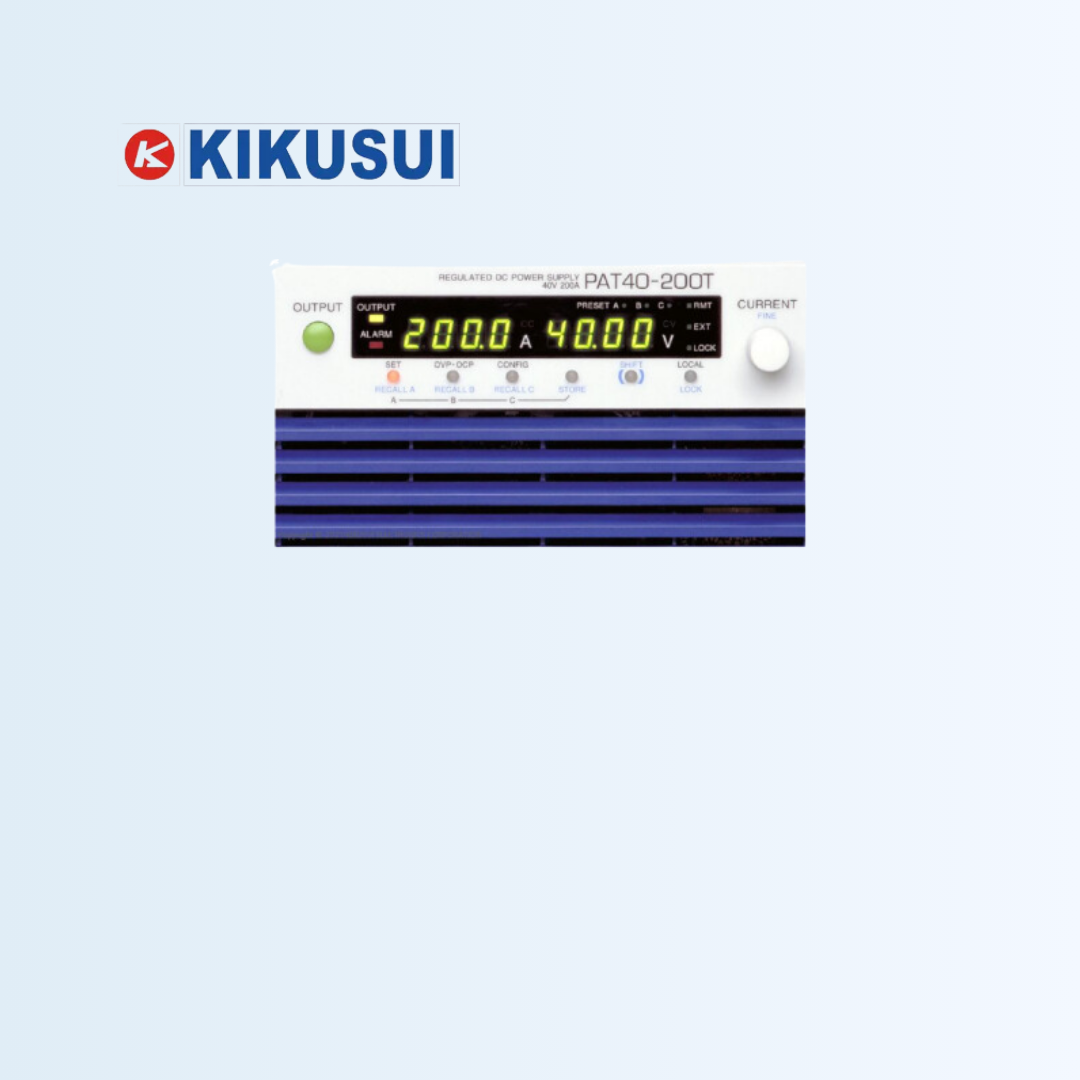

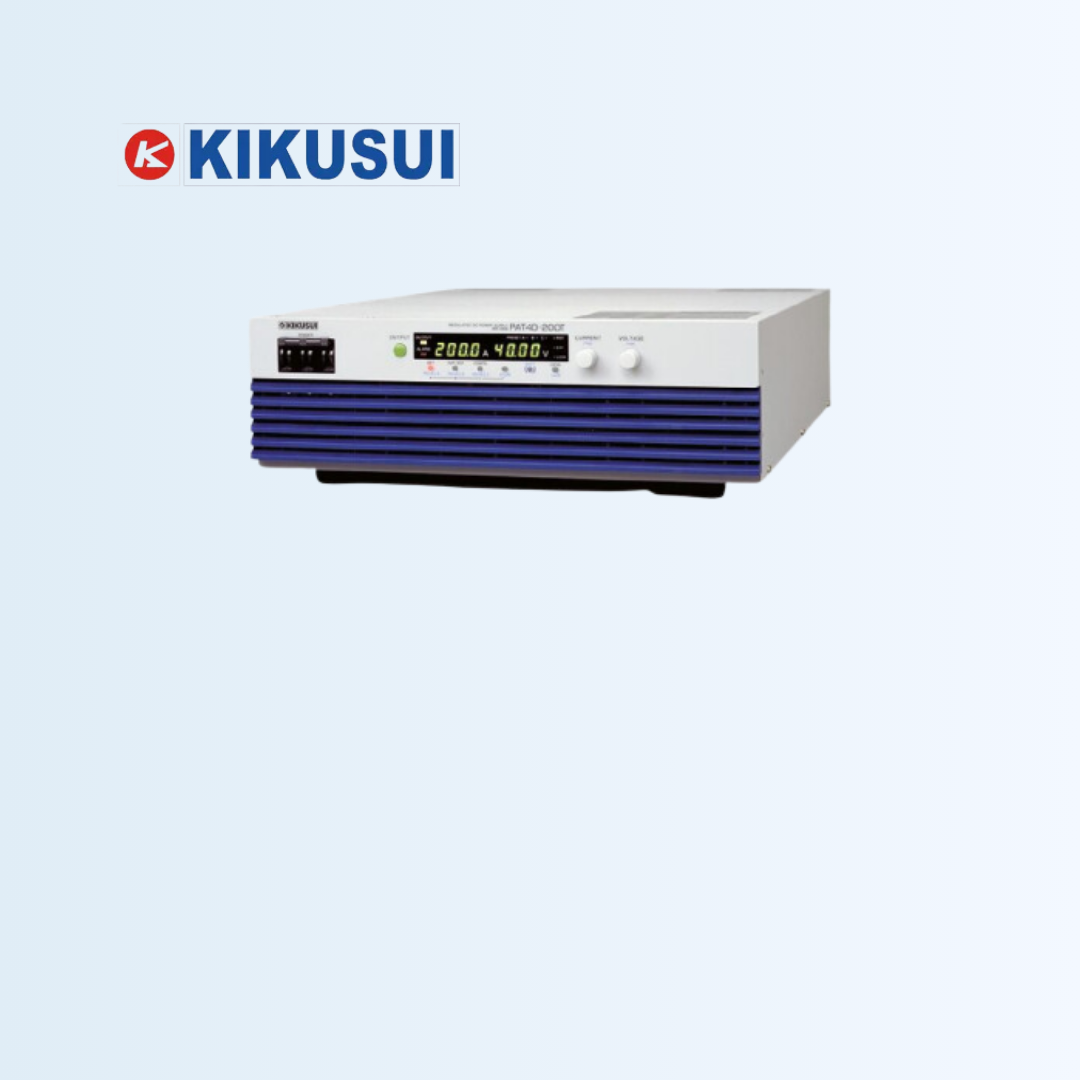

Smart Variable-switching DC Power Supply (Switching system, CV/CC) 32 Models

The PAT-T Series is a CV/CC auto-shifting switching DC power supply featuring excellent efficiency and low noise due to a soft switching system design. The PAT-T series is equipped with state-of-the-art high-density packaging technology allowing for extremely high power capacity with a vastly reduce chassis size and weight.

  • 4 kW type can operate even with single-phase 200 volt input. (However, current is limited to about 75% of rated value).
  • Standardly equipped with RS-232C interface.
  • Supports USB/GPIB/LAN interface.(Factory option).
  • Controllable from Excel VBA and LabView with measuring instrument driver. Driver can be downloaded free at our web site.
  • Capacity can be expanded through parallel operation (up to five units of the same model).
  • Equipped with reliable output ON/OFF delay function during sequence operations.
  • Memory function (three sets of voltage/current).
  • Voltage/current monitor output.
  • Status signal output.
  • Remote sensing function.
  • Protective functions (shutdown, as well as protection against overvoltage, overcurrent, overheating, input phase interruption, fan malfunction, sensing, and bleeder circuit overheating).
  • High noise resistance (for reassurance during car electronics testing).
  • Good maintainability, including easy fan replacement.
  • 3-phase 400V input available (8kw type).
  • The large-current model assembles multiple PAT-T series units with special rack parts.
  • The PAT-TMX is a model equipped with the breaker.
  • A total of 82 models are available, ranging from 16 kW to 40 kW.
  • The LAN interface applies to the LXI (LAN eXtensions for Instrumentation).
  • Lifetime testing of headlights, etc.
  • Performance and endurance testing of inverters for use in high-capacity air conditioners and motors.
  • Performance and endurance testing of brushless motors for use in EPS, MG, and SG units.
  • Performance testing of IPM, IGBT, and other power modules.
  • Performance testing of starter motors.
PAT20-200T 4kW, 0 to 20V/0 to 200A
PAT20-400T 8kW, 0 to 20V/0 to 400A
PAT20-800TM 16kW, 0 to 20V/0 to 800A, Smart rack system (The large-current model assembles multiple PAT-T series units with special rack parts)
PAT20-800TMX 16kW, 0 to 20V/0 to 800A, Smart rack system (The large-current model assembles multiple PAT-T series units with special rack parts). Model with breaker
PAT20-1200TM 24kW, 0 to 20V/0 to 1200A, Smart rack system (The large-current model assembles multiple PAT-T series units with special rack parts)
PAT20-1200TMX 24kW, 0 to 20V/0 to 1200A, Smart rack system (The large-current model assembles multiple PAT-T series units with special rack parts). Model with breaker
PAT20-1600TM 32kW, 0 to 20V/0 to 1600A, Smart rack system (The large-current model assembles multiple PAT-T series units with special rack parts)
PAT20-1600TMX 32kW, 0 to 20V/0 to 1600A, Smart rack system (The large-current model assembles multiple PAT-T series units with special rack parts). Model with breaker
PAT20-2000TM 40kW, 0 to 20V/0 to 2000A, Smart rack system (The large-current model assembles multiple PAT-T series units with special rack parts)
PAT20-2000TMX 40kW, 0 to 20V/0 to 2000A, Smart rack system (The large-current model assembles multiple PAT-T series units with special rack parts). Model with breaker
PAT30-266T 8kW, 0 to 30V/0 to 266A
PAT30-532TM 16kW, 0 to 30V/0 to 532A, Smart rack system (The large-current model assembles multiple PAT-T series units with special rack parts)
PAT30-532TMX 16kW, 0 to 30V/0 to 532A, Smart rack system (The large-current model assembles multiple PAT-T series units with special rack parts). Model with breaker
PAT30-798TM 24kW, 0 to 30V/0 to 798A, Smart rack system (The large-current model assembles multiple PAT-T series units with special rack parts)
PAT30-798TMX 24kW, 0 to 30V/0 to 798A, Smart rack system (The large-current model assembles multiple PAT-T series units with special rack parts). Model with breaker
PAT30-1064TM 32kW, 0 to 30V/0 to 1064A, Smart rack system (The large-current model assembles multiple PAT-T series units with special rack parts)
PAT30-1064TMX 32kW, 0 to 30V/0 to 1064A, Smart rack system (The large-current model assembles multiple PAT-T series units with special rack parts). Model with breaker
PAT30-1330TM 40kW, 0 to 30V/0 to 1330A, Smart rack system (The large-current model assembles multiple PAT-T series units with special rack parts)
PAT30-1330TMX 40kW, 0 to 30V/0 to 1330A, Smart rack system (The large-current model assembles multiple PAT-T series units with special rack parts). Model with breaker
PAT40-100T 4kW, 0 to 40V/0 to 100A
