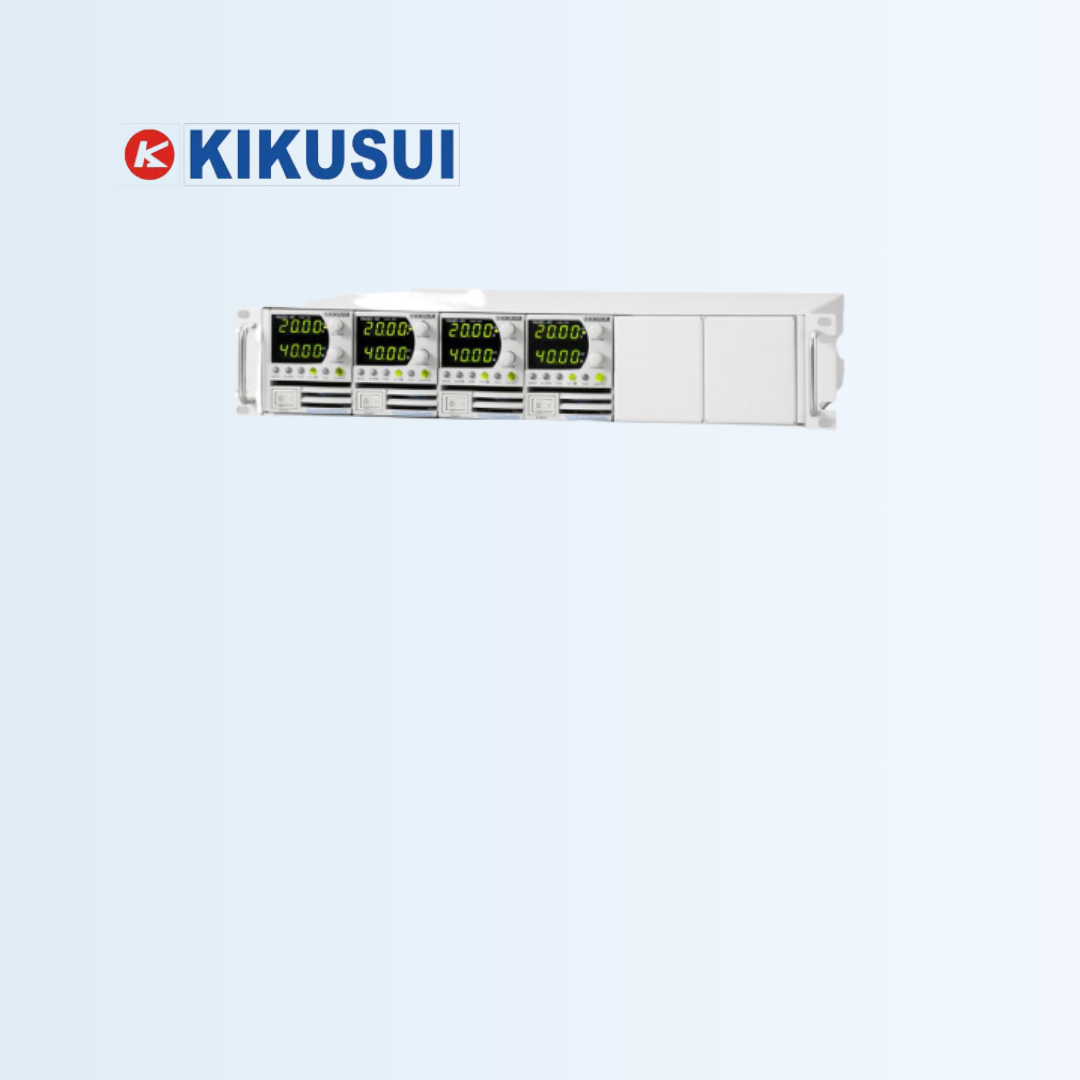

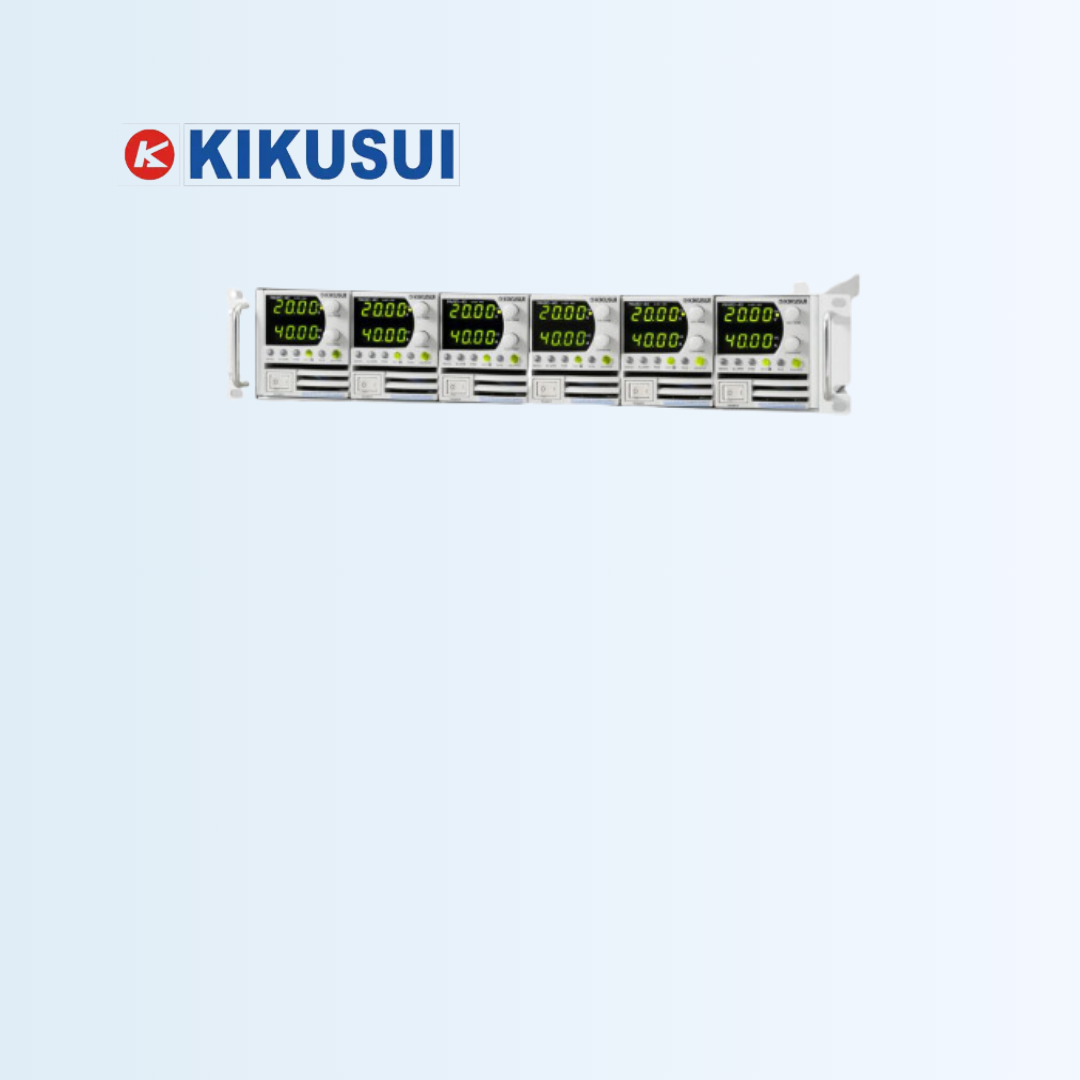

Smart Variable-switching DC Power Supply (Switching system, CV/CC) 32 Models
The PAV series is a compact, high power density, high performance constant voltage (CV) / constant current (CC) variable switching power supply. The PAV consists of 64 models total *1 with 4 types of maximum power outputs at 200 W, 400 W, 600 W and 800 W and output voltages from 10 V through 650 V. All models are standardized to a same size with 2U high (approximately 88 mm) and have high power density for bench-top use. The PAV series allows sequence settings with an embedded CPU as well as analog control.
| PAV10-20 | 0 to 10V / 0 to 20A / 200W |
|---|---|
| PAV20-10 | 0 to 20V / 0 to 10A / 200W |
| PAV36-6 | 0 to 36V / 0 to 6A / 216W |
| PAV60-3.5 | 0 to 60V / 0 to 3.5A / 210W |
| PAV100-2 | 0 to 100V / 0 to 2A / 200W |
| PAV160-1.3 | 0 to 160V / 0 to 1.3A / 208W |
| PAV320-0.65 | 0 to 320V / 0 to 0.65A / 208W |
| PAV650-0.32 | 0 to 650V / 0 to 0.32A / 208W |
| PAV10-40 | 0 to 10V / 0 to 40A / 400W |
| PAV20-20 | 0 to 20V / 0 to 20A / 400W |
| PAV36-12 | 0 to 36V / 0 to 12A / 432W |
| PAV60-7 | 0 to 60V / 0 to 7A / 420W |
| PAV100-4 | 0 to 100V / 0 to 4A / 400W |
| PAV160-2.6 | 0 to 160V / 0 to 2.6A / 416W |
| PAV320-1.3 | 0 to 320V / 0 to 1.3A / 416W |
| PAV650-0.64 | 0 to 650V / 0 to 0.64A / 416W |
| PAV10-60 | 0 to 10V / 0 to 60A / 600W |
| PAV20-30 | 0 to 20V / 0 to 30A / 600W |
| PAV36-18 | 0 to 36V / 0 to 18A / 648W |
| PAV60-10 | 0 to 60V / 0 to 10A / 600W |
| PAV100-6 | 0 to 100V / 0 to 6A / 600W |
| PAV160-4 | 0 to 160V / 0 to 4A / 640W |
| PAV320-2 | 0 to 320V / 0 to 2A / 640W |
| PAV650-1 | 0 to 650V / 0 to 1A / 650W |
| PAV10-72 | 0 to 10V / 0 to 72A / 720W |
| PAV20-40 | 0 to 20V / 0 to 40A / 800W |
| PAV36-24 | 0 to 36V / 0 to 24A / 864W |
| PAV60-14 | 0 to 60V / 0 to 14A / 840W |
| PAV100-8 | 0 to 100V / 0 to 8A / 800W |
| PAV160-5 | 0 to 160V / 0 to 5A / 800W |
| PAV320-2.5 | 0 to 320V / 0 to 2.5A / 800W |
| PAV650-1.25 | 0 to 650V / 0 to 1.25A / 812.5W |
