PWX Series
PWX Series
PWX Series

PWX Series

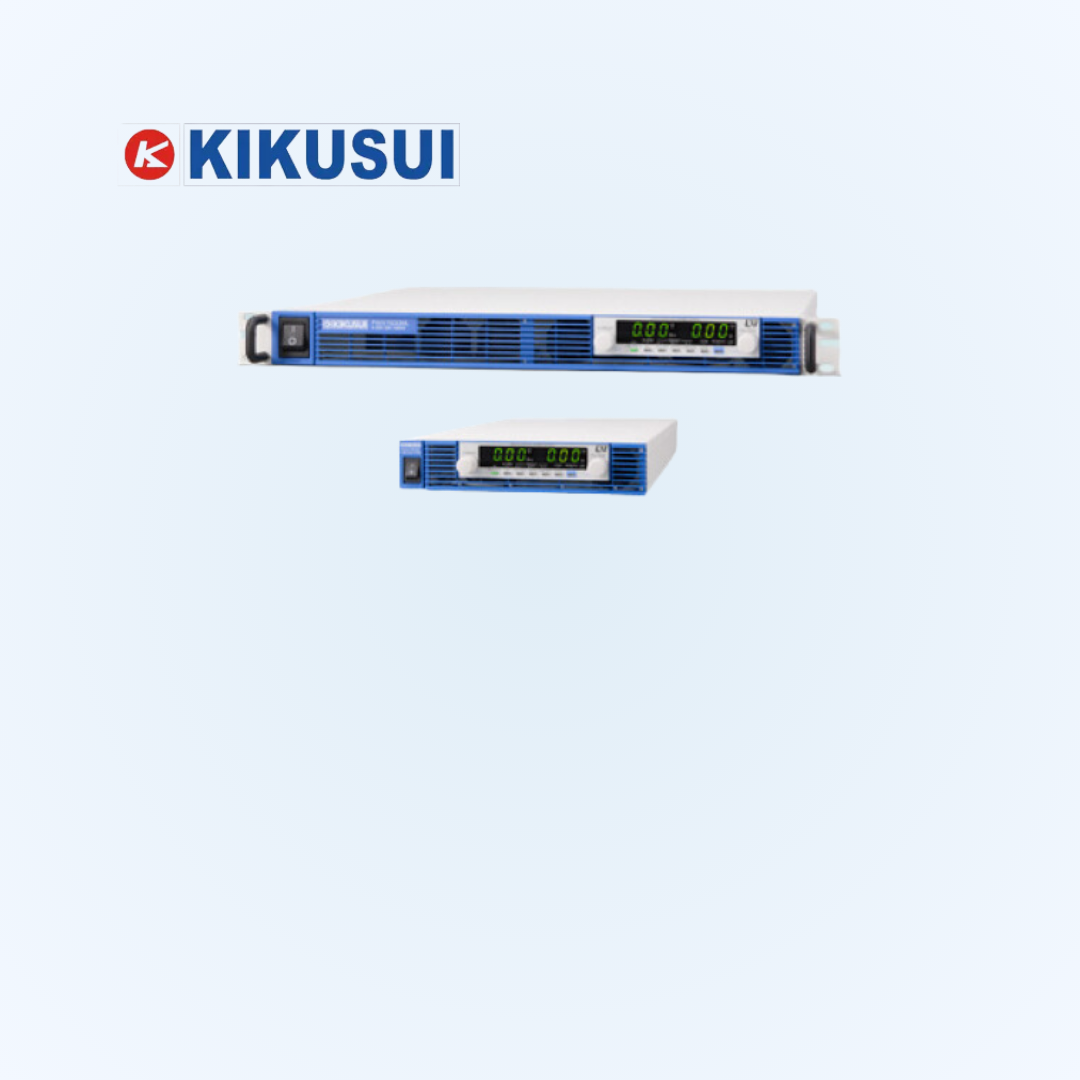

1U Multi Range Programmable DC Power Supply (Switching system, CV/CC) 9 Models

The PWX series is a CVCC programmable regulated DC power supply designed to optimize for a rack-mounted power supply. To increase its mounting efficiency, it has a 19-inch rack width with a thin shape and intakes and outtakes for cooling on only the front and back surfaces so that it can be mounted flush top and bottom. The series is equipped standard with USB, RS-232C, and LAN interfaces, which are essential for system upgrades. The series also has a virtual multi-channel bus (VMCB) function that allows it to be used efficiently for remote control and monitoring with 1-to-N and as well as with N-to-M in large-scale networks. In particular, the LAN interface is LXI compliant*, enabling you to control and monitor the power supply easily from a browser on a PC, smartphone, or tablet. You can also manage the power supply in a different building.

  • Rated output power: 750 W/1500 W.
  • Rated output voltage: 30 V/80 V/230 V/650 V.
  • A wide range of voltage and current settings can be combined within its output power rating (3 times).
  • PFC circuit of 0.99 (with 100 V) or 0.97 (with 200 V) at full load *TYP value.
  • Supporting universal input voltage (85 V to 265 V).
  • LAN (LXI compliant) /USB/RS-232C as standard interface.
  • A virtual multi-channel bus (VMCB) function makes multi-channel operation more efficient.
  • Emulation setting, Command language setting function.
  • A thin and lightweight design with a 1U height for increased rack-mounting efficiency.
  • Expandable output capacity by parallel operation.
  • Expandable output voltage by series operation (up to 2 units by the same model and excluding 650V models).
  • External analog control function (Output control based on voltage and resistance; ON/OFF based on contact signals).
  • Analog monitor output (output voltage, output current, and operating mode can be monitored).
  • Various protection functions: overvoltage protection, overcurrent protection, and overheat protection.
  • Memory function (3 combinations of settings for voltage, current, OVP, OCP, and UVL).
  • Remote sensing function.
  • Bleeder circuit ON/OFF setting (to prevent over-discharging of batteries).
  • CV, CC priority start function (prevents overshoot with output ON).
  • Variable Internal Resistance Feature (Factory option *Exclude PWX750ML).
  • Equipped with standard LAN interface and optional VMCB function to support network-based remote control and monitoring.
  • Basic configuration with LAN interface and VMCB.
  • Easy access with the built-in web server.
  • Operating Range: 3 times output power rating.
  • Application Software Sequence Creation Software SD013-PWX (Wavy for PWX).
  • SD013-PWX (Wavy for PWX) is an application software that supports sequence creation and the operation for Kikusui power supplies and electronic loads.
PWX750LF Variable voltage and current combinations with 3 times of coverage ratio of its range within the rated power, 1U height (width full-rack size), slim and lightweight design, suitable for rack mount, Rated output : 750W, 0 to 30V/0 to 75A, PFC circuit of 0.99 (with 100V) or 0.97 (with 200V) at full load, LAN/USB/RS-232C as standard interface (LAN: LXI compliant).
PWX1500L Variable voltage and current combinations with 3 times of coverage ratio of its range within the rated power, 1U height (width full-rack size), slim and lightweight design, suitable for rack mount, Rated output : 1500W, 0 to 30V/0 to 150A, PFC circuit of 0.99 (with 100V) or 0.97 (with 200V) at full load, LAN/USB/RS-232C as standard interface (LAN: LXI compliant).
PWX750ML Variable voltage and current combinations with 3 times of coverage ratio of its range within the rated power, 1U height (width half-rack size), slim and lightweight design, suitable for rack mount, Rated output : 750W, 0 to 80V/0 to 28A, PFC circuit of 0.99 (with 100V) or 0.97 (with 200V) at full load, LAN/USB/RS-232C as standard interface (LAN: LXI compliant).
PWX750MLF Variable voltage and current combinations with 3 times of coverage ratio of its range within the rated power, 1U height (width full-rack size), slim and lightweight design, suitable for rack mount, Rated output : 750W, 0 to 80V/0 to 28A, PFC circuit of 0.99 (with 100V) or 0.97 (with 200V) at full load, LAN/USB/RS-232C as standard interface (LAN: LXI compliant).
PWX1500ML Variable voltage and current combinations with 3 times of coverage ratio of its range within the rated power, 1U height (width full-rack size), slim and lightweight design, suitable for rack mount, Rated output : 1500W, 0 to 80V/0 to 56A, PFC circuit of 0.99 (with 100V) or 0.97 (with 200V) at full load, LAN/USB/RS-232C as standard interface (LAN: LXI compliant).
PWX750MHF Variable voltage and current combinations with 3 times of coverage ratio of its range within the rated power, 1U height (width full-rack size), slim and lightweight design, suitable for rack mount, Rated output : 750W, 0 to 230V/0 to 10A, PFC circuit of 0.99 (with 100V) or 0.97 (with 200V) at full load, LAN/USB/RS-232C as standard interface (LAN: LXI compliant).
PWX1500MH Variable voltage and current combinations with 3 times of coverage ratio of its range within the rated power, 1U height (width full-rack size), slim and lightweight design, suitable for rack mount, Rated output : 1500W, 0 to 230V/0 to 20A, PFC circuit of 0.99 (with 100V) or 0.97 (with 200V) at full load, LAN/USB/RS-232C as standard interface (LAN: LXI compliant).
PWX750HF Variable voltage and current combinations with 3 times of coverage ratio of its range within the rated power, 1U height (width full-rack size), slim and lightweight design, suitable for rack mount, Rated output : 750W, 0 to 650V/0 to 3.5A, PFC circuit of 0.99 (with 100V) or 0.97 (with 200V) at full load, LAN/USB/RS-232C as standard interface (LAN: LXI compliant).
PWX1500H Variable voltage and current combinations with 3 times of coverage ratio of its range within the rated power, 1U height (width full-rack size), slim and lightweight design, suitable for rack mount, Rated output : 1500W, 0 to 650V/0 to 7A, PFC circuit of 0.99 (with 100V) or 0.97 (with 200V) at full load, LAN/USB/RS-232C as standard interface (LAN: LXI compliant).
