PMX-A Series
PMX-A Series
PMX-A Series

PMX-A Series

Compact DC Power Supply (CV/CC) 9 Models

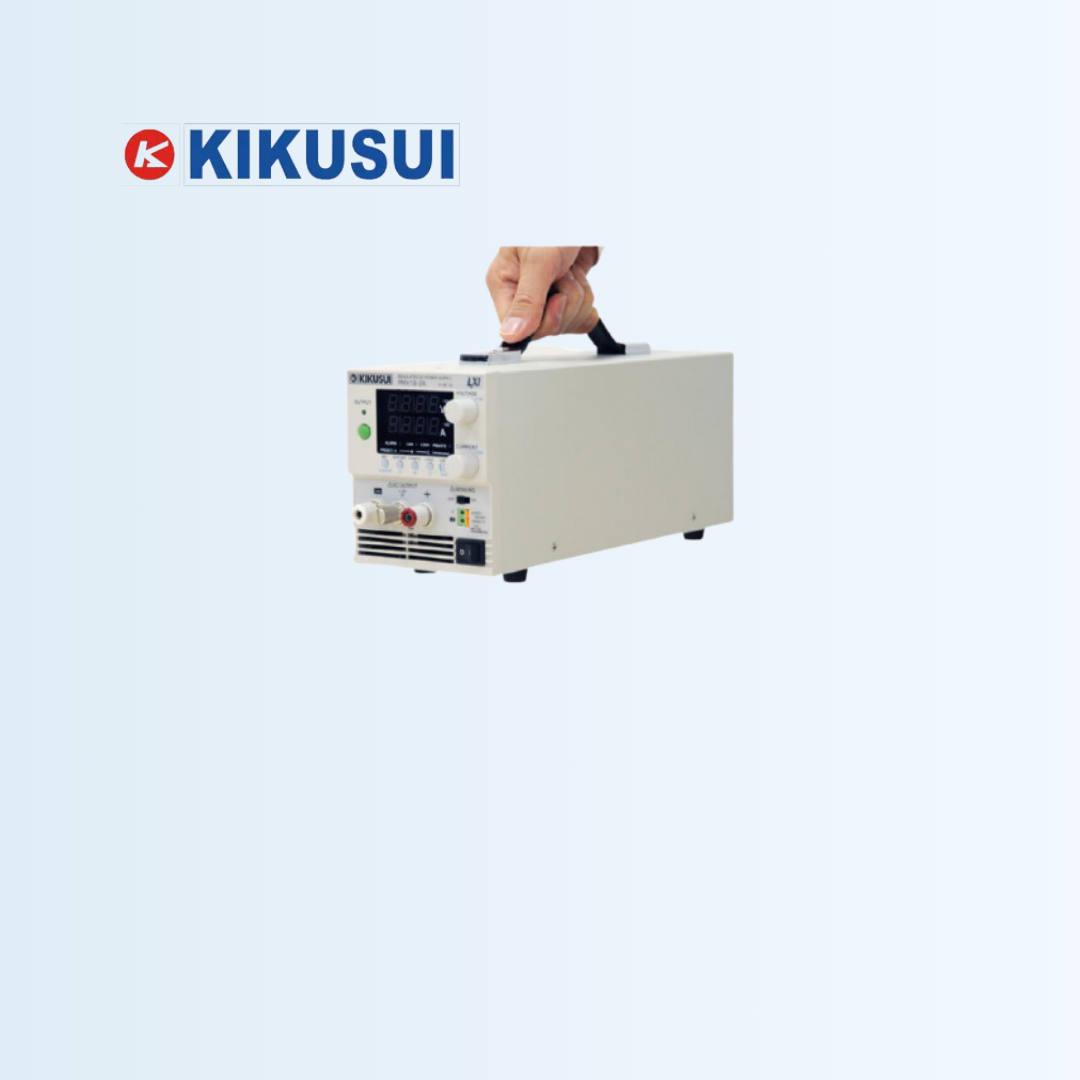

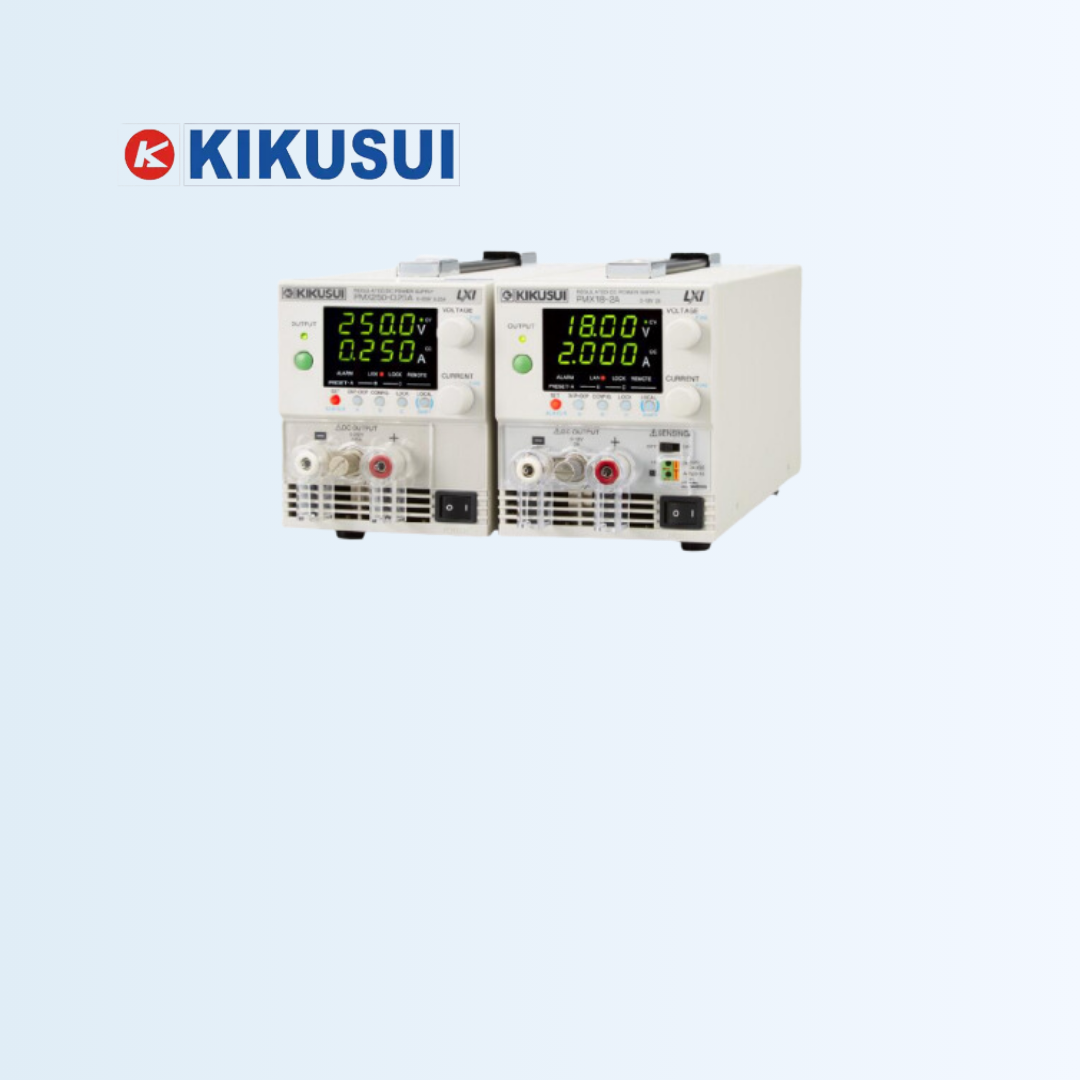

The PMX-A series is a compact, high-performance DC power supply that provides constant voltage (CV) and constant current (CC). It is designed to improve working efficiency for benchtop uses. For this purpose, the output terminals are located on the front panel and are ergonomically designed so that wiring harnesses for electrical loads can be connected by moving your fingers naturally. Moreover, a forced air cooling system is used to intake and exhaust of the internal air, so the unit can be rack mounted without space.

  • A standard feature of the networking capability provides extended applications of the ordinary testing.
  • Series regulator system with excellent noise performance
  • High setting resolution - Voltage: 1 mV, Current: 0.1 mA (PMX18-2A)
  • Wide range of output variations (9 models are available)

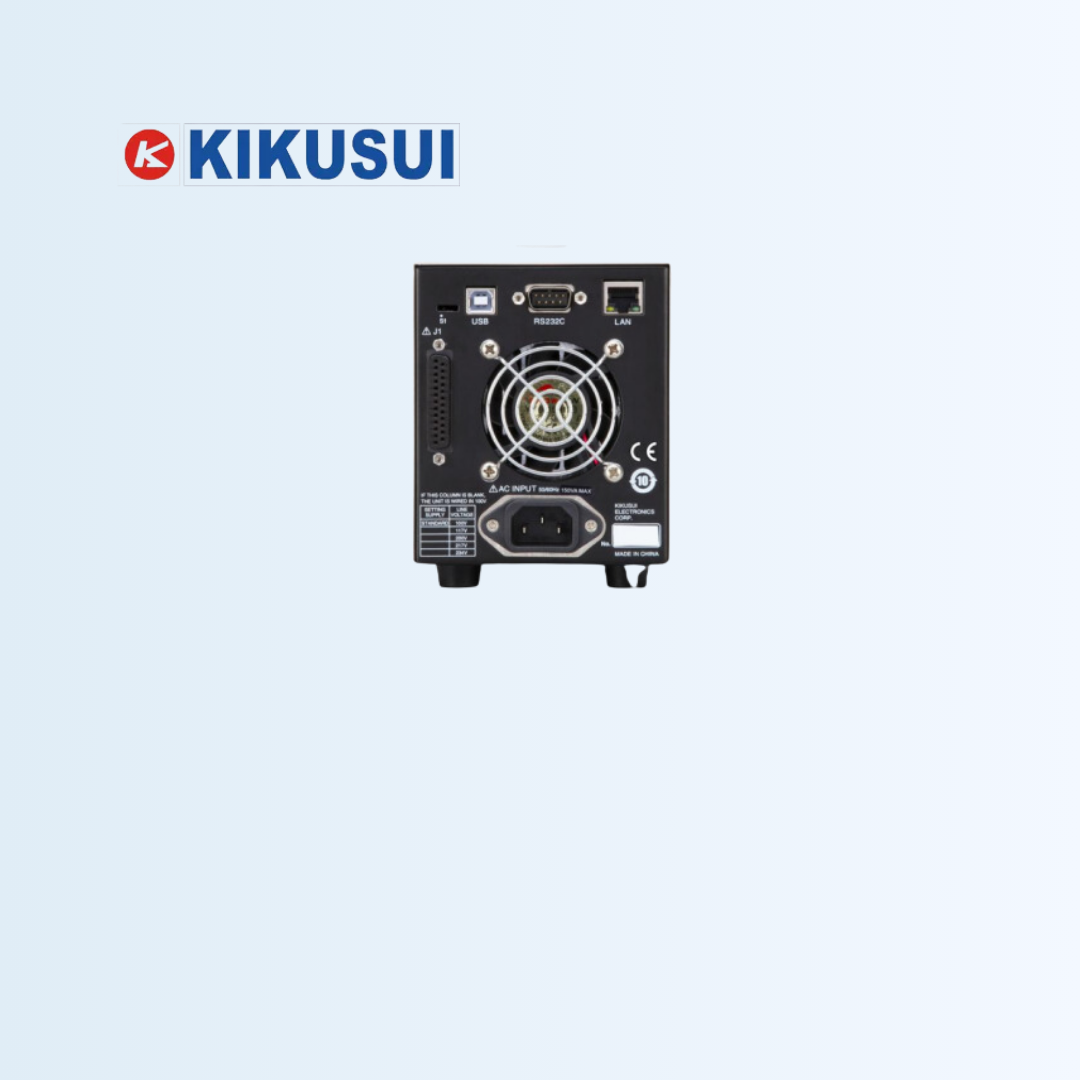

  • LAN (LXI compliant) / USB / RS232C as standard interface
  • External analog remote control
  • Monitoring and status signal output
  • CV, CC priority start function (to prevent overshoot when the output is ON)
  • Remote sensing function (18V, 35V models)
  • Key lock, 3-point preset memory function
  • Easy access with the built-in web server : Use a browser from a PC, smartphone, or tablet to access the web server built into the PMX-A series for convenient control and monitoring.
  • The software that supports to the auto testing of the power supply. Allows you to create and edit sequence data easily using a mouse : The SD025-PMX (Wavy for PMX) is an application software that supports sequence creation and the operation of the Kikusui power supplie and the electronic load. The “Wavy” software allows you to create and edit sequences visually using a mouse without programming knowledge. It enables you to control the power supply in much the same way as remote controller for such monitoring the voltage and current, logging and so on.
  • The limited function of the optional sequence creation and control software "SD025-PMX (Wavy for PMX)" is available to be downloaded free of charge. For details, please refer to the following information and our WEB.
PMX18-2A 0 to 18V/0 to 2A LAN/USB/RS232C as standard interface (LAN: LXI compliant)
PMX18-5A 0 to 18V/0 to 5A LAN/USB/RS232C as standard interface (LAN: LXI compliant)
PMX35-1A 0 to 35V/0 to 1A LAN/USB/RS232C as standard interface (LAN: LXI compliant)
PMX35-3A 0 to 35V/0 to 3A LAN/USB/RS232C as standard interface (LAN: LXI compliant)
PMX70-1A 0 to 70V/0 to 1A LAN/USB/RS232C as standard interface (LAN: LXI compliant)
PMX110-0.6A 0 to 110V/0 to 0.6A LAN/USB/RS232C as standard interface (LAN: LXI compliant)
PMX250-0.25A 0 to 250V/0 to 0.25A LAN/USB/RS232C as standard interface (LAN: LXI compliant)
PMX350-0.2A 0 to 350V/0 to 0.2A LAN/USB/RS232C as standard interface (LAN: LXI compliant)
PMX500-0.1A 0 to 500V/0 to 0.1A LAN/USB/RS232C as standard interface (LAN: LXI compliant)
