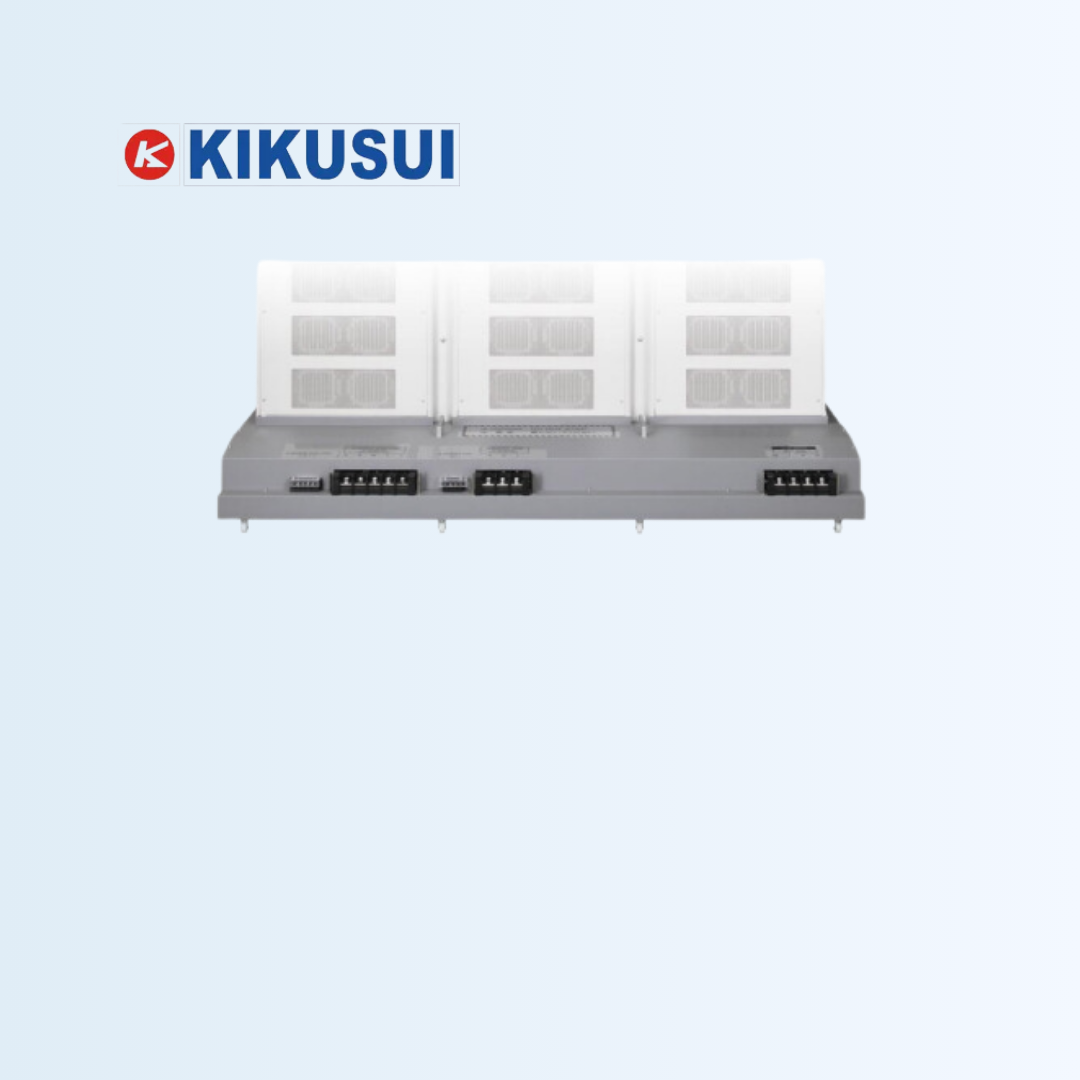

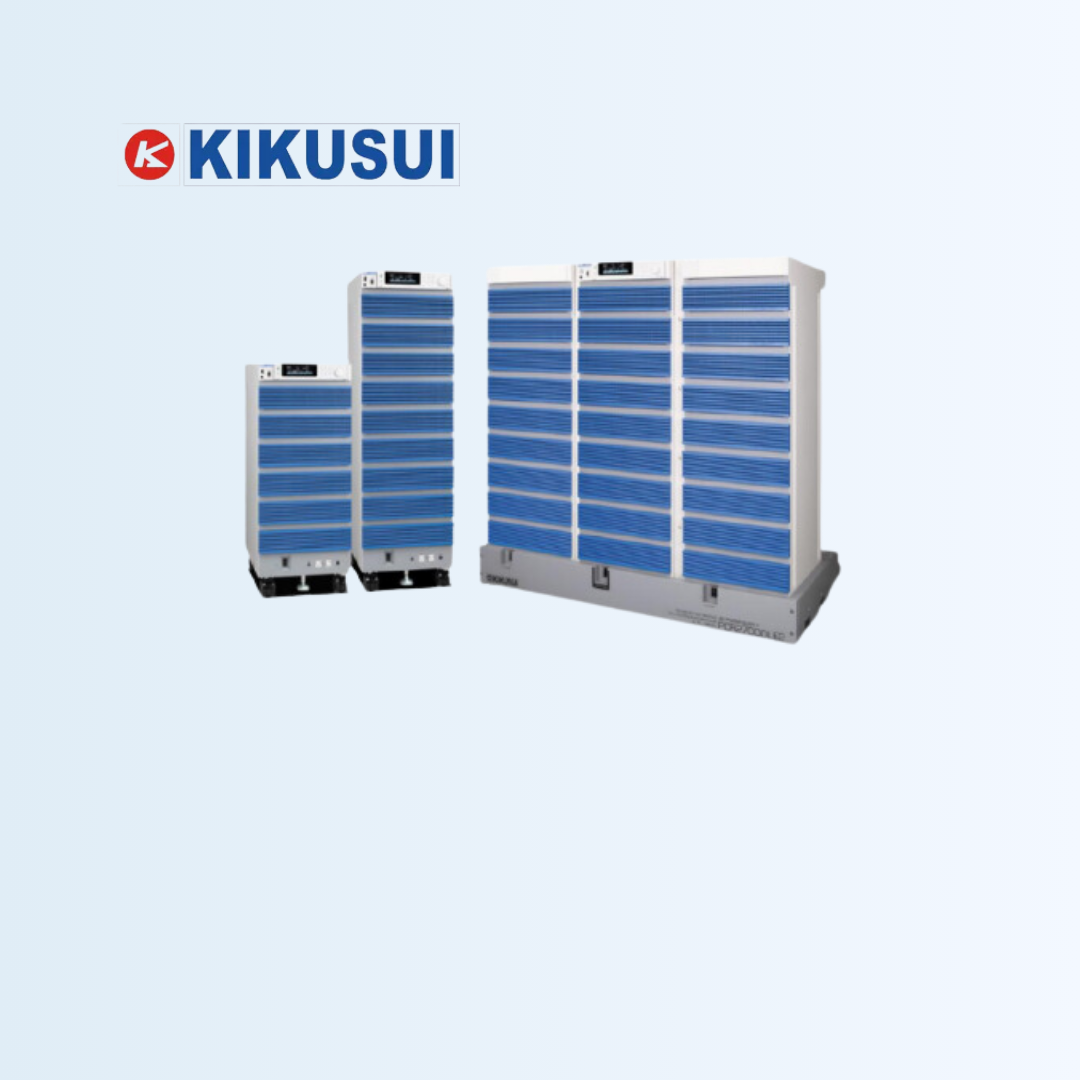

PCR-LE2 Series
PCR-LE2 Series

No image available.

PCR-LE2 Series

Multi-output AC Power Supplies (CV/CF) 5 Models

The PCR-LE2 Series are designed based on the PCR-LE Series that supports single-phase output, single-phase 3-wire output, and three-phase output within the rated capacity by selecting the switch from the front panel operation.

  • Wide-ranging specs DC output also supported : Output voltage rating (AC): 1 to 300V, Output frequency rating: 1 to 999.9Hz, Output voltage rating (DC): ± 1.4 to ± 424V.
  • Selectable response mode : Allows select of a response mode for the internal amplifier system depending on the load condition and application.
  • Normal response (MEDIUM : for testing various power supply environments, and Highly stable response.
  • Power line abnormality simulation : In AC mode, it is possible to simulate power line abnormalities by setting the output of the PCR-LE2 series system to the state of a power outage, voltage drop (dip), or voltage increase (pop).
  • Various measuring functions : Output voltage/current RMS values, peak voltage / current, effective power/apparent power, and power factor can be measured.
  • Sequence function : The output voltage, frequency, and waveform can be changed along the way, thus, power supply environment testing can be automated.
  • Sensing, Regulation adjustment : Even in cases in which load units are installed remotely, the voltage (RMS value) at the end of the load can be stabilized through correction of voltage drops.
  • Output current control : The current limiting function enables you to control the output current (RMS) at a certain level for continuous operation by a selectable time setting (time/continuous) for a trip operation.
  • External communication : RS232C (equipped as a standard).
  • Memory function : It is possible to store up to 99 data sets of the output frequency, voltage (AC/DC), and a cyclic waveform under the waveform bank number on the memory of the main unit.
  • Standard supported : Usable for systems to test conformance to the IEC61000-3 and 4 Series standards.
  • Front panel serving as a remote control : The front panel is detachable. With the optional extension cable, the panel functions as a remote control.
  • For "system interconnection tests" with reverse load flow : Conforming to the guideline for requirements of system interconnection technologies
  • Excellent maintenance ability due to the unit configuration : The PCR-LE2 series are a unit type configuration.The power unit can be serviced (replaced) by the unit of 1 kVA.
PCR6000LE2 Single phase 6kVA / single-phase 3-wire 4kVA / three-phase 6kVA, AC1 to 300V, 1 to 999.9Hz, DC+/-1.4 to +/-424V, Liner-amp type, accommodate to power supply environment testing
PCR9000LE2 Single phase 9kVA / single-phase 3-wire 6kVA / three-phase 9kVA, AC1 to 300V, 1 to 999.9Hz, DC+/-1.4 to +/-424V, Liner-amp type, accommodate to power supply environment testing
PCR12000LE2 Single phase 12kVA / single-phase 3-wire 8kVA / three-phase 12kVA, AC1 to 300V, 1 to 999.9Hz, DC+/-1.4 to +/-424V, Liner-amp type, accommodate to power supply environment testing
PCR18000LE2 Single phase 18kVA / single-phase 3-wire 12kVA / three-phase 18kVA, AC1 to 300V, 1 to 999.9Hz, DC+/-1.4 to +/-424V, Liner-amp type, accommodate to power supply environment testing
PCR27000LE2 Single phase 27kVA / single-phase 3-wire 18kVA / three-phase 27kVA, AC1 to 300V, 1 to 999.9Hz, DC+/-1.4 to +/-424V, Liner-amp type, accommodate to power supply environment testing
