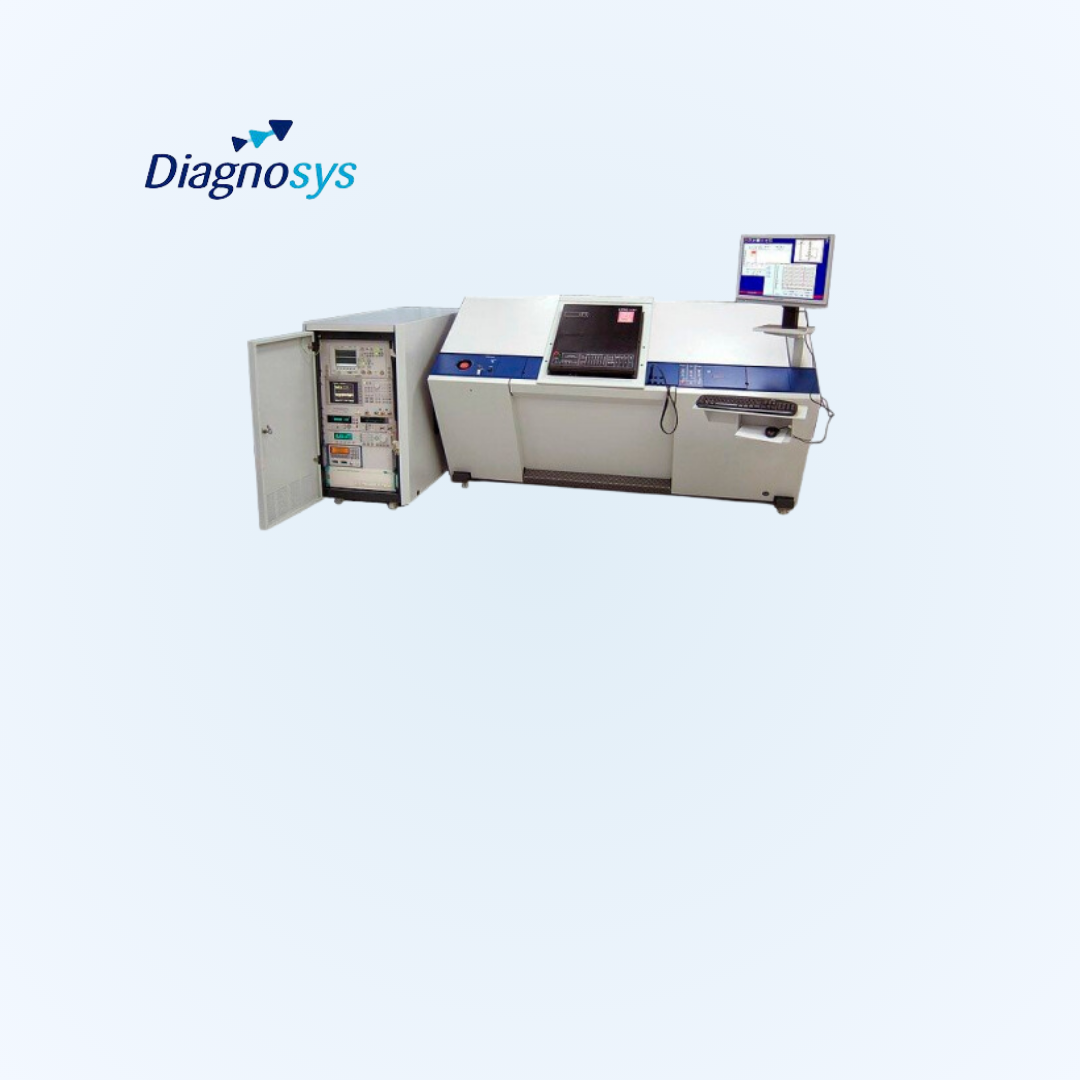

Diagnosys S790 Series2: The ultimate precision test ATE system for PCBs and electronic assemblies

The Diagnosys S790 Series2, with its high technical specification hardware and technology, represents the ultimate high-performance, precision test ATE system. Coupled with CATE™ software for fast effective program production, the S790 Series2 is the ideal solution for addressing todays’ major board test concerns including test program generation, and diagnostic speed and accuracy.

  • High-speed testing : The S790 Series2 can test circuits at 40 MHz pattern rates.
  • Advanced diagnostics : The S790 Series2 uses software intelligence to isolate the root cause of faults.
  • Multiple test techniques : The S790 Series2 can use multiple test technique sequences to detect faults.
  • Programmable test data capture : The S790 Series2 can capture test data and log test results for analysis.
  • Digital electronics : The S790 Series2 has powerful digital electronics and instrumentation facilities.
  • Hybrid test channels : The S790 Series2 has hybrid test channels that provide analog facilities for in-circuit tests.
  • 30 MHz analog switching matrix : The S790 Series2 has a separate, high-performance 30 MHz analog switching matrix.
  • Operator independent : The S790 Series2 provides repeatable, accurate, and reliable results that are operator independent.
  • High precision Automatic Test System (ATE)
  • Circuit card performance
  • Diagnostics capability
  • Extensive library of device functional test routines
  • High data rates with precision timing
  • Comprehensive Automatic Program generator
  • Computer Aided Test Engineering (CATE™) software
