CDN-T8E
CDN-T8E

No image available.

CDN-T8E

150 kHz to 230 MHz

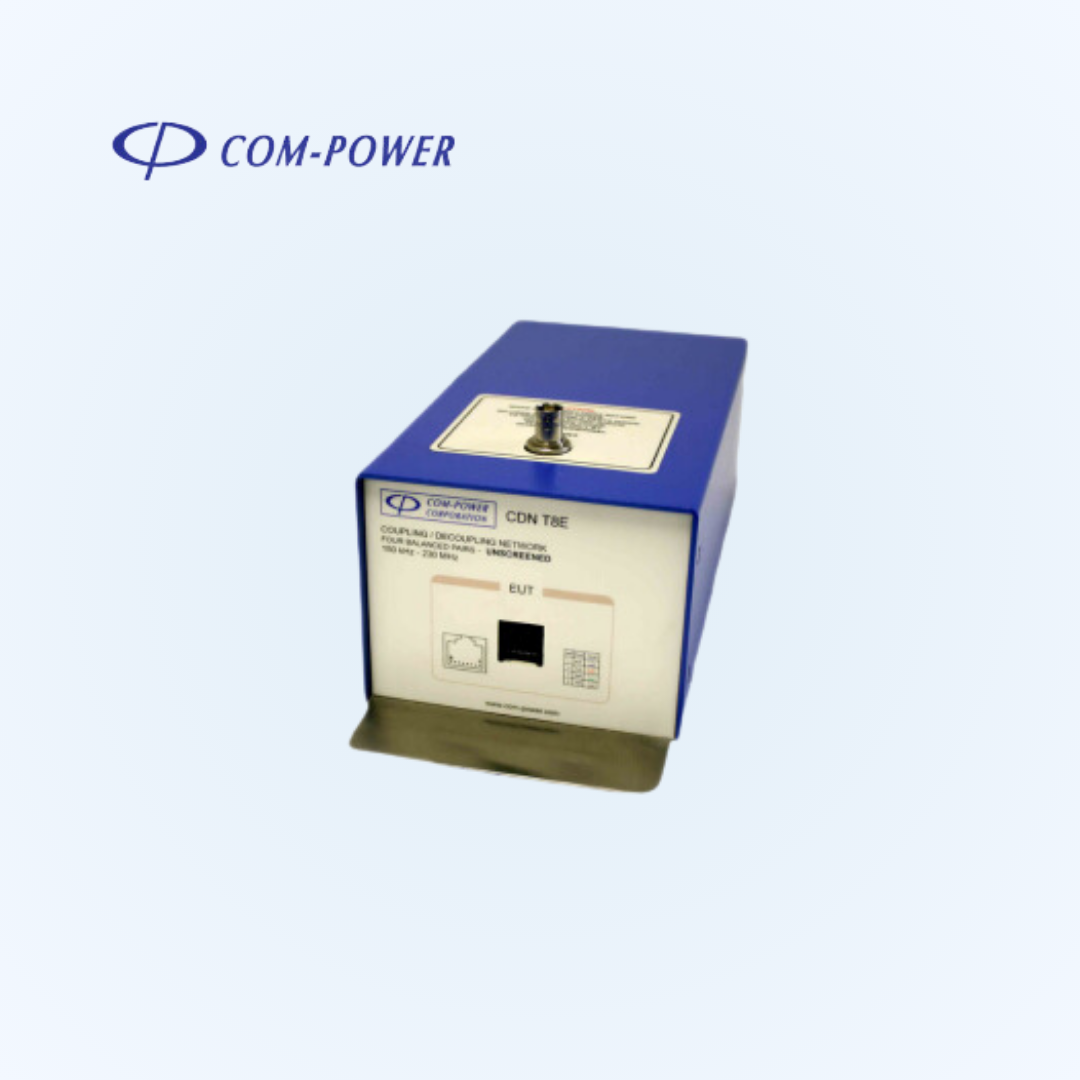

The CDN-T8E can handle up to 1.5 Amps of current. The RF disturbance signal coupling port is female BNC. It can handle up to 40V of RF Input Voltage. The bottom surface of the CDN is not painted for easy and effective grounding. This Coupling Decoupling Network CDN-T8E is designed for testing products that uses four unscreened, balanced pairs for communication such as Ethernet. Com-Power CDN-T8E is individually calibrated to fully comply with the requirements contained in the IEC 61000-4-6 and CISPR 16-1-2. All Com-Power CDNs can be purchased separately or as part of the CIS series conducted immunity test system.

  • Frequency Range 150 kHz to 230 MHz.
  • Designed for IEC / EN 61000-4-6.
  • Four unscreened, balanced pairs.
  • Individual calibration included.
  • Three Year Warranty.
  • Product Name: Coupling Decoupling Network (CDN).
  • Compliant Test Standards: IEC / EN 61000-4-6.
  • Application: Four unscreened, balanced pair.
  • Frequency Range: 150 kHz to 230 MHz.
  • RF Input Voltage: 40 V (Max).
  • RF Input Connector: 50 Ω BNC (Female).
  • Voltage Rating: 124 V AC / 125 V DC (Line to Ground).
  • Current Rating: 1.5 Amps (Max).
  • AE and EUT Connections: RJ 45.
  • Common Mode Impedance: 150 kHz - 26 MHz: 150Ω ± 20Ω, 26 MHz - 80 MHz: 150Ω + 60Ω / – 45Ω, 80 MHz - 230 MHz: 150Ω + 60Ω / – 60Ω.
  • Voltage Division Factor: 9.5 dB +4 / -1.
  • Decoupling of Common Mode Disturbance: 150 KHz ≥ 45dB (RF/AE), 500 KHz ≥ 50dB (RF/AE), 230 MHz ≥ 50dB (RF/AE).
  • Dimensions: 8.5 x 4.5 x 3.5 inches or 21.5 x 11.4 x 8.8 cm.
  • Weight: 5 lbs. or 2.3 kg.
  • Accessories Available from Com-Power for setting test levels and running the test: ADA-T4/T8 shorting adapters, ADA-515-2 150 Ω to 50 Ω adapters, TEP-050 50 Ω Terminator, ATTN-6-100W Power Attenuator, DCU-300-100W Directional Coupler, ASC series Power Amplifiers.
