AC-220
AC-220

No image available.

AC-220

25 MHz to 2 GHz

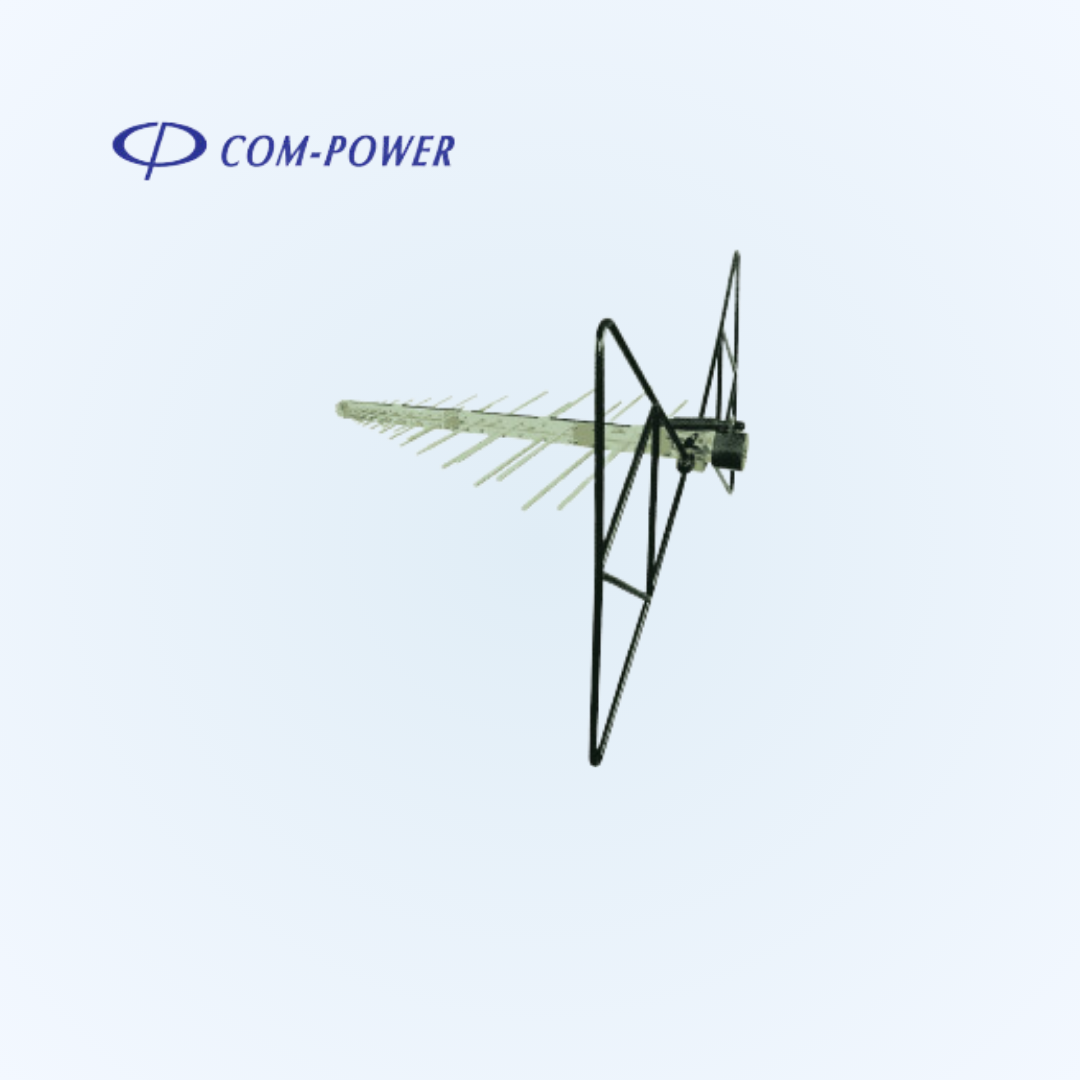

The AC-220 Combilog antenna is for EMC emission and immunity up to 2 GHz.. It combines the electrical properties of two antenna (biconical and Log ). It reduces overall testing time by 20 - 30% due to antenna switching. It is Optimized for emission measurements, but can handle up to 500 Watt CW, making it suitable for most immunity measurements . Each antenna is individually calibrated at 10 meters and the data included the purchase price.

  • Broadband: 20 MHz to 2 GHz.
  • Minimizes antenna switching.
  • Transmit and receive capabilities.
  • Individual calibration.
  • Product Name: CombiLog Antenna.
  • Frequency Range: 20 MHz to 2 GHz (as receive antenna - emissions) / 80 MHz to 2 GHz (as transmit antenna - immunity).
  • Polarization: Linear.
  • Nominal Impedance: 50.
  • Power Handling: (CW) 500 Watts (continuous).
  • Connector: N-type (female).
  • Antenna Factor: 6.2 to 27.7 (average: 16.9) [dB(m-1)].
  • Isotropic Gain: -18.5 to 9.2 (average: 3.0) dBi.
  • VSWR: 1.06 to 3.93 (average: 1.78) :1.
  • Return Loss: 4.5 to 29.8 (average: 12.5) dB.
  • Specifications: FCC, CISPR, EN, ETSI.
  • Dimensions: (H x W x D) 50.
Chart Image
