SPA-900TG

No image available.

No image available.

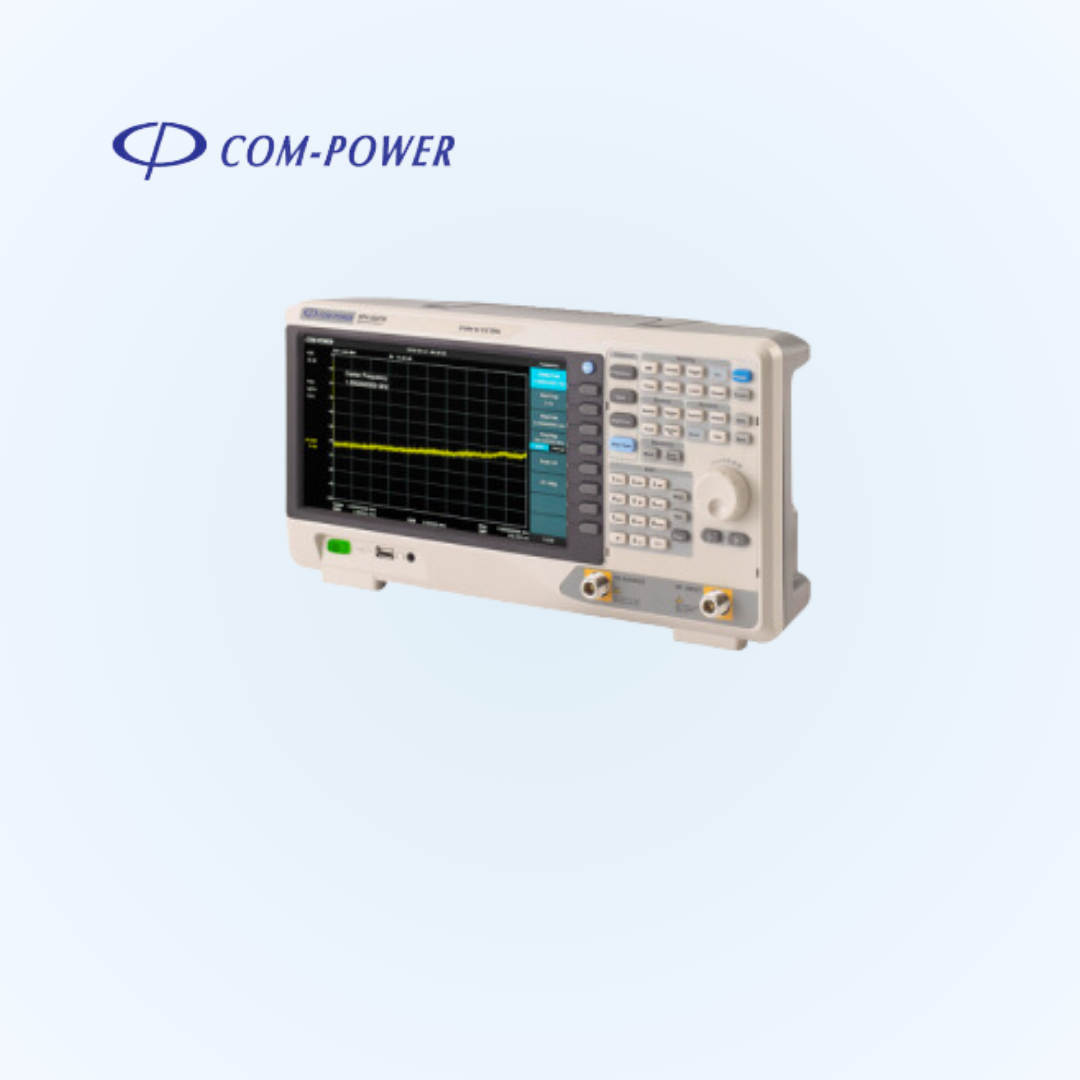

SPA-900TG

9 kHz up to 3.2 GHz

SPA -900 Series Spectrum Analyzers from Com-Power of have a frequency range of 9 kHz up to 3.2 GHz. With their light weight, small size, and friendly user interface, the SPA-900TG offer a bright easy to read display, powerful and reliable automatic measurements, and plenty of powerful features. Applications include broadcast monitoring/evaluation, site surveying, EMI precompliance, research and development, education, production, and maintenance.

  • All-Digital IF Technology.
  • Frequency Range from 9 kHz up to 3.2 GHz.
  • -161 dBm/Hz Displayed Average Noise Level (Typ.).
  • -98 dBc/Hz @10 kHz Offset Phase Noise (1 GHz, Typ.).
  • Total Amplitude Accuracy < 0.7 dB.
  • 1 Hz Minimum Resolution Bandwidth (RBW).
  • Standard Preamplifier.
  • Up to 3.2 GHz Tracking Generator Kit.
  • EMI Pre-compliance Test Kit.
  • 10.1 lnch WVGA(1024x600)Display.
  • Model : SPA-932TG/SPA-921TG.
  • Frequency Range : 9 kHz~3.2 GHz/9 kHz~2.1 GHz.
  • Resolution Bandwidth : 1 Hz~1 MHz, in 1-3-10 sequence/1 Hz~1 MHz, in 1-3-10 sequence.
  • Displayed Average Noise Level : -161 dBm/Hz, Normalize to 1 Hz (typ.)/-161 dBm/Hz, Normalize to 1 Hz (typ.).
  • Phase Noise : &lt; -98 dBc/Hz@1 GHz, 10 kHz offset/&lt; -98 dBc/Hz@1 GHz, 10 kHz offset.
  • Amplitude Precision : &lt; 0.7 dB/&lt; 0.7 dB.
