CDN-M450E
CDN-M450E

No image available.

CDN-M450E

150 kHz to 230 MHz

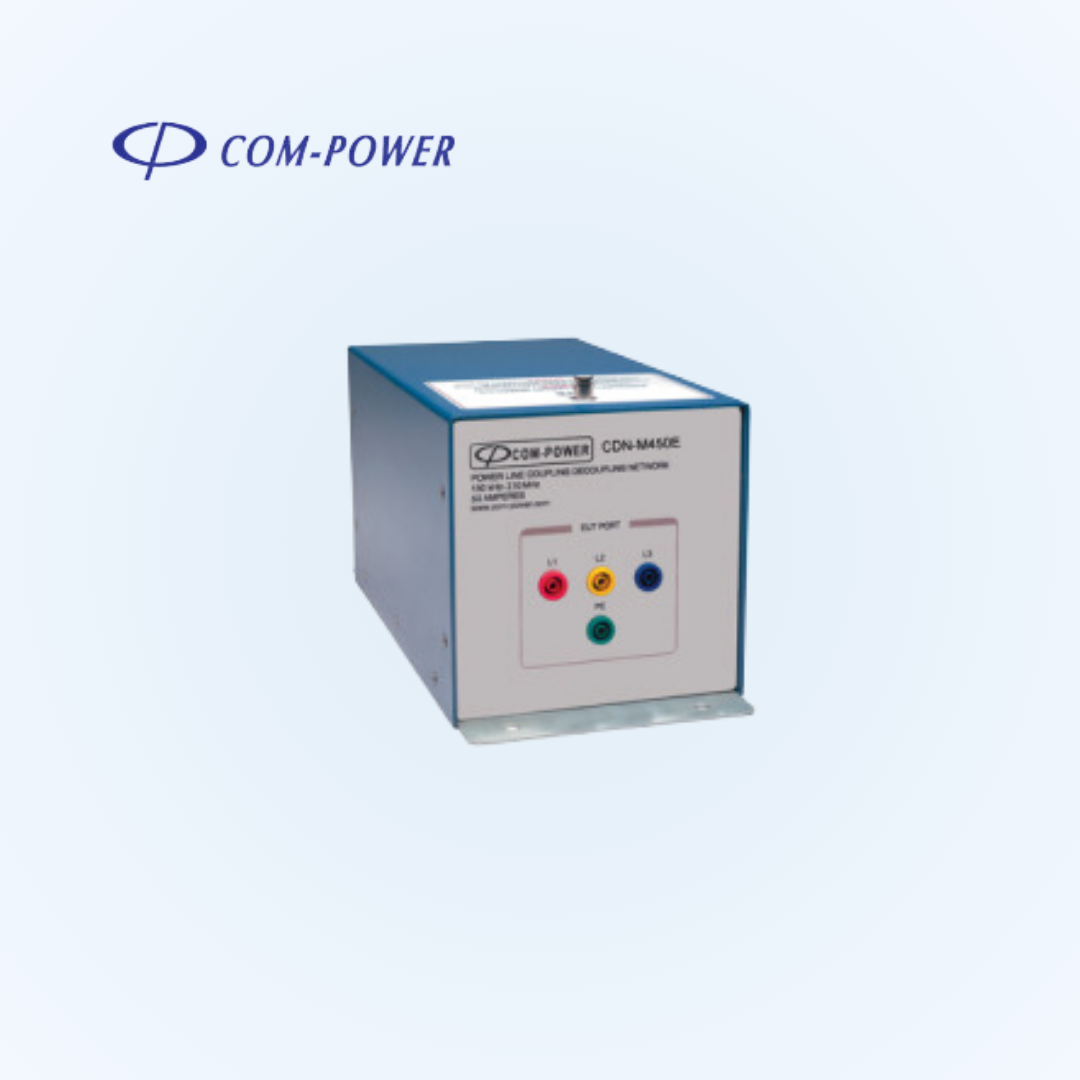

50 Amps CDN for Power Lines Coupling/Decoupling Network CDN-M450E is designed specially for conducted immunity testing per CISPR 16-1-2 and IEC 61000-4-6 of products using four conductor power cable. The noisy signals are coupled to each conductor individually. This Com-Power's CDN-M450E has a current rating of 50 Amps. This Coupling Decoupling Network has the frequency range of 150 kHz - 230 MHz.

  • Frequency Range 150 kHz to 230 MHz.
  • Meets CISPR 16-1-2 and 61000-4-6 requirements.
  • Current handling up to 50 Amps AC.
  • Individual calibration.
  • Three Year Warranty.
  • Product Name: Coupling Decoupling Network (CDN).
  • Compliant Test Standards: IEC / EN 61000-4-6, CISPR 16-1-2.
  • Application: Four conductor power cable.
  • Frequency Range: 150 kHz to 230 MHz.
  • RF Input Voltage: 40 V (Max).
  • RF Input Connector: 50 Ω BNC (Female).
  • Voltage Rating: 250 V AC / 350 V DC (Line to Ground).
  • Current Rating: 50 Amps AC / 35 Amps DC (Max).
  • AE and EUT Connections: 5.2 mm shrouded banana sockets.
  • Common Mode Impedance:150 kHz - 26 MHz: 150Ω ± 20Ω, 26 MHz - 80 MHz: 150Ω + 60Ω / – 45Ω, 80 MHz - 230 MHz: 150Ω + 60Ω / – 60Ω.
  • Voltage Division Factor: 9.5 dB +3 / -0.5.
  • Decoupling of Common Mode Disturbance: ≥40dB (EUT/AE).
  • Dimensions: 7 x 7 x 16.
