CDN-M1100
CDN-M1100

No image available.

CDN-M1100

150 kHz to 230 MHz

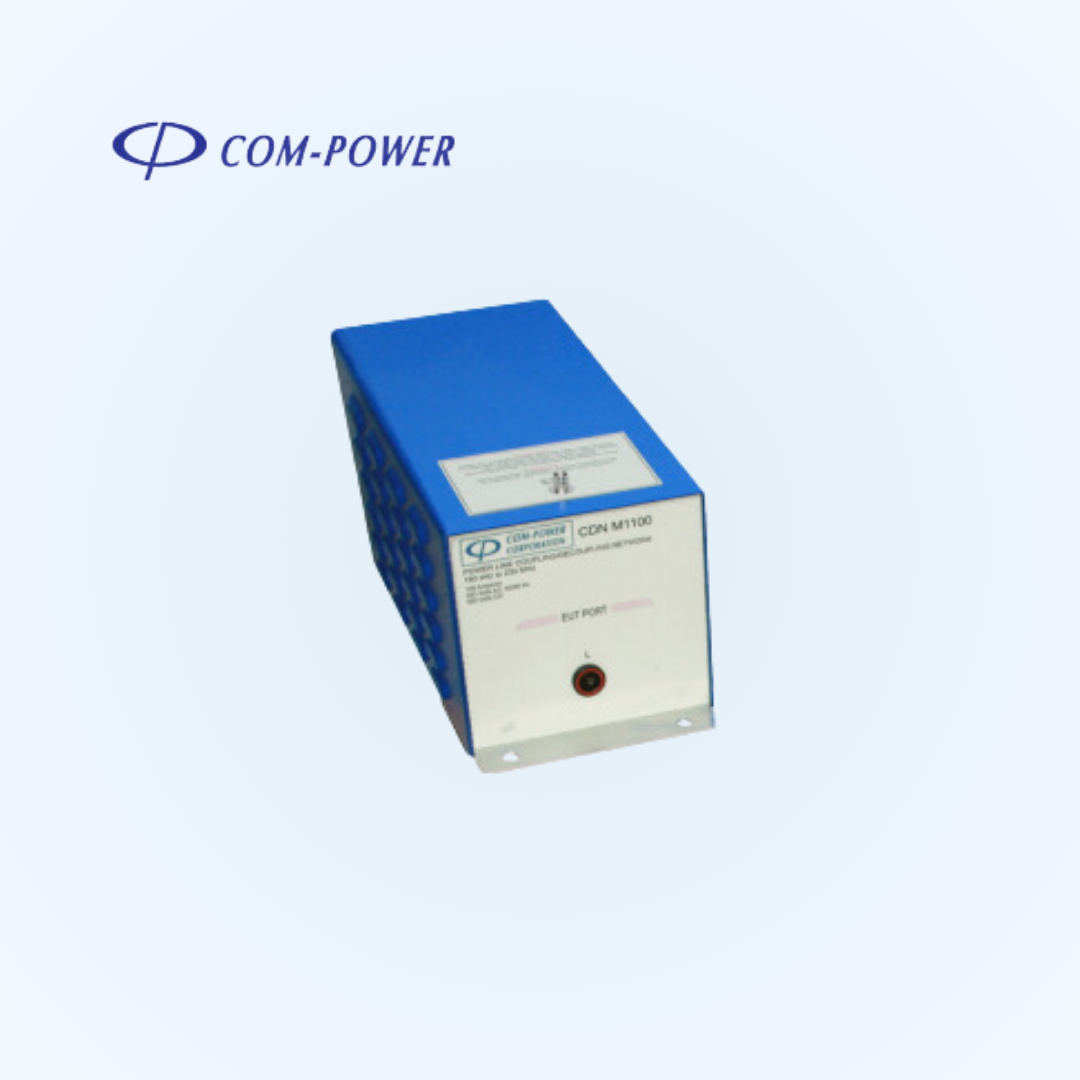

Model: CDN-M1100 is a single line M series Coupling Decoupling Network with a current rating of 100 Amps power cable. This CDN covers the frequency range of 150 kHz - 230 MHz. This Coupling Decoupling Network is recommenced for all power supplies connections. The disturbance signals are coupled to each conductor in the supply lines according to EN 61000-4-6 standard.

  • Frequency Range 150 kHz to 230 MHz.
  • Current Ratings of 25, 50 and 100 Amps.
  • Fully Compliant with CISPR 16-1-2 and IEC 61000-4-6.
  • Three Year Warranty.
  • Product Name: Coupling Decoupling Network (CDN).
  • Compliant Test Standards: IEC / EN 61000-4-6.
  • Application: Single unscreened power cable.
  • Frequency Range: 150 kHz to 230 MHz.
  • RF Input Voltage: 40 V (Max).
  • RF Input Connector: 50 Ω BNC (Female).
  • Voltage Rating: 250 V AC / 350 V DC (Line to Ground).
  • Current Rating: 100 Amps (Max).
  • AE and EUT Connections: Multi-Contact ID/S6AR-N-B4S.
  • Common Mode Impedance: 150 kHz - 26 MHz: 150Ω ± 20Ω, 26 MHz - 80 MHz: 150Ω + 60Ω / – 45Ω, 80 MHz - 230 MHz: 150Ω + 60Ω / – 60Ω.
  • Voltage Division Factor: 9.5 dB +4 / -1.
  • Decoupling Attenuation (Isolation):45-20 dB.
