01-301

01-301

Evaluation Kit

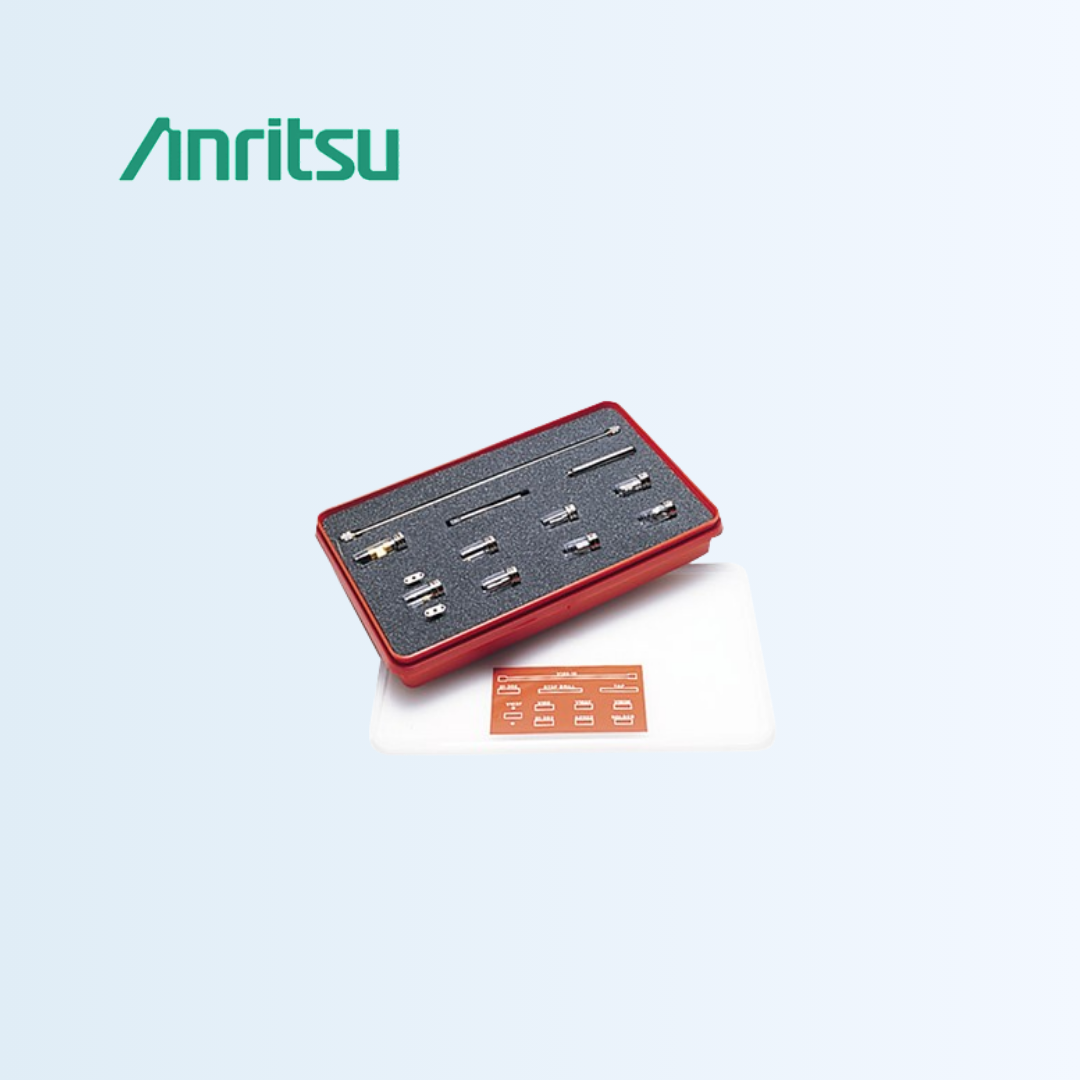

The 01-301 V Connector Evaluation Kit contains: one V120MM -25CM 25 cm Male/Male Cable Assembly two V102F Female Sparkplug Launcher Connector Assemblies two V103F Female Flange Launcher Connector Assemblies two V101M Male In-line Cable Connector Assemblies five V100 Glass Beads one 01-304 Drill and Tap Set one 01-303 Soldering Fixture one V-Connector Test Fixture Includes the solder needed to install beads in housings and connectors on cables. If you are planning to use stress relief contacts, Anritsu model number V110-1, you will also need a 01-308 Drill and Tap Set or a small 0.64 mm (0.025 inch) drill to correctly size the center hole after you use the step drill included in this kit.

  • Excellent Performance up to 65 GHz
  • Low VSWR
  • Superior Reliability
  • Low Loss
  • GHz coaxial components and systems using Anritsu V Connectors
  • It includes one V120MM-25CM male-to-male cable assembly (25 cm length)
  • Includes two V102F female sparkplug launcher connector assemblies
  • Contains two V103F female flange launcher connector assemblies
  • Comes with two V101M male in-line cable connector assemblies
