01-306

01-306

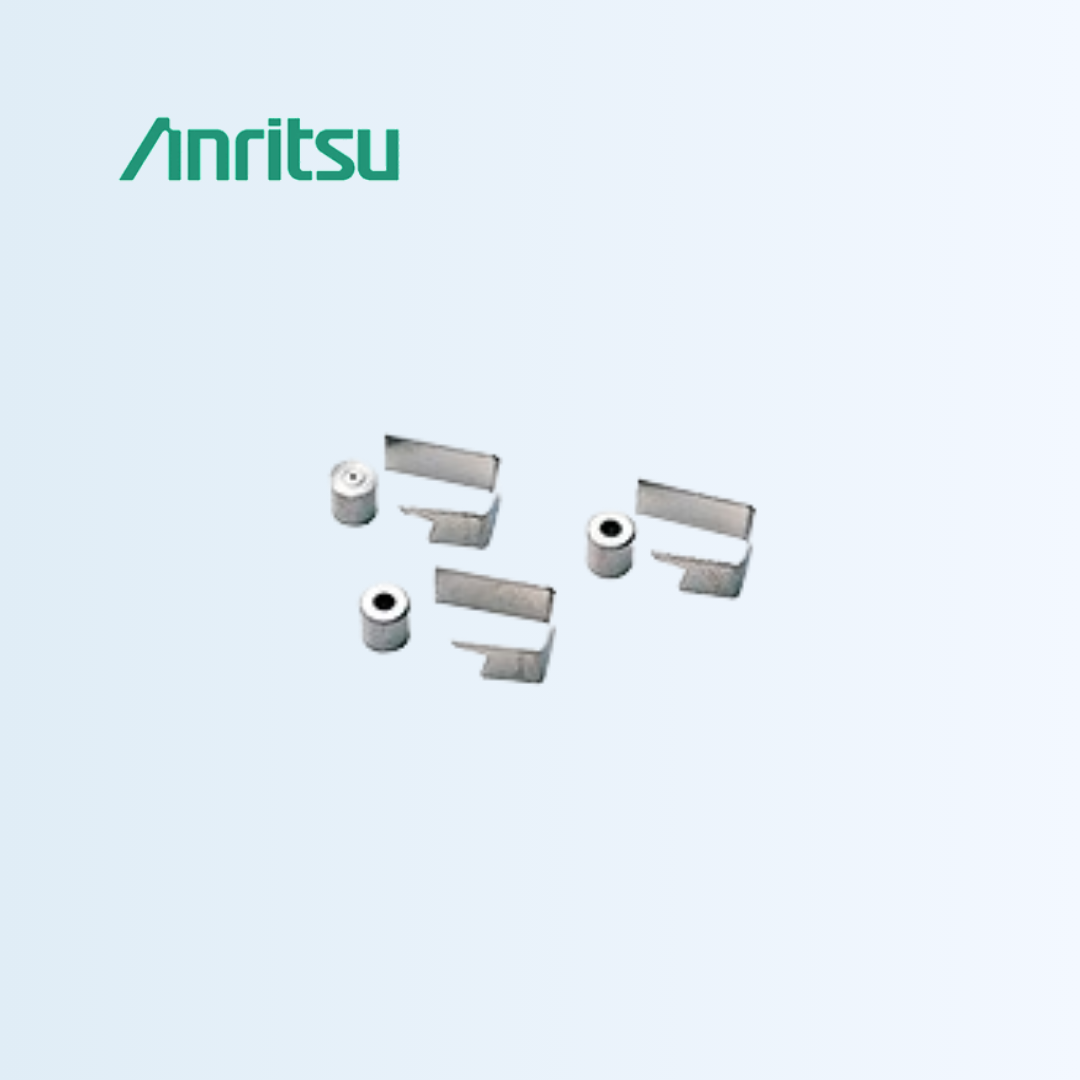

Soldering Fixture for V100 Glass Beads

When installing the V103F or V103M flange-mount connectors, use the 01-306 Soldering Fixture to hold the V100 or V100B bead in place while the bead is being soldered into your housing. The tool consists of two parts, a bead holding spring and a bead centering tool. Each 01-306 package includes 5 sets of fixtures. While installing the V102F or the V102M connectors, the correct tool to use is the 01-303.

  • Reusable
  • Ensures that the bead is properly centered and seated
  • Simplifies bead installation
  • The fixture consists of two components: a bead-holding spring and a bead-centering tool
  • Each package includes five sets of fixtures
  • The tool ensures that the bead remains properly centered and seated throughout the soldering process
  • It simplifies bead installation and enhances precision with flange mount connectors
