01-308

01-308

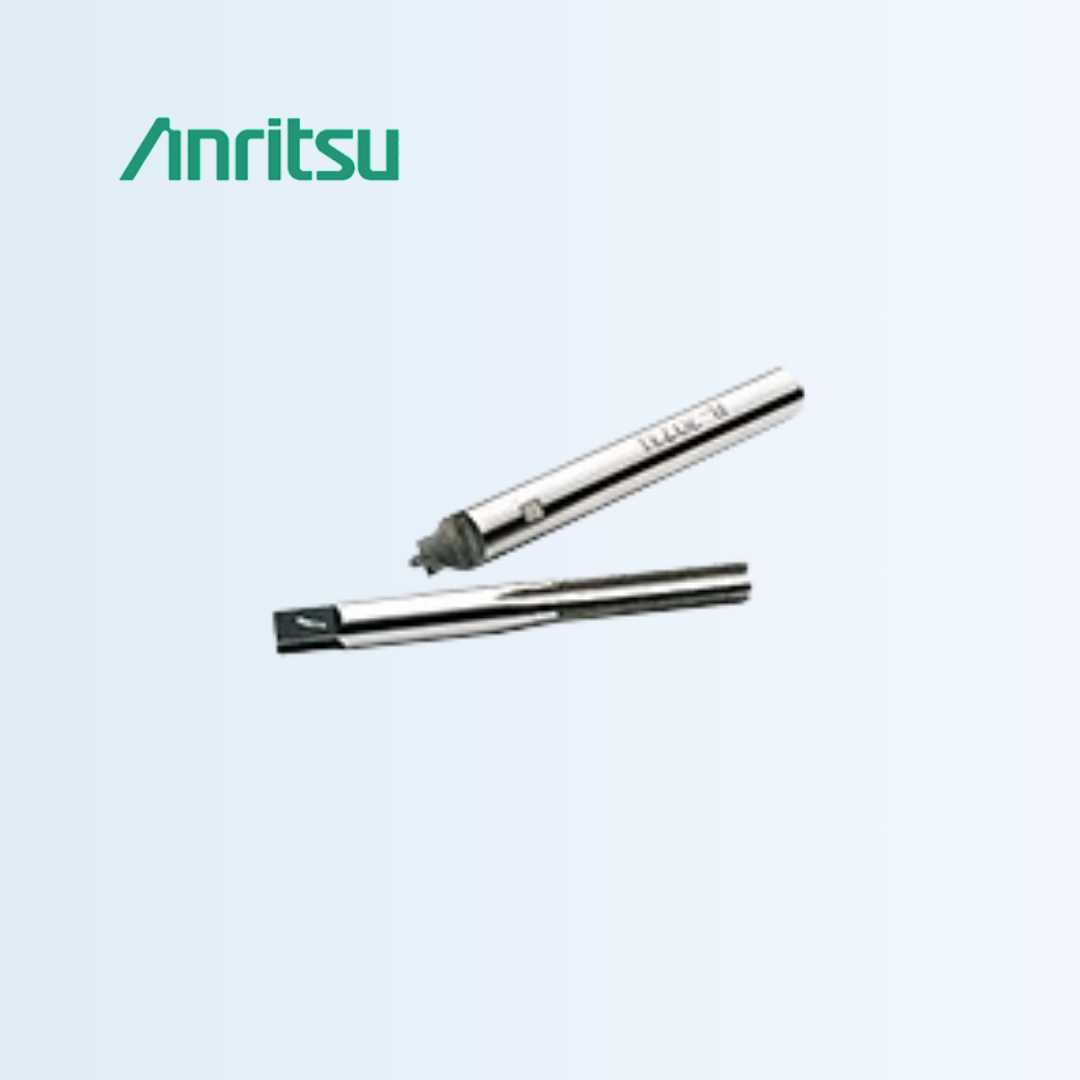

Drill and Tap Set

This drill and tap set is used to precisely machine the concentric holes needed for mounting V Connectors in housings.

  • Allows all concentric holes to be drilled simultaneously using a mill.
  • Intended for use on soft metals such as aluminum or brass.
  • Also can be used on stainless steel at very low feed rates.
  • Center hole is sized to maintain proper characteristic impedance when sliding contacts are used.
  • f stress relief contacts are not used, the alternative kit is 01-304
  • The kit includes a drill (part number 55300) and a tap (part number 783-569)
  • It allows all concentric holes to be drilled simultaneously using a mill
  • It is intended for use on soft metals such as aluminum and brass, and can also be used on stainless steel at very low feed rates
