01-309

01-309

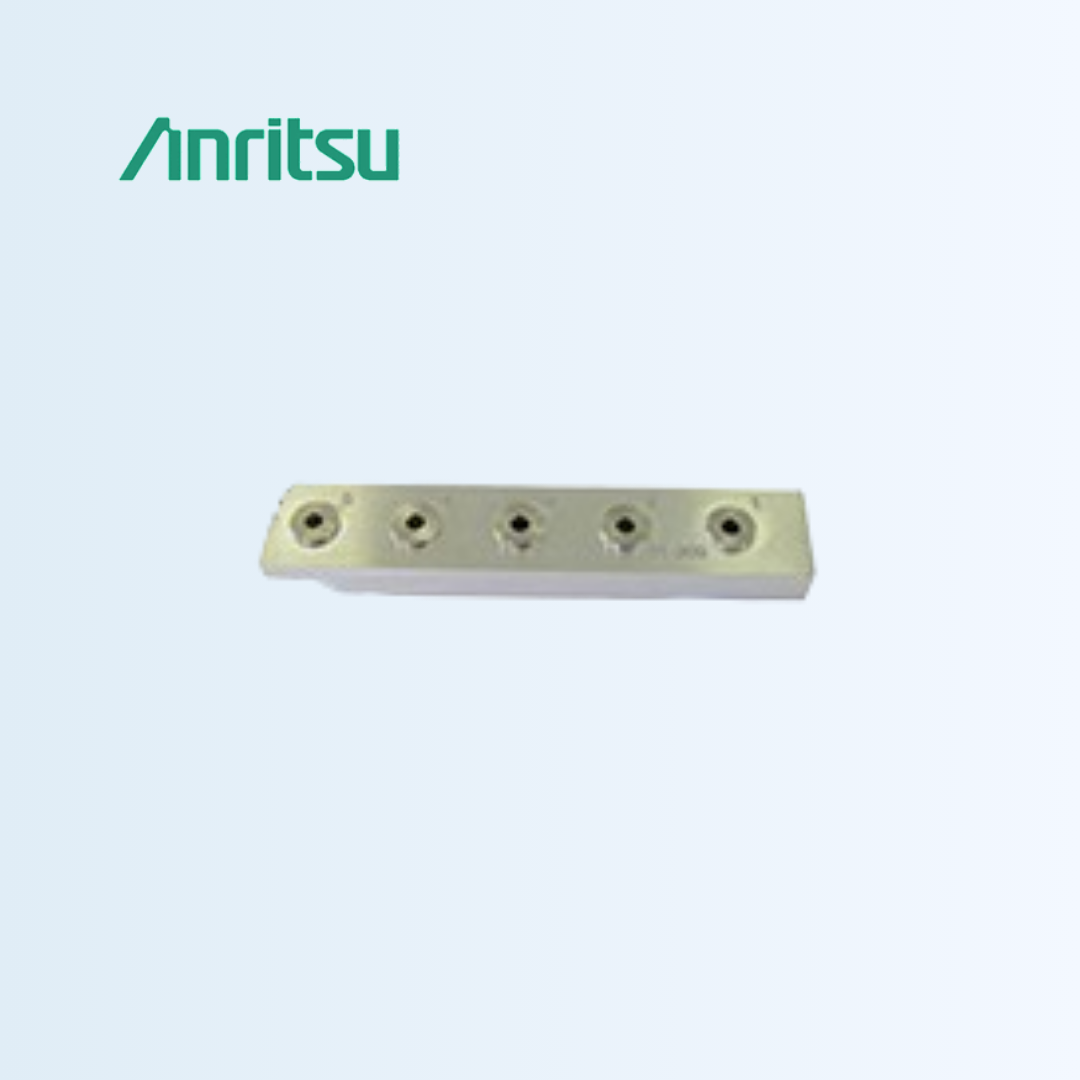

V Connector® Cable Assembling Fixture Kit for 0.085 semi-rigid cables

The 01-309 is a tool designed to make it easy to correctly cut the ends of the V085 semi-rigid coaxial cable straight, and trim the ends to the proper lengths.

  • Assures that the cable is properly prepared.
  • Eliminates the need to separately measure and mark each cable end.
  • Model 01-309
  • Frequency DC to 110 GHz
  • 50 Ω impedance
  • Insertion Loss: ~0.70 dB (typical)
  • Return Loss: Better than –16 dB up to 110 GHz
  • Insulation Resistance: >1200 MΩ
  • Contact Resistance (center conductor): ~6 mΩ
  • Power Handling: Up to 6 W (continuous wave)
