The W1 Connector launcher family includes both Male and Female screw-in type connectors.

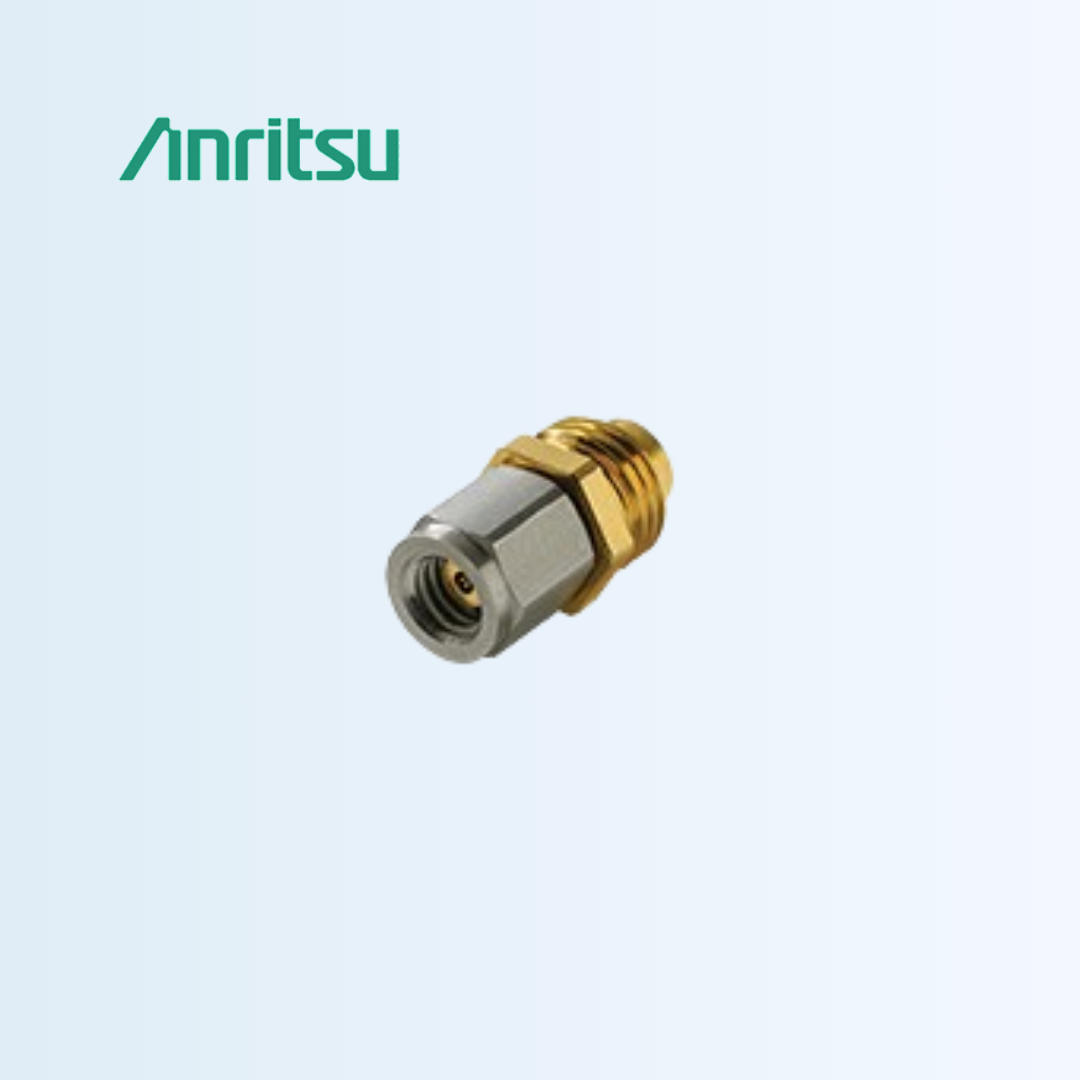

Model W1-105M
Excellent RF Performance DC to 110 GHz
50 Ohm Impedance
Low VSWR
Standard 1 mm Interface
Accurate Testing Capability
Storage temperature range is –54 °C to +125 °C.
The outer and center conductors are made of beryllium copper plated with gold over nickel.
The center conductor is supported by a low-loss high-temperature plastic bead on one end and a Teflon bead on the other for concentricity and rigidity.
The coupling nut is made of passivated stainless steel.
Uses a 1.00 mm W1 interface in accordance with IEEE Std-287.
