W1-105F

W1-105F

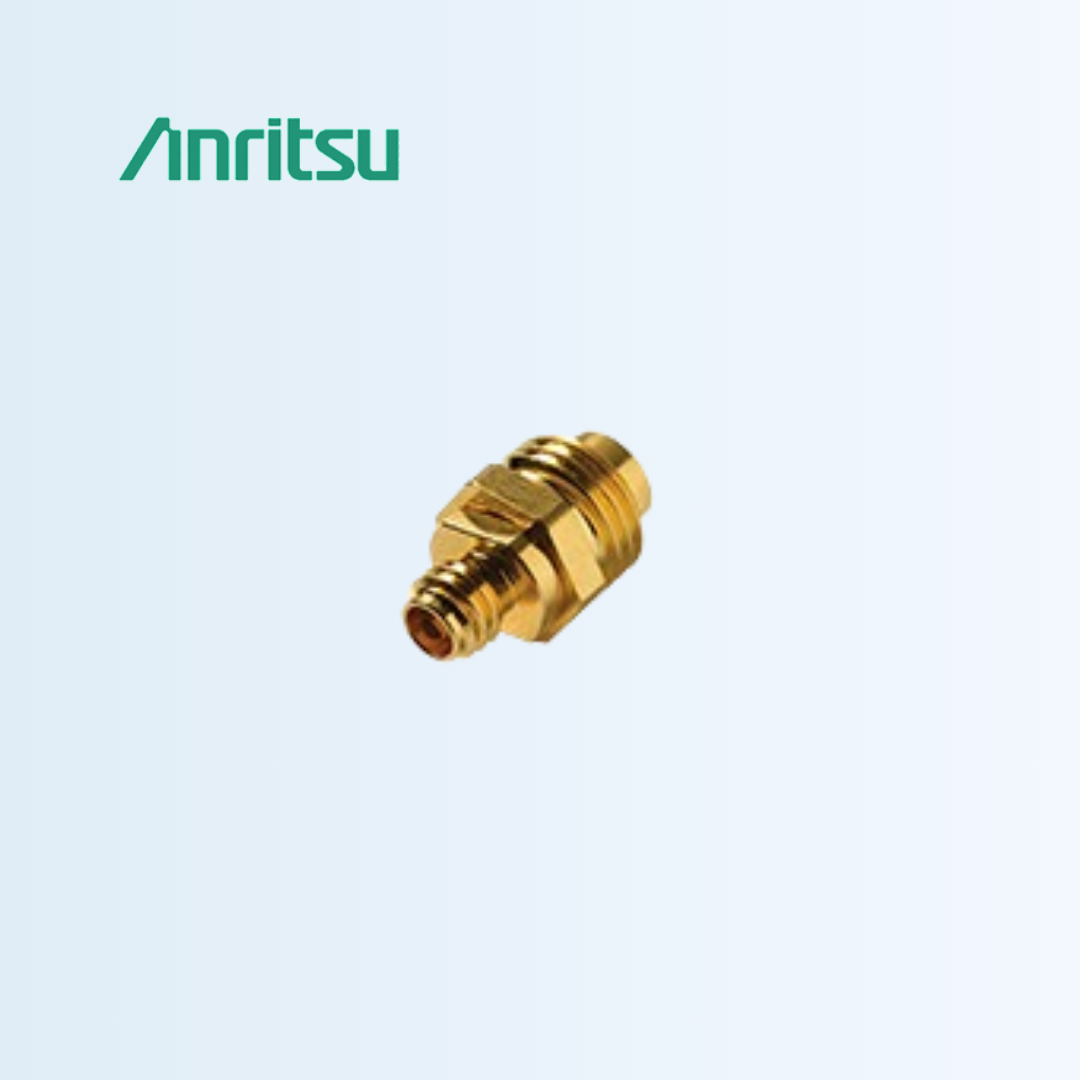

W1 Female Connector, Sparkplug Launcher

The W1 Connector launcher family includes both Male (W1-105M) and Female screw-in type connectors.

  • Model W1-105F
  • Excellent RF Performance DC to 110 GHz
  • 50 Ohm Impedance
  • Low VSWR
  • Standard 1 mm Interface
  • Accurate Testing Capability
  • Storage temperature range is –54 °C to +125 °C.
  • The outer conductor is beryllium copper plated with gold over nickel.
  • The center conductor is beryllium copper plated with gold over nickel, supported by a low-loss high-temperature plastic bead at one end and a Teflon bead at the other end for concentricity and rigidity.
  • Uses a 1.00 mm W1 interface in accordance with IEEE Std-287.
