W1-103F

W1-103F

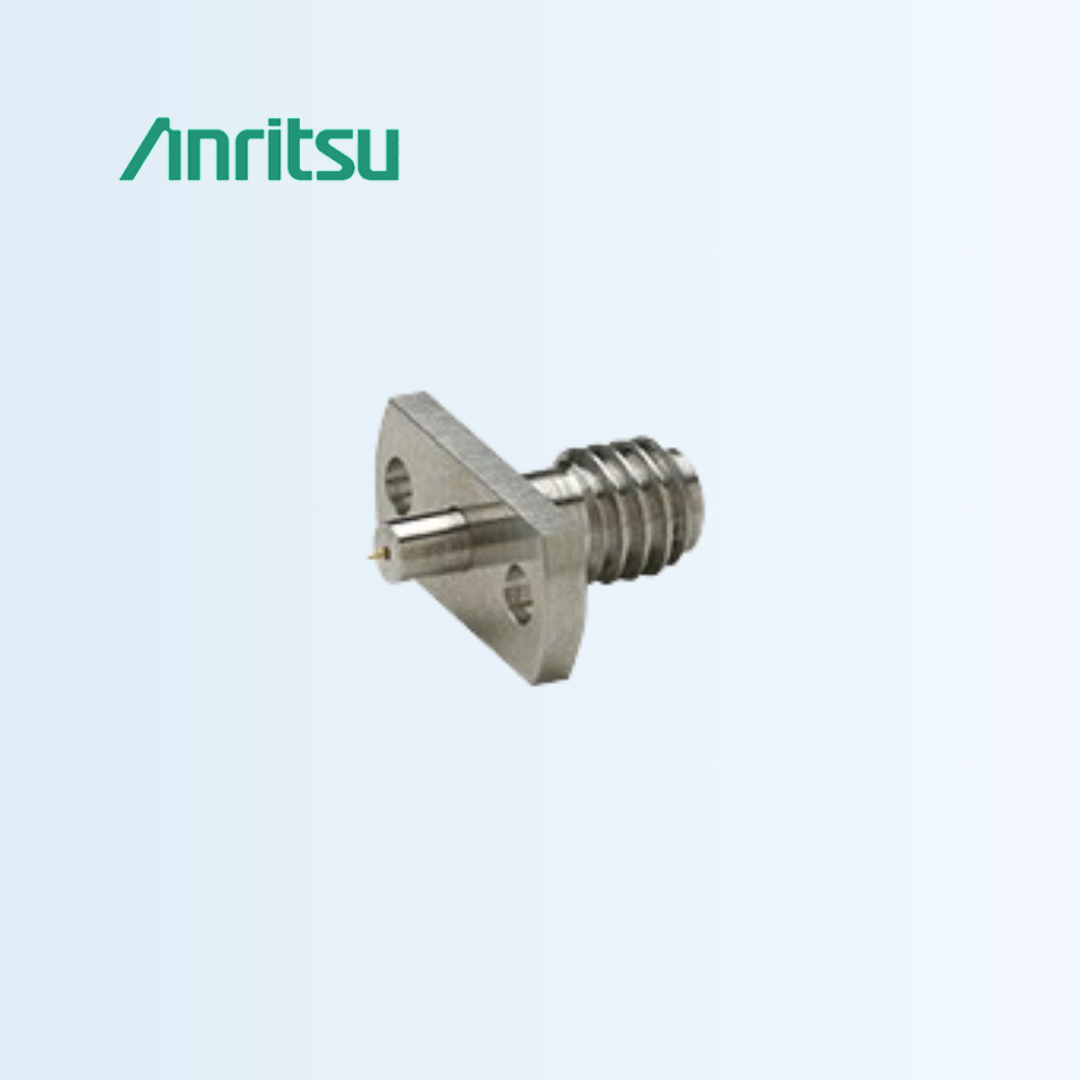

W1 Female Mounting Connector, Flange Mount

The W1 two-hole Flange female W1 connector center conductor is supported by a PPO bead on the front end and by a Teflon bead on the back end.

  • Model W1-103F
  • Excellent RF Performance DC to 110 GHz
  • 50 ohm Impedance
  • Low VSWR
  • Standard 1 mm Interface
  • Accurate Testing Capability
  • Connector Type: W1 (1 mm) female flange-mount connector with two mounting holes for panel or housing installation
  • Frequency Range: DC to 110 GHz, enabling high-frequency and millimeter-wave applications
  • Impedance: 50 Ω, optimized for precision RF performance
  • Center Conductor Support: Front end supported by Polyphenylene Oxide (PPO) bead; back end supported by Teflon bead for mechanical integrity and signal stability
