W1-102M

W1-102M

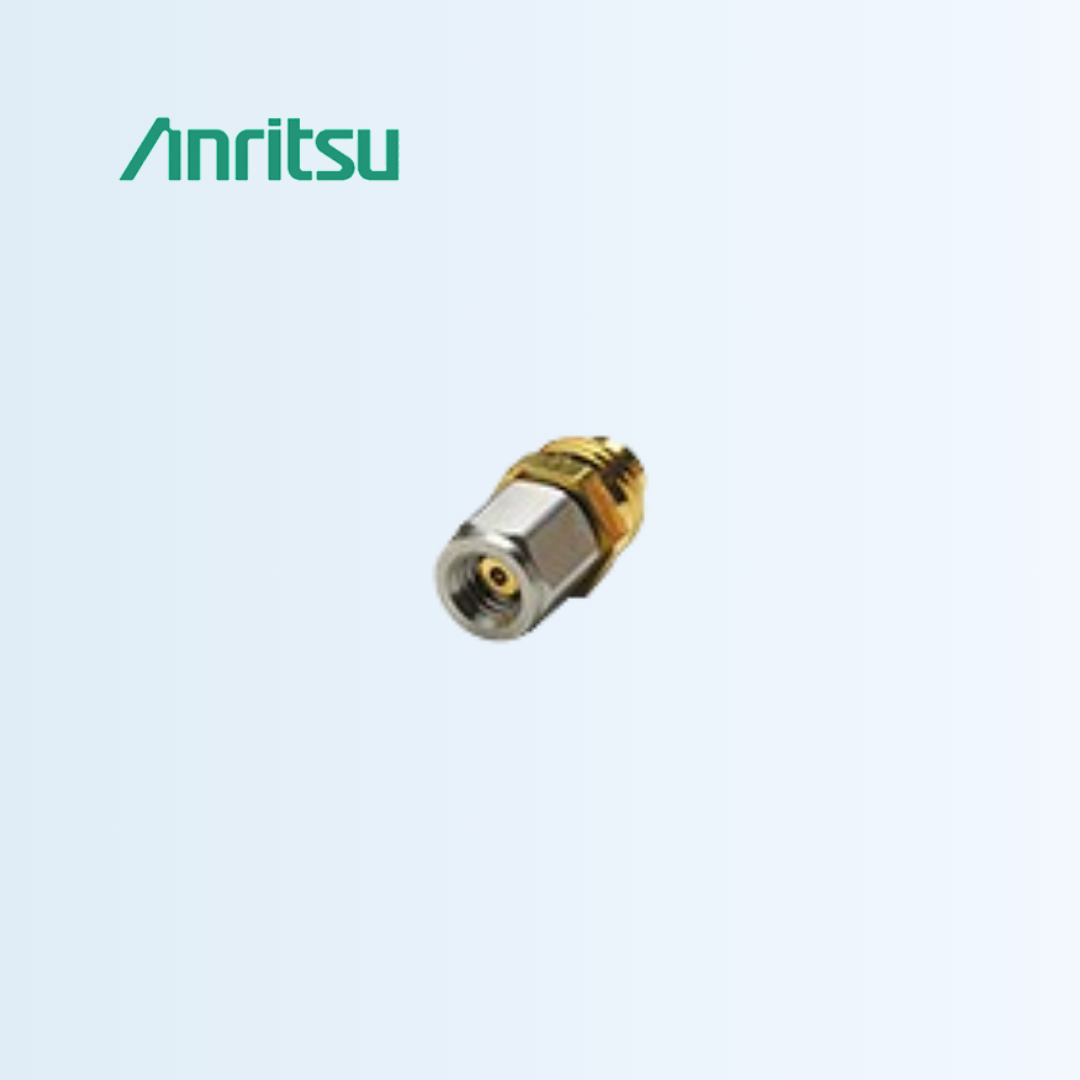

W1 Male Connector

The W1 Connector has an air dielectric interface similar to K and V connectors.

  • Model W1-102M
  • Excellent RF Performance DC to 110 GHz
  • 50 Ohm Impedance
  • Low VSWR
  • Standard 1 mm Interface
  • Accurate Testing Capability
  • Connector Type: Hermetic male (plug) sparkplug connector
  • Frequency Range: DC to 110 GHz – ideal for millimeter-wave (mmWave) applications
  • Impedance: 50 Ω, with low VSWR and return loss typically –16 dB up to 110 GHz
  • Interface: 1 mm air dielectric interface, compatible with IEEE Std 287
