W047-2

W047-2

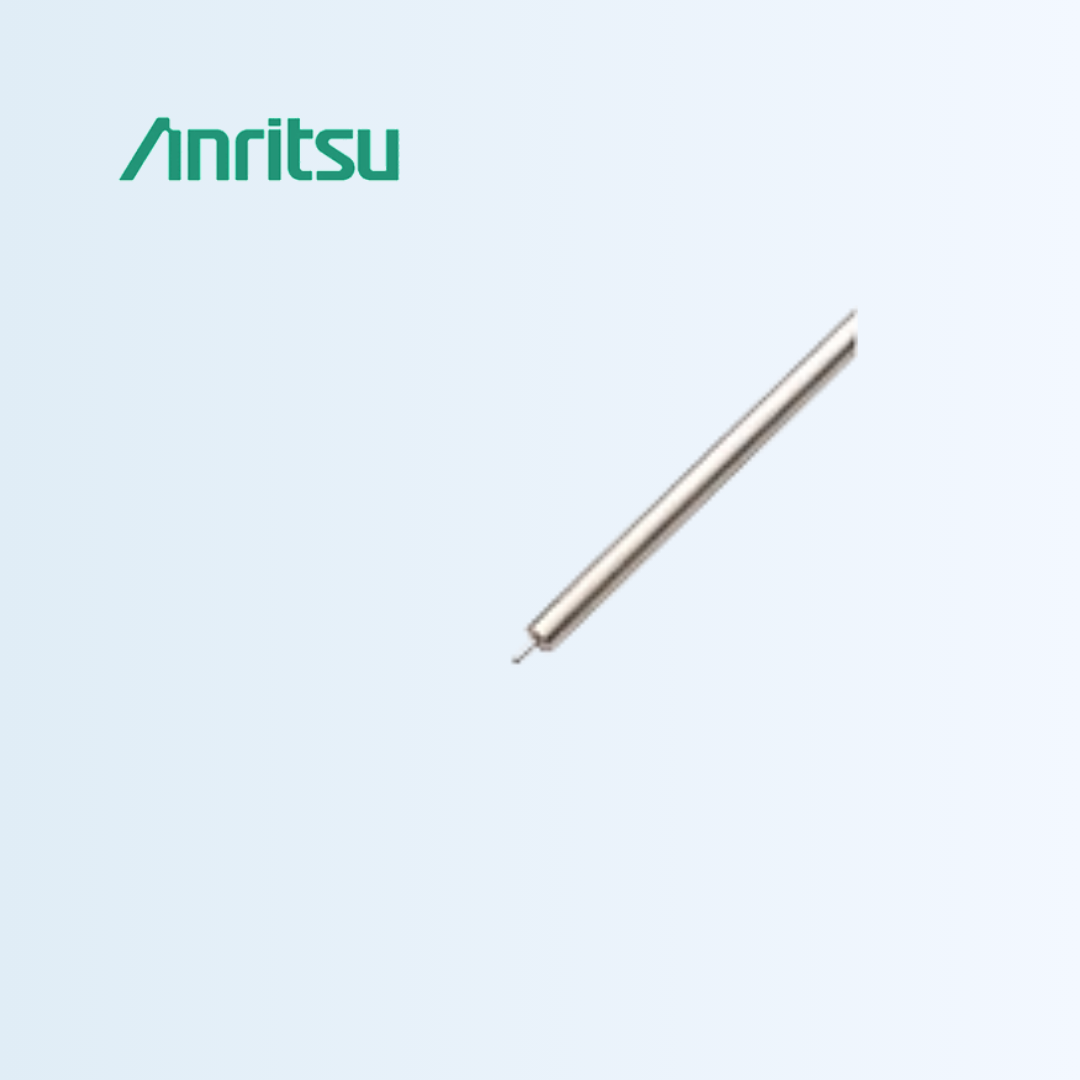

Semi-Rigid Coaxial Cable

W047-2 is a 5 foot (1.52 m) length of 0.047 inch (1.19 mm) semi-rigid cable for use with the W1-101F and W1-101M connectors.

  • Operation DC to 110 GHz
  • Microporus dielectric
  • Velocity factor 77%
  • Type: Semi-rigid coaxial cable compatible with W1-101 series connectors (male or female)
  • Length: Approximately 5 feet (1.52 meters)
  • External Diameter: 0.047 inches (1.19 mm)
  • Impedance: 50 Ω nominal
  • Frequency Range: DC up to 110 GHz, suitable for high-frequency RF/microwave applications
  • Insertion Loss: Approximately 0.70 dB (typical)
