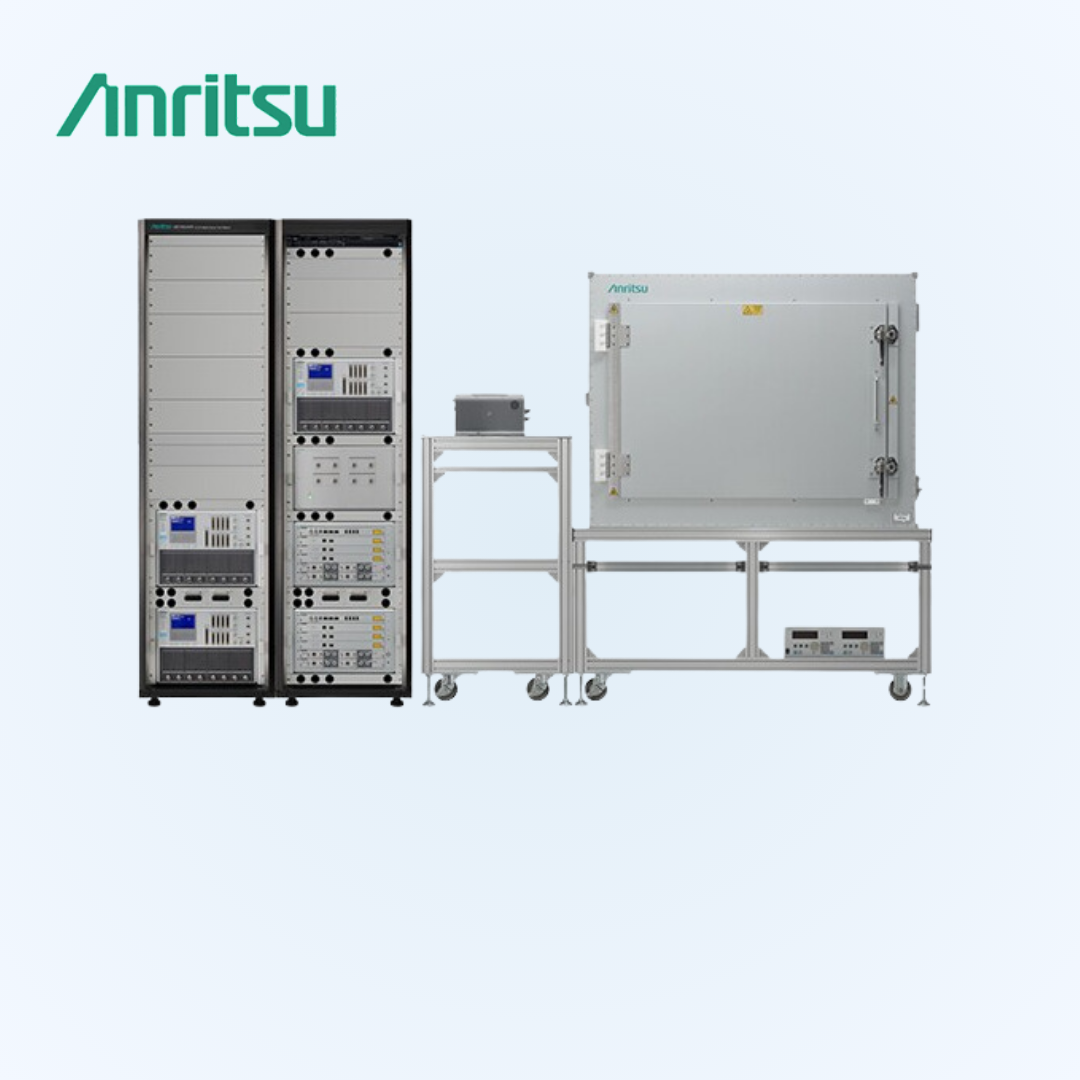

ME7834NR

5G NR Mobile Device Test Platform

The ME7834NR is the test platform for 3GPP based Protocol Conformance Tests (PCT) and Carrier Acceptance Testing (CAT) of mobile devices incorporating Multiple Radio Access Technologies (RAT). The ME7834NR supports 5G New Radio (NR) Technology in both Standalone and Non-Standalone mode, in addition to LTE, LTE-Advanced (LTE-A), LTE-A Pro, and W-CDMA.

All-in-One 5G NR Support for Protocol Conformance Tests and Carrier Acceptance Test.
Supports 3GPP defined bands from Sub-6GHz to mm-Wave.
Upgradeable your current ME7834 system for 5G.

Downlink output accuracy : ±3 dB (after system calibration implemented at MN8142B antenna port).
Downlink frequency range : 450 MHz to 2600 MHz: MD8430A signals (Option required from 3000 MHz to 6000 MHz) / 450 MHz to 2550 MHz: MT8000A signals / 450 MHz to 6000 MHz: ZVA40 signals.
Uplink measurement accuracy : ±3 dB (after system calibration implemented at MN8142B antenna port).
Uplink frequency range : 450 MHz to 2600 MHz: MD8430A signals (Option required from 3000 MHz to 6000 MHz) / 450 MHz to 2550 MHz: MT8000A signals / 450 MHz to 6000 MHz: ZVA40 signals.
Power Supply : 100 Vac to 120 Vac | 200 Vac to 240 Vac (±15%, 10%, Except 250 V max).
Power consumption : ≤5200 VA.
Dimensions (W × H × D) :1149 mm × 1980 mm × 797 mm (2 racks, excluding projection).
Mass : 650 kg (2 racks, excluding projection).
Operating Temperature : +15°C to +35°C (operating, without rack)
