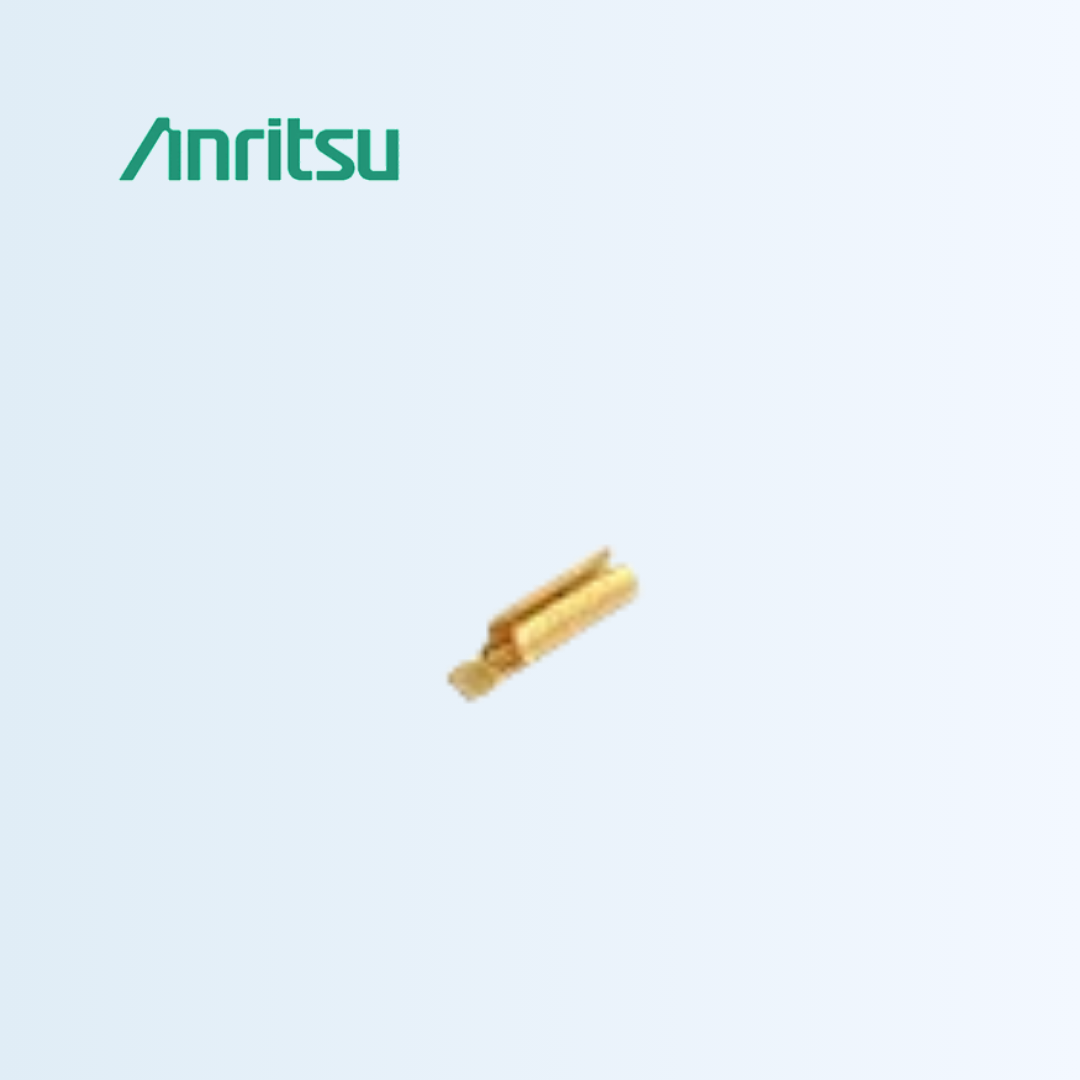

V110-1-R

V110-1-R

Stress Relief Contact

V110-1-R is designed to connect to a 0.15 mm microstrip trace on Alumina. The installation note for the V110-1 shows how to make connections using parallel-gap welding, wire bonding or soldering.

  • Provide stress relief to protect circuits from temperature variations, shock and vibration
  • Provides excellent quality microwave connection to a 0.24 mm pin without the need for soldering
  • Designed to work with V connectors up to 65 GHz
  • Model V110‑1‑R
  • Intended Use: Microstrip or coplanar waveguide circuits with trace width ≥ 0.15 mm on alumina or Duroid substrates
  • Frequency Range: DC to 65 GHz – compatible with V Connector system performance
  • RoHS Compliance: Yes
  • Environmental & Reliability: Complies with MIL‑STD‑202F (thermal shock, humidity, salt spray, vibration, shock)
