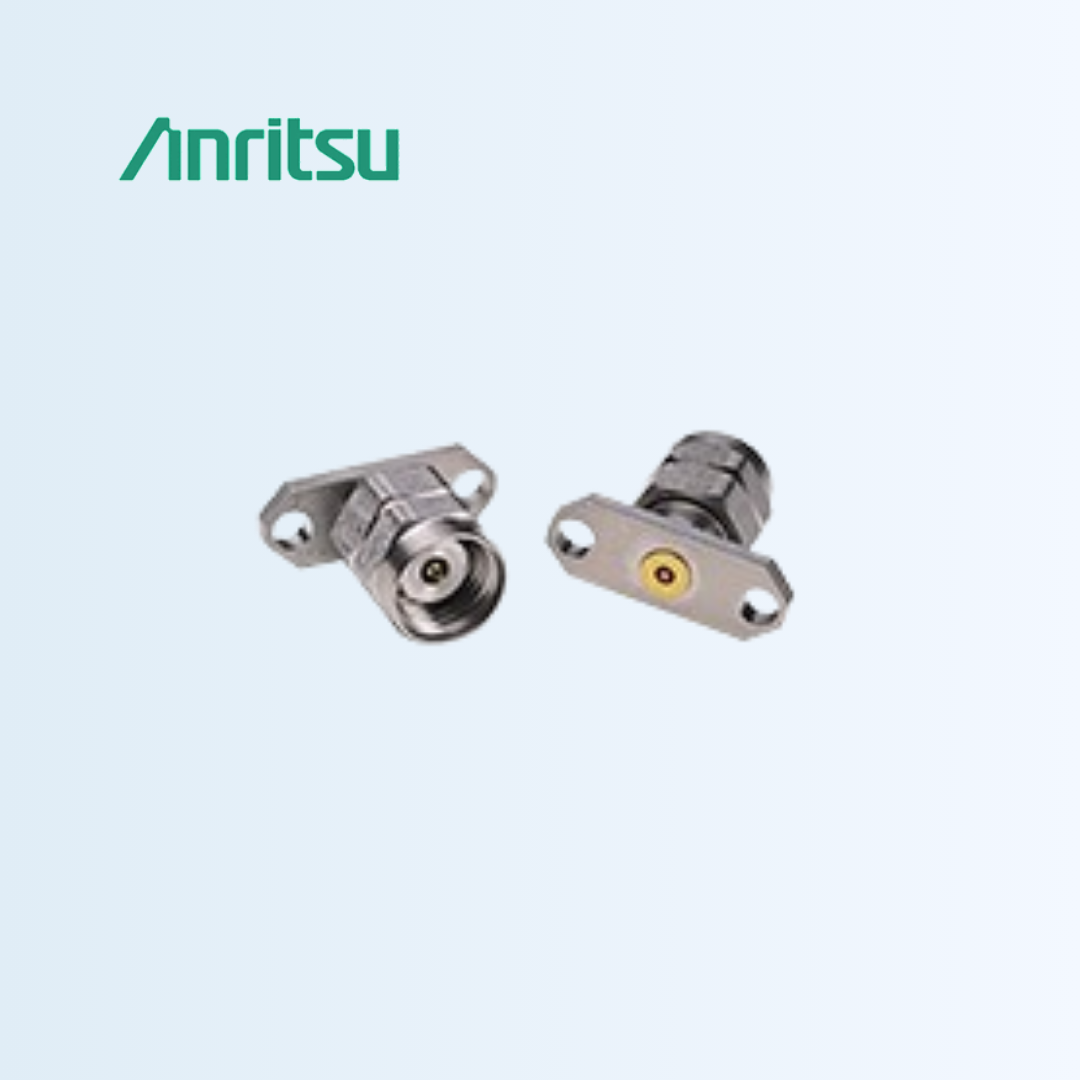

V103M-R

V Male Flange Launcher

The V103M-R is RoHS compliant. It contains less than the Maximum Concentration Values (MCVs) for Lead, Mercury, Cadmium, Hexavalent Chromium, PBB and PBDE per EU directive 2002/95/EC. The following RoHS exemption applies: Lead as an alloying element in copper containing up to 4% (40000PPM) lead by weight.

Wideband RF performance: Supports clean, mode-free signal transmission up to 65 GHz with very low VSWR and insertion loss.
Precision flange mounting: Two-hole design ensures stable mechanical alignment; flange tolerances must meet concentricity specs (~±0.038 mm).
Solderless microstrip launch interface: Simplifies installation while minimizing signal contamination.

Model V103M-R
Connectors V(m) flange launcher connector
Two mounting holes
Excellent Performance up to 65 GHz
Low VSWR
Low insertion loss
Superior Reliability
Compatibility with 2.4 mm
Complete Testability on Existing Network Analyzers
