V103M-012

V103M-012

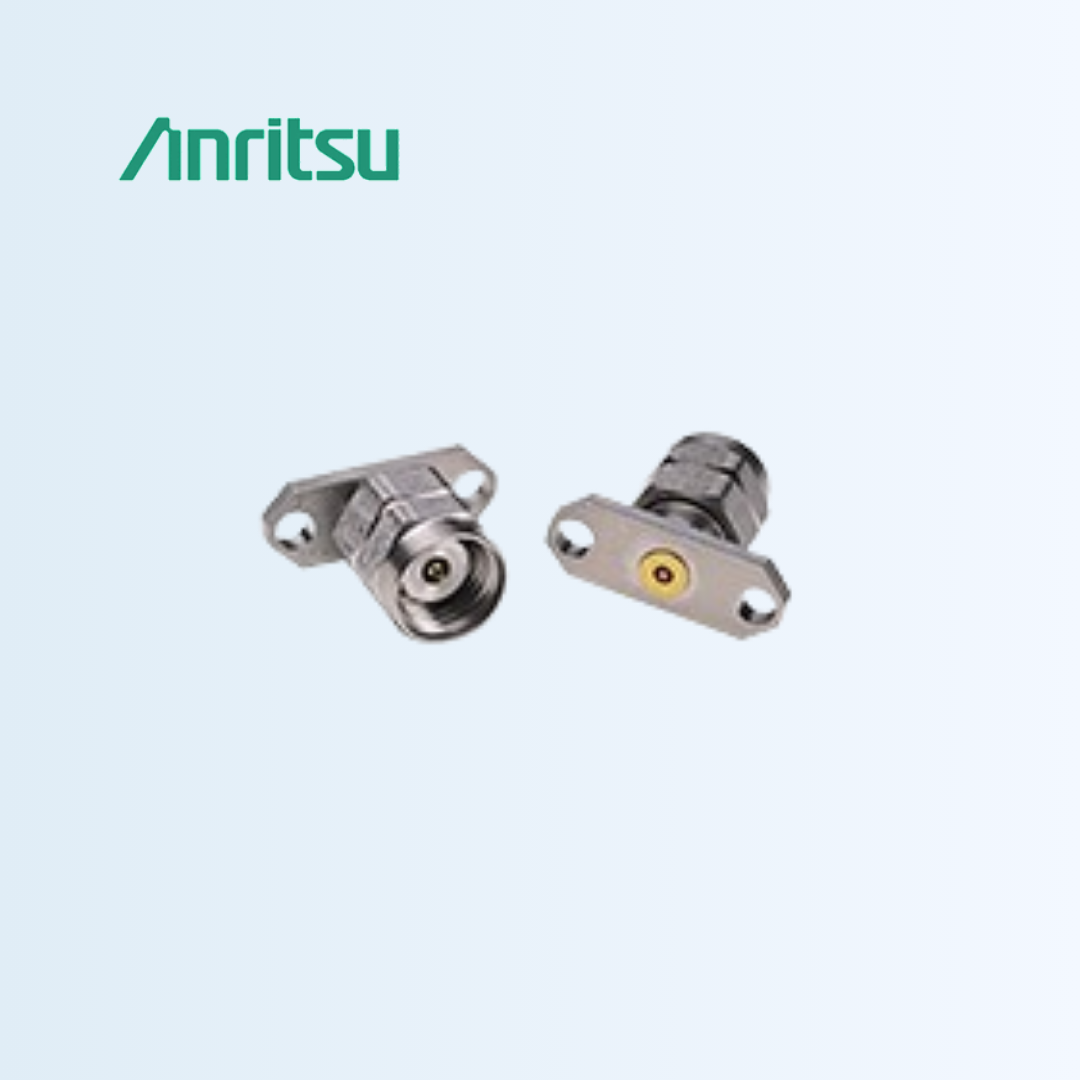

V Male Flange Launcher

The V103M-012 is identical to V103M, however, this connector can be used with a 0.30 mm glass bead pin.

  • Exceptional RF Performance: Supports up to 65โ€ฏGHz bandwidth with low VSWR and excellent return loss.
  • Stable Flange-Mounted Design: Two-screw mounting ensures precise alignment and mechanical stability.
  • Flange parallelism and hole concentricity (ยฑ0.038 mm) are critical.
  • Solderless Integration: Enables easy microstrip connection via glass-bead termination, reducing signal contamination and assembly complexity.
  • High Reliability: Gold-plated BeCu ensures durable and low-resistance mating performance over many cycles.
  • Tooling Support: Compatible with Anritsu V Connector toolingโ€”01โ€‘306 bead fixture, 01โ€‘304/01โ€‘308 drill & tap kits, and 01โ€‘105A torque kit for proper installation.
  • Model V103M-012
  • Connectors V(m) flange launcher
  • Two mounting holes for 0.30 mm glass bead pin
  • Excellent Performance up to 65 GHz
  • Low VSWR
  • Low insertion loss
  • Superior Reliability
  • Compatibility with 2.4 mm
  • Complete Testability on Existing Network Analyzers
