V103F-R

V103F-R

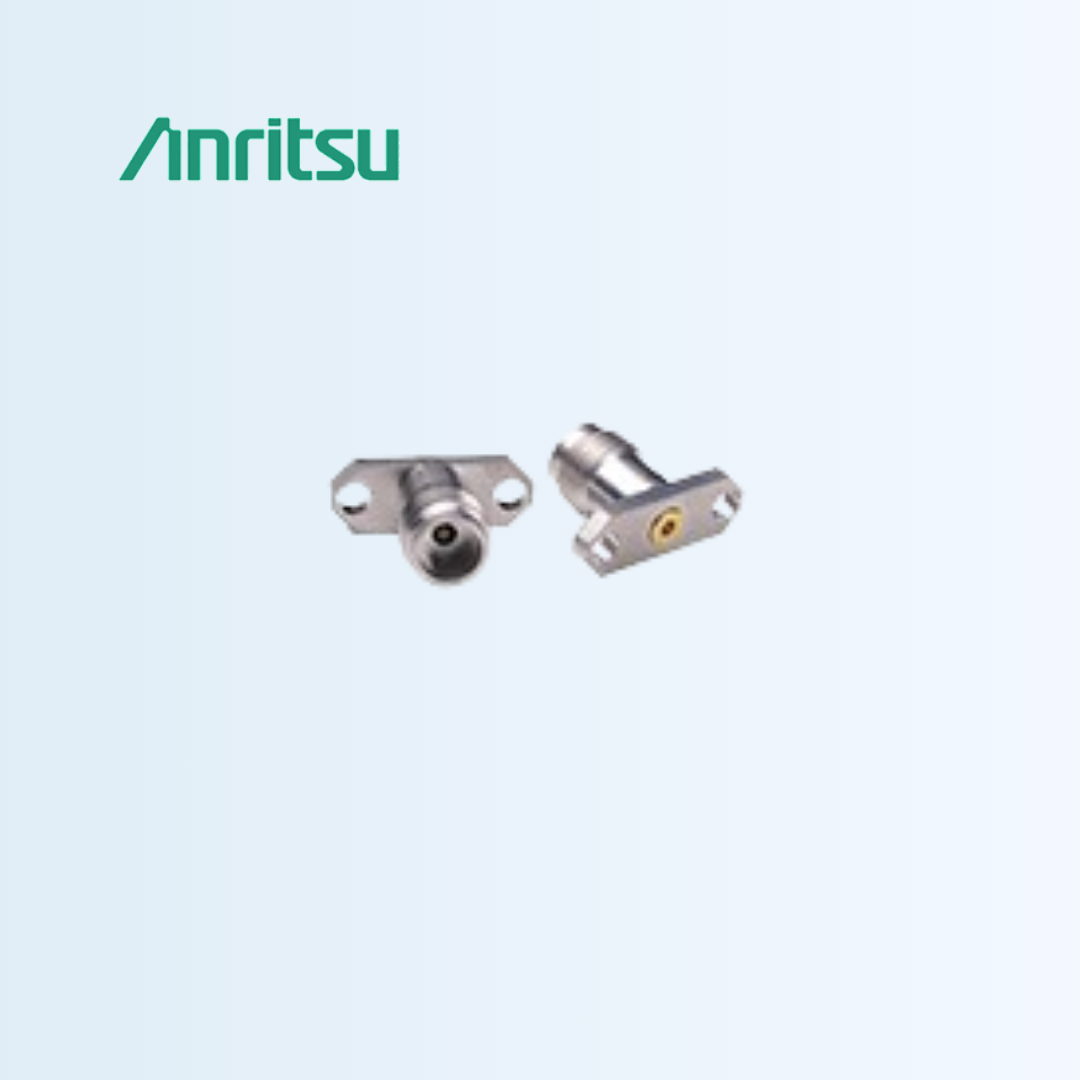

V Female Flange Launcher

The V103F-R is RoHS compliant. It contains less than the Maximum Concentration Values (MCVs) for Lead, Mercury, Cadmium, Hexavalent Chromium, PBB and PBDE per EU directive 2002/95/EC. The following RoHS exemption applies: Lead as an alloying element in copper containing up to 4% (40000PPM) lead by weight.

  • Extended RF bandwidth: Supports traceable, mode-free signal performance up to 65 GHz, with low VSWR and insertion loss.
  • Stable flange-mounted installation: Two-screw mounting and precision machining (< ±0.038 mm concentricity tolerance) ensure proper alignment and reliable mechanical integration.
  • Solderless termination: Supports glass-bead microstrip assembly without solder, simplifying installation while preserving signal integrity.
  • High reliability: Maintains consistent mating cycles and solid electrical performance due to durable materials and design.
  • Tooling support: Compatible with Anritsu’s V Connector assembly tools, including glass bead fixture (01‑306), drill/tap kits (01‑304 or 01‑308), and torque tools (01‑105A).
  • Model V103F-R
  • Connectors V(f) flange launcher connector
  • Two mounting holes
  • Excellent Performance up to 65 GHz
  • Low VSWR
  • Low insertion loss
  • Superior Reliability
  • Compatibility with 2.4 mm
  • Complete Testability on Existing Network Analyzers
