V103F-012

V103F-012

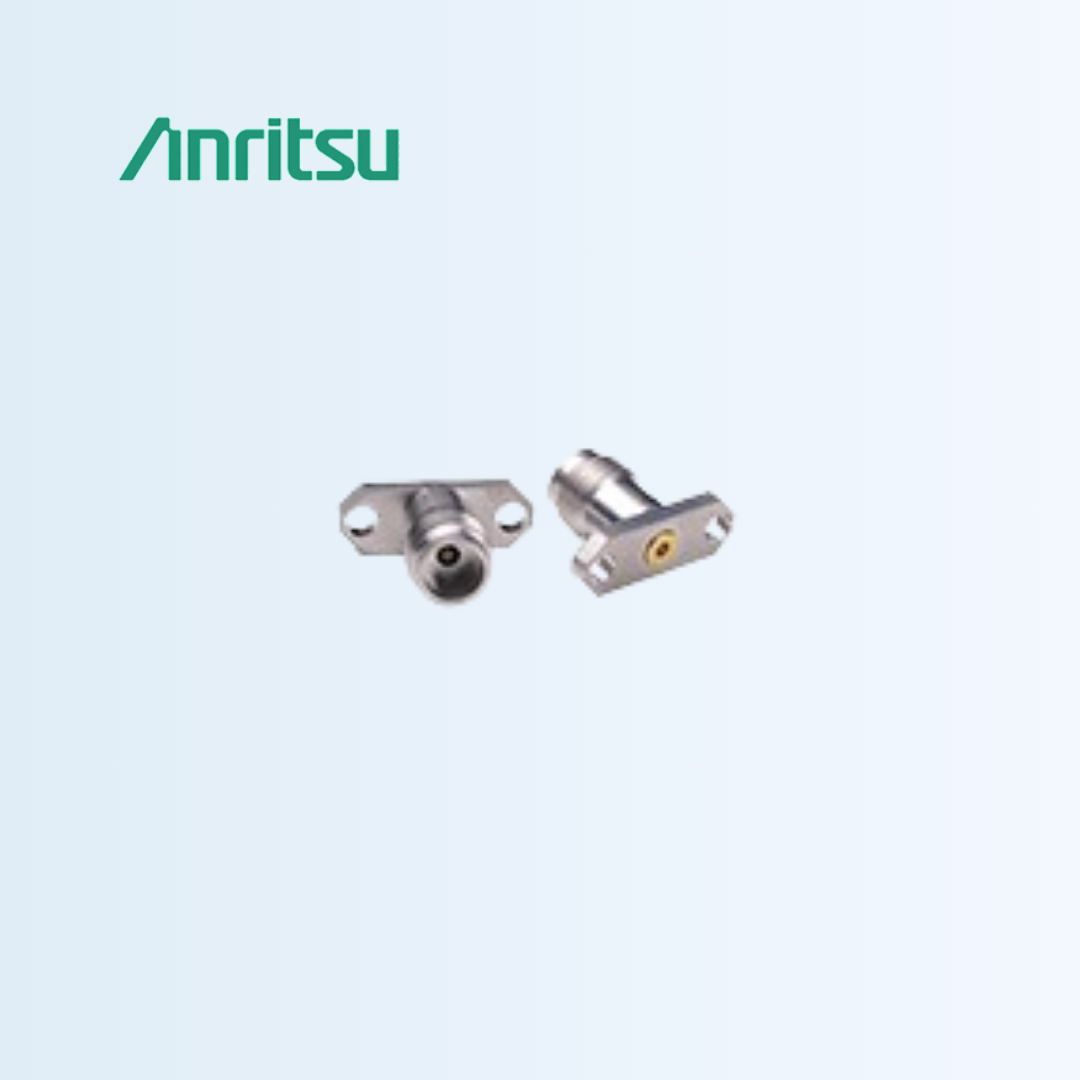

V Female Flange Launcher

The V103F-012 is identical to V103F, however, this connector can be used with a 0.30 mm glass bead pin.

  • Ultra-wideband RF capability up to 65 GHz with excellent VSWR & return loss.
  • Precision flange-mount design with two-screw mounting ensures stable alignment and easy fixture integration.
  • Solderless termination, simplifying installation with standard glass-bead and hot-plate methods.
  • Model V103F-012
  • Connectors V(f) flange launcher
  • 2 mounting holes for 0.30 mm glass bead pin
  • Excellent Performance up to 65 GHz
  • Low VSWR
  • Low insertion loss
  • Superior Reliability
  • Compatibility with 2.4 mm
  • Complete Testability on Existing Network Analyzers
