V102F-R

V102F-R

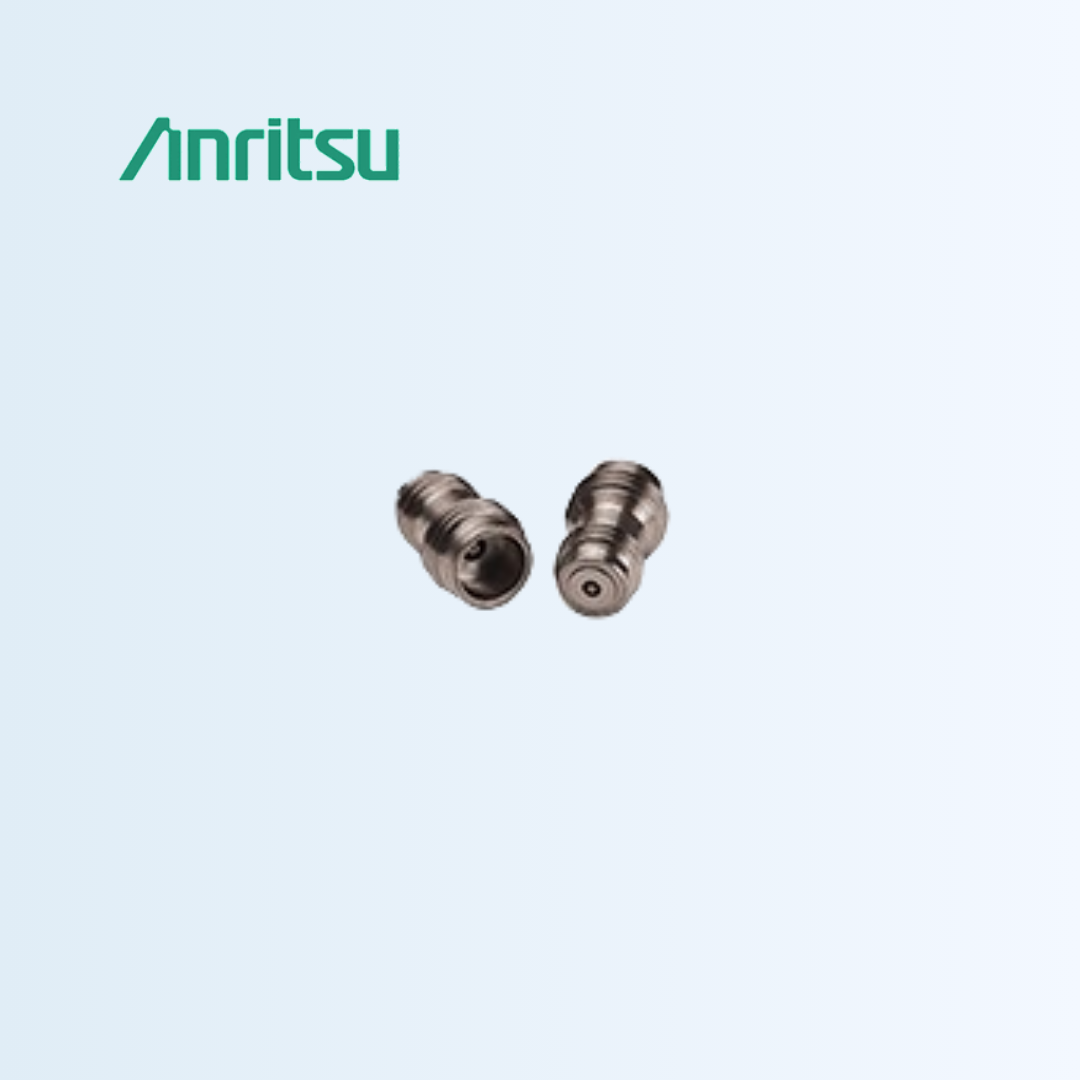

V Female Sparkplug Launcher Connector

The V102F-R is RoHS compliant. It contains less than the Maximum Concentration Values (MCVs) for Lead, Mercury, Cadmium, Hexavalent Chromium, PBB and PBDE per EU directive 2002/95/EC. The following RoHS exemption applies: Lead as an alloying element in copper containing up to 4% (40000PPM) lead by weight.

  • Exceptional Bandwidth: Supports traceable, low-loss RF transmission up to 65 GHz with excellent return loss and VSWR.
  • Superior Reliability: Precision center contact and durable construction deliver consistent mating performance.
  • - Flexible Compatibility: Fits standard V Connector test setups; works with tools like 01-303 bead holding fixture, 01‑304/01‑308 drill & tap kits, and 01‑306 solder fixture to align and install connectors.
  • Model V102F-R
  • Connectors V(f) sparkplug launcher connector
  • Excellent Performance up to 65 GHz
  • Low VSWR
  • Low insertion loss
  • Superior Reliability
  • Compatibility with 2.4 mm
  • Complete Testability on Existing Network Analyzers
