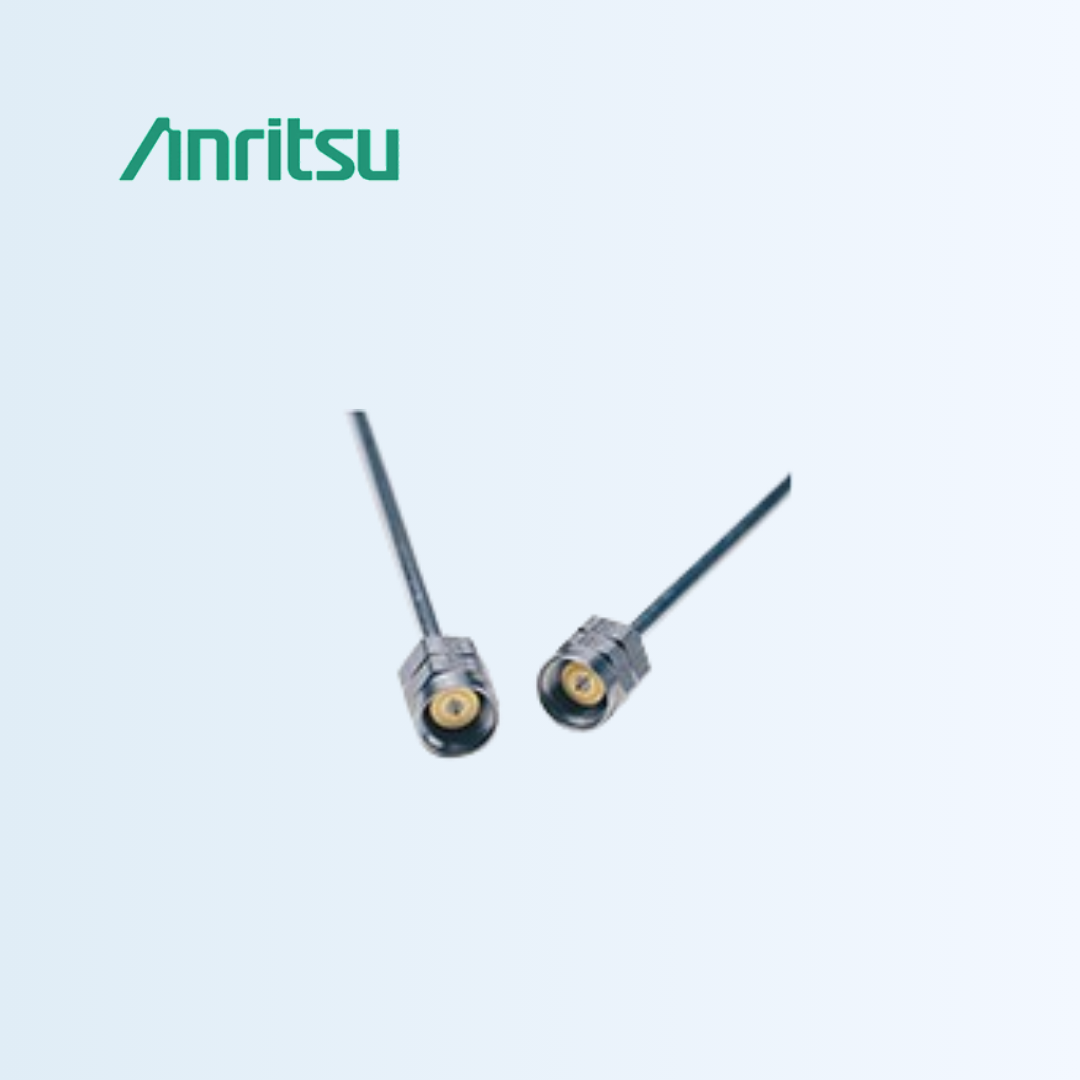

V101M-R

V101M-R

V Male In-Line Cable Connector

The V101M-R is RoHS compliant. It contains less than the Maximum Concentration Values (MCVs) for Lead, Mercury, Cadmium, Hexavalent Chromium, PBB and PBDE per EU directive 2002/95/EC. The following RoHS exemption applies: Lead as an alloying element in copper containing up to 4% (40000PPM) lead by weight.

  • Ultra‑wideband performance up to 65 GHz with excellent insertion loss and traceable mode-free characteristics.
  • Low return loss (≥15 dB) ensures high signal integrity at high frequencies.
  • Precision termination to V085 cable via soldering, using Anritsu tooling (e.g., 01‑309 fixture and 01‑307M/F toolkits).
  • Standard temperature rating supports rugged environments from laboratory to field test setups.
  • Model V101M-R
  • Connectors V(m) in-line cable connector
  • Excellent Performance up to 65 GHz
  • Low VSWR
  • Superior Reliability
  • Low Loss
  • Connector Type V‑type, 1.85 mm male (plug), straight in-line
  • Impedance 50 Ω
  • Operating Temperature –55 °C to +125 °C
  • RoHS Compliance Yes
