V101F-R

V101F-R

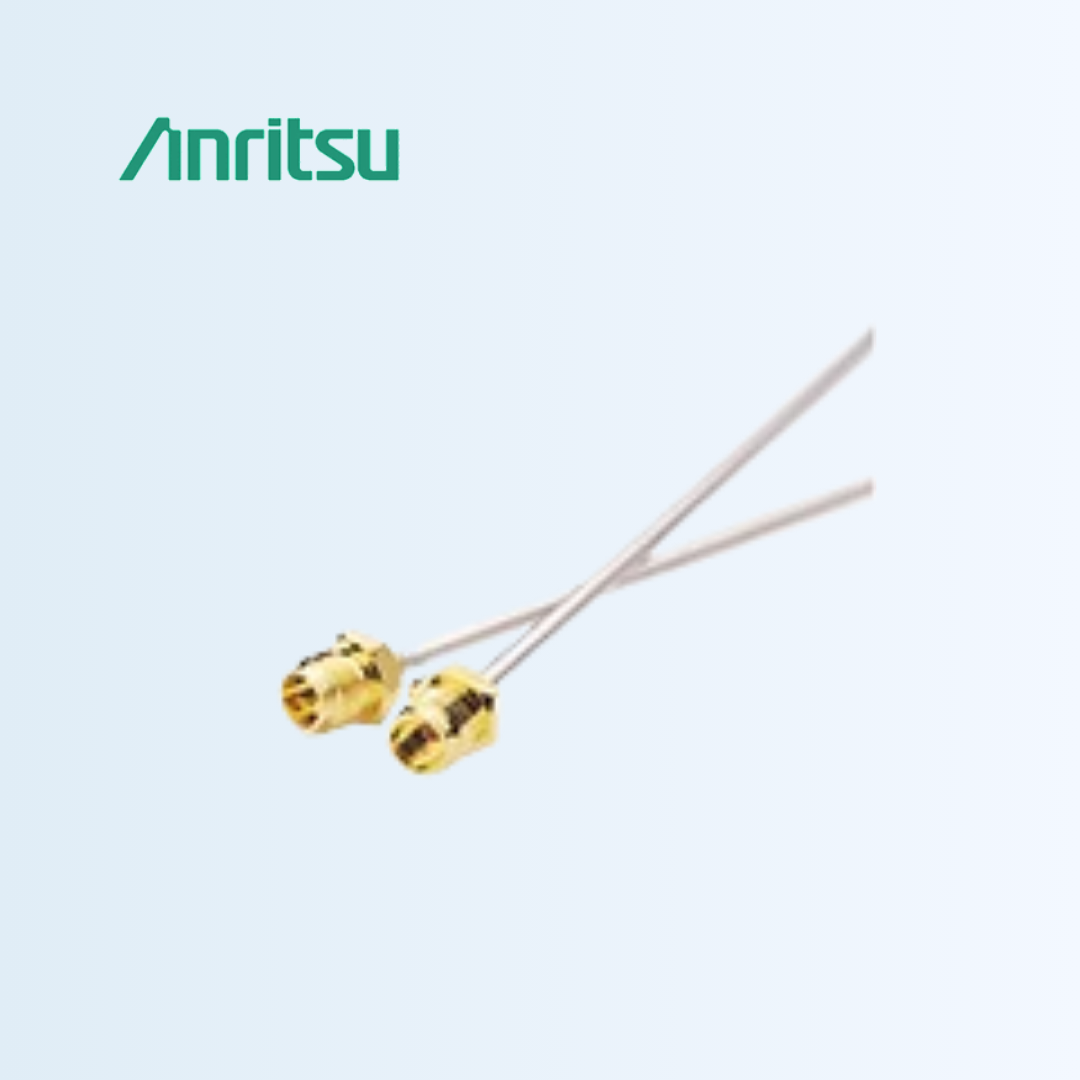

V Female In-Line Cable Connector

The V101F-R is RoHS compliant. It contains less than the Maximum Concentration Values (MCVs) for Lead, Mercury, Cadmium, Hexavalent Chromium, PBB and PBDE per EU directive 2002/95/EC. The following RoHS exemption applies: Lead as an alloying element in copper containing up to 4% (40000PPM) lead by weight.

  • High-Frequency Performance: Mode-free, traceable RF transmission up to 65 GHz with low VSWR and insertion loss.
  • High Mating Reliability: Gold-plated BeCu center ensures consistent mating over many cycles.
  • Assembly with V085 Cable: Designed for V085 termination using tools like Anritsu 01‑309 cable fixture and 01‑307F soldering tool Scribd.
  • Precision Installation: Connector pin depth must be within 0.0 to –0.13 mm relative to the cable jacket face for optimal RF performance.
  • Model V101F-R
  • Connectors V(f) in-line cable connector
  • Excellent Performance up to 65 GHz
  • Impedance: 50 Ω
  • Low VSWR
  • Superior Reliability
  • Low Loss
  • RoHS Compliance: Yes
