K118

K118

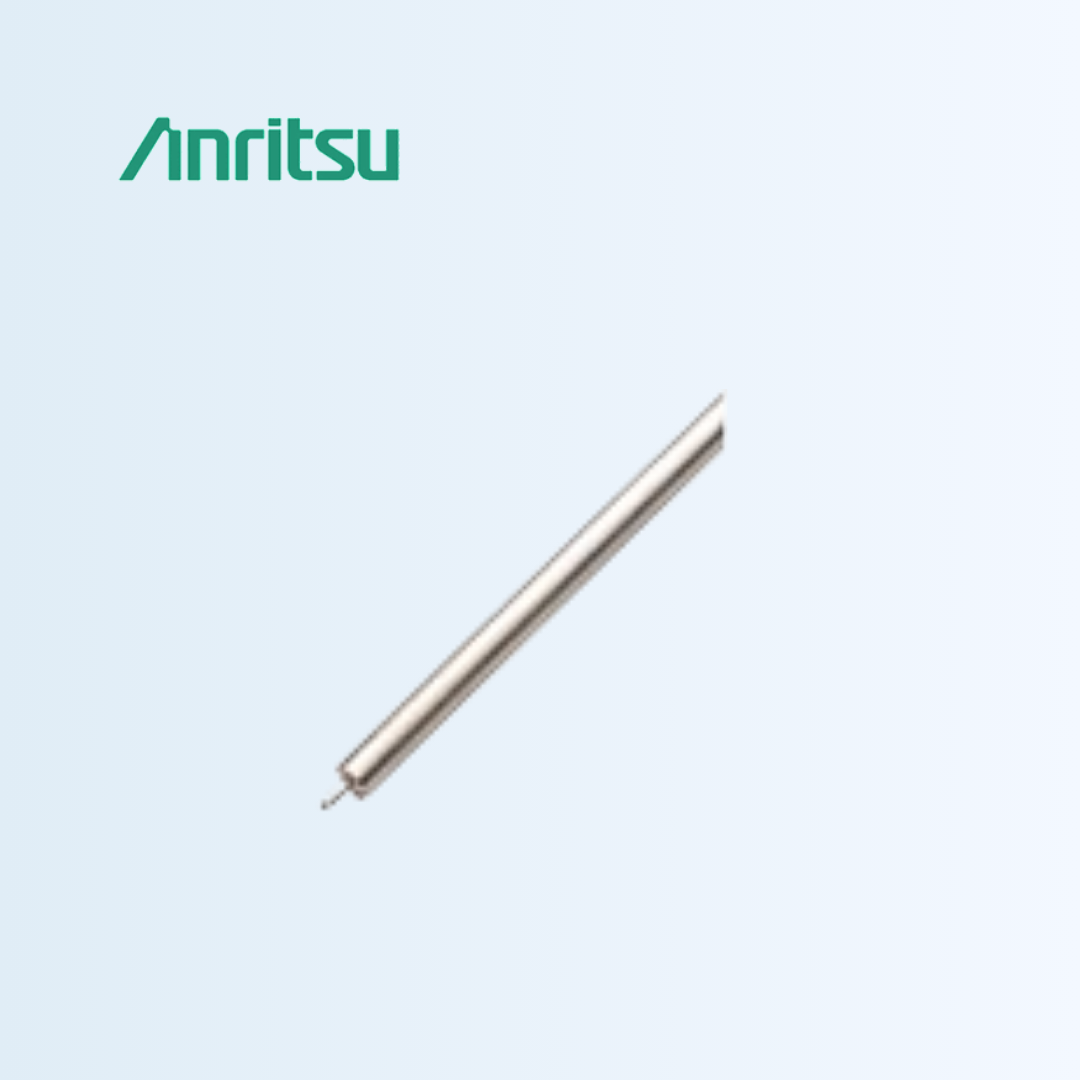

Semi-rigid Coaxial Cable

K118 is a 1.5 meter length of 3.00 mm (0.118 inches) semi-rigid coaxial cable for use with K101F and K101M connectors.

  • High-frequency support up to 40 GHz, offering low VSWR and traceable signal performance with K Connector assemblies.
  • Consistent RF performance when paired with gold-plated BeCu center contact connectors (e.g. K101F/M), with low insertion and return loss.
  • Bundled assembly tooling support: recommended use with Anritsu 01‑118 Cable Assembly Fixture Kit, plus specialized soldering and handling fixtures for precise connector installation.
  • Model K118
  • 1.52 m length of 2.95 mm Semi-rigid cable for K101 series connector
  • Impedance 50 Ω
  • Operation to 46 GHz
  • Microporous dielectric
  • Velocity factor 78%
  • Maximum operating temperature 200°C
