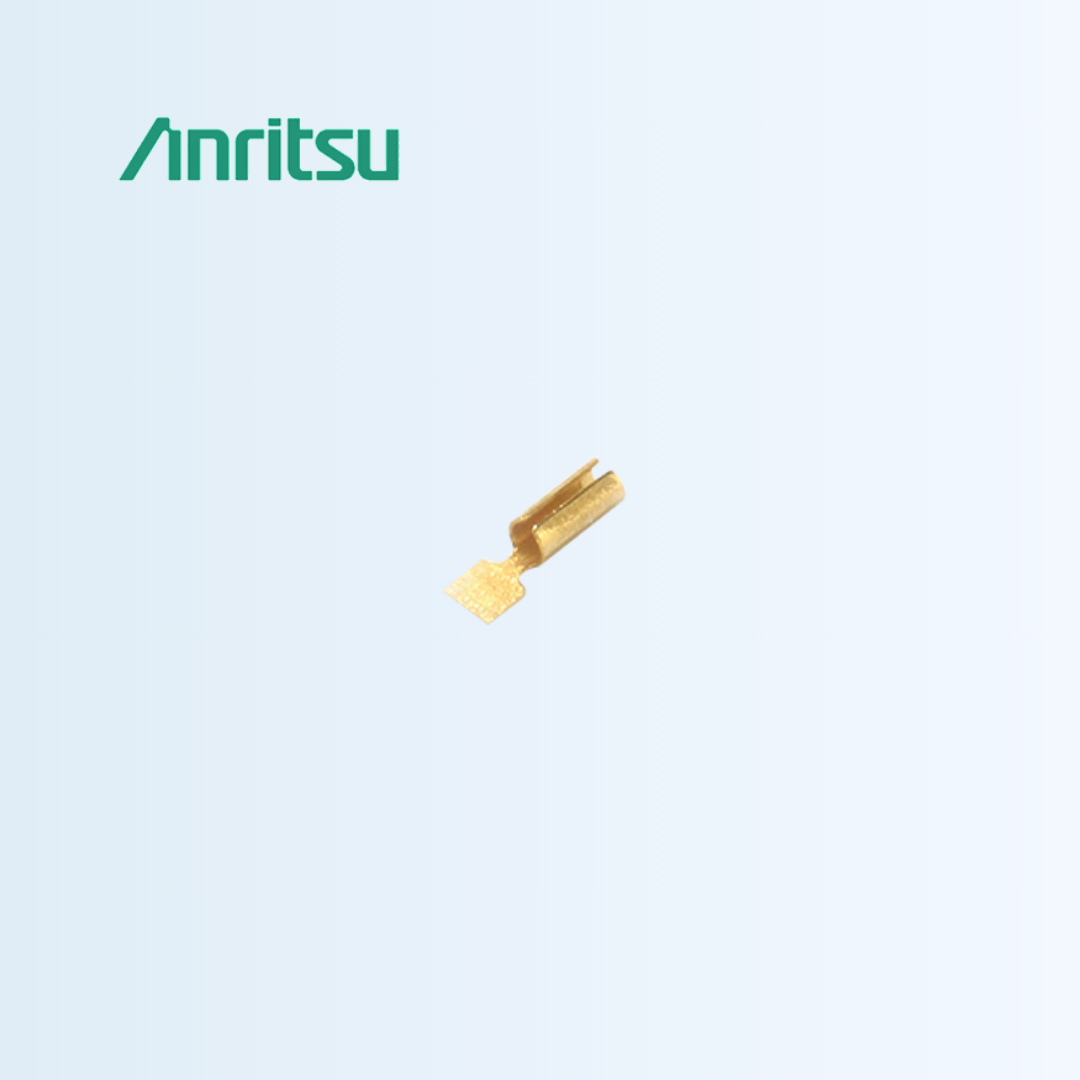

K110-3-R

K110-3-R

Stress Relief Contacts - tete

K110-3-R is designed to use with a 0.41 mm or larger, microstrip trace on Duroid. The installation note for K110-3 shows how to make connection using gap welding, wire bonding or soldering.

  • Provide stress relief to protect circuits from temperature variations, shock and vibration.
  • Provides excellent quality microwave connection to a 0.30 mm pin without the need for soldering.
  • Designed to work with K connectors up to 40 GHz.
  • Model : K110‑3‑R
  • Application : Microstrip or coplanar waveguide, sliding contact for 0.38 mm glass pin
  • Frequency Range : DC to 40 GHz (low VSWR, traceable performance)
  • RoHS Compliance : Yes
  • Compatibility : Works with Anritsu K Connector assemblies and requires 01‑108 Drill & Tap Kit for mounting hole concurrency (~±0.038 mm)
