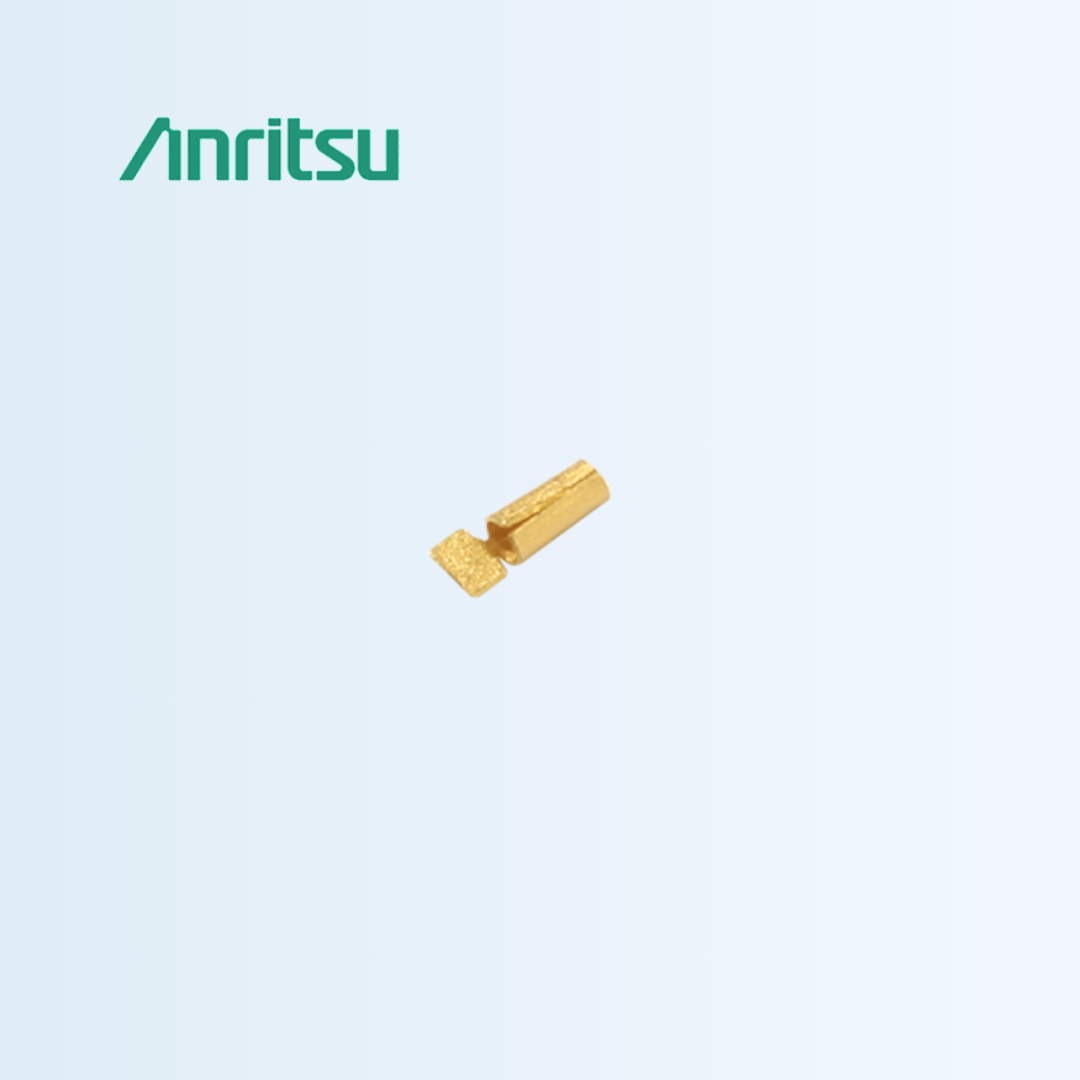

K110-2-R

K110-2-R

Stress Relief Contacts

K110-2-R is designed to connect to a 0.41 mm or larger, trace on stripline. The installation note for K110-2 shows how to make a connection to stripline.

  • Provide stress relief to protect circuits from temperature variations, shock and vibration.
  • Provides excellent quality microwave connection to a 0.30 mm pin without the need for soldering.
  • Designed to work with K connectors up to 40 GHz.
  • Model : K110‑2‑R
  • Application: Stripline stress-relief for circuits with wider stripline traces (≥ 0.41 mm)
  • Frequency Range: DC to 40 GHz, meeting standard K Connector traceable performance
  • Material: Heat-treated beryllium-copper sleeve (~0.025 mm thick), gold-plated over nickel, with bondable tab for connection to stripline trace
  • Mating Durability: Rated for 500+ mating cycles, typical of K Connector components
  • RoHS Compliance: Yes
