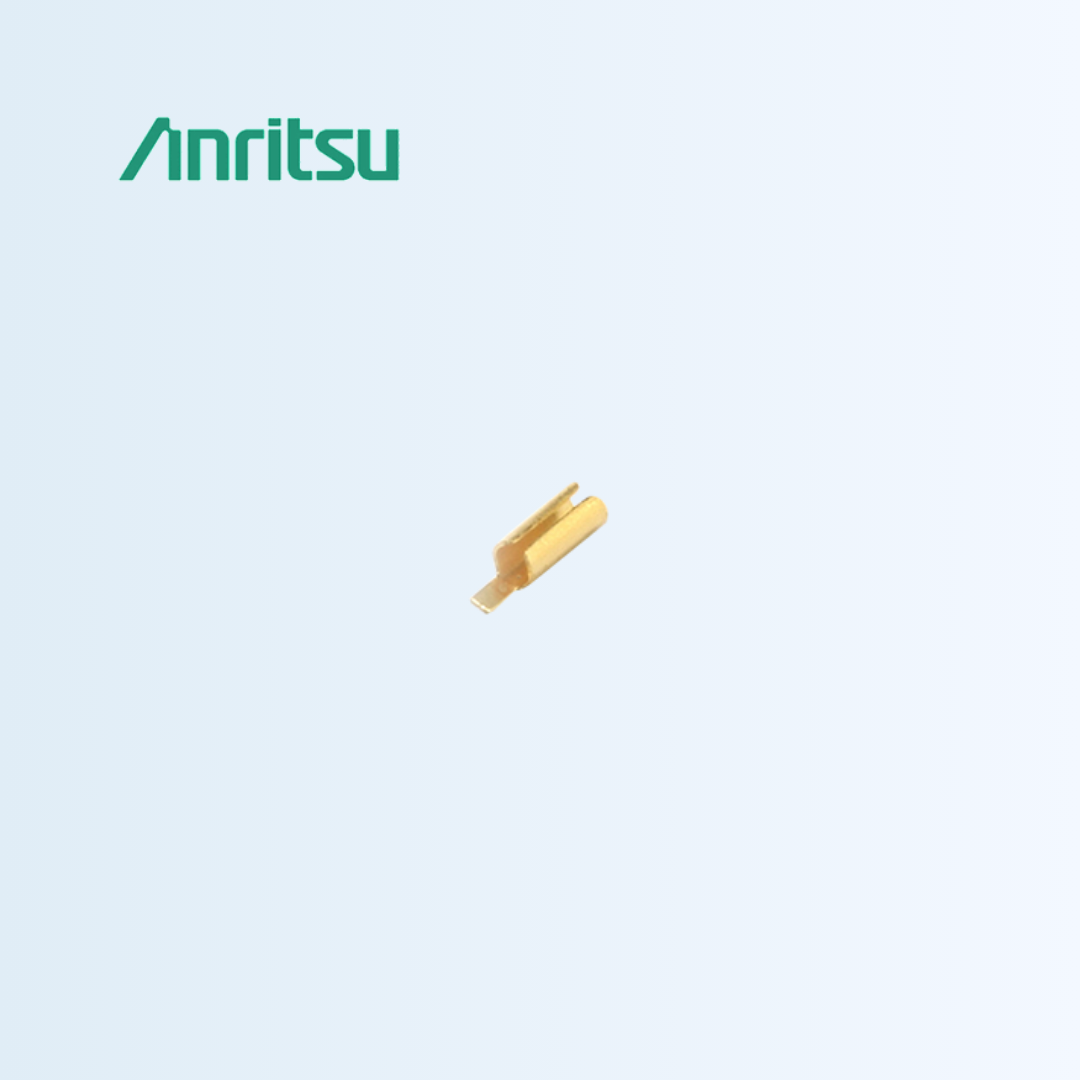

K110-1-R is designed to connect to a 0.15 mm or larger, microstrip trace on Alumina. The installation note for K110-1 shows how to make connection using gap welding, wire bonding or soldering.
Provide stress relief to protect circuits from temperature variations, shock and vibration.
Provides excellent quality microwave connection to a 0.30 mm pin without the need for soldering.
Designed to work with K connectors up to 40 GHz.
Spesifications:
- Model : K110‑1‑R
- Application : Designed for microstrip or coplanar waveguide interfaces on alumina substrates with trace width ≥ 0.15 mm
- Frequency Range: DC to 40 GHz (mode‑free, traceable performance per K Connector standard)
Material: 0.025 mm heat‑treated beryllium‑copper sleeve, gold‑plated over nickel, with bondable tab for electrical contact
