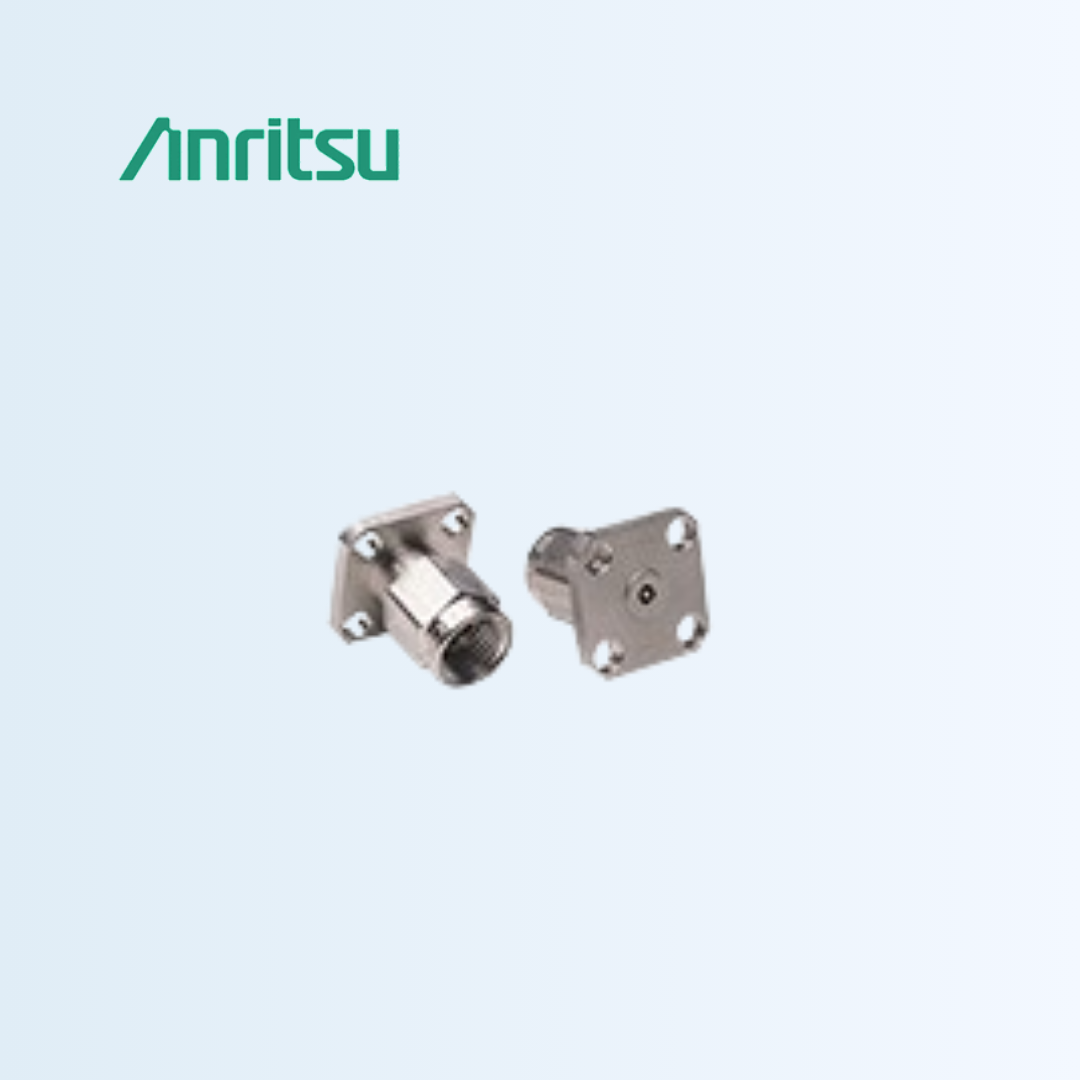

K104M-R

K104M-R

K Male Flange Launcher

The K104M-R mates with either the K100 Bead or the K100B Hermetic Bead.

  • Excellent Performance up to 40 GHz
  • Performance Exceeding SMA Below 18 GHz
  • Superior Reliability
  • Compatibility with SMA, WSMA, and 3.5 mm
  • Complete Testability on Existing Network Analyzers
  • Model : K104M-R
  • Connectors : K(m) flange launcher connector
  • Connector Type : K‑type (2.92 mm), male plug, straight orientation
  • Mounting Style : Four-hole flange mount for flush mechanical installation
  • Frequency Range : DC to 40 GHz — traceable, low-loss performance
  • Impedance : 50 Ω
  • Operating Temperature : −55 °C to +125 °C
  • Mating Durability : Over 500 mating cycles
  • RoHS Compliant : Yes
