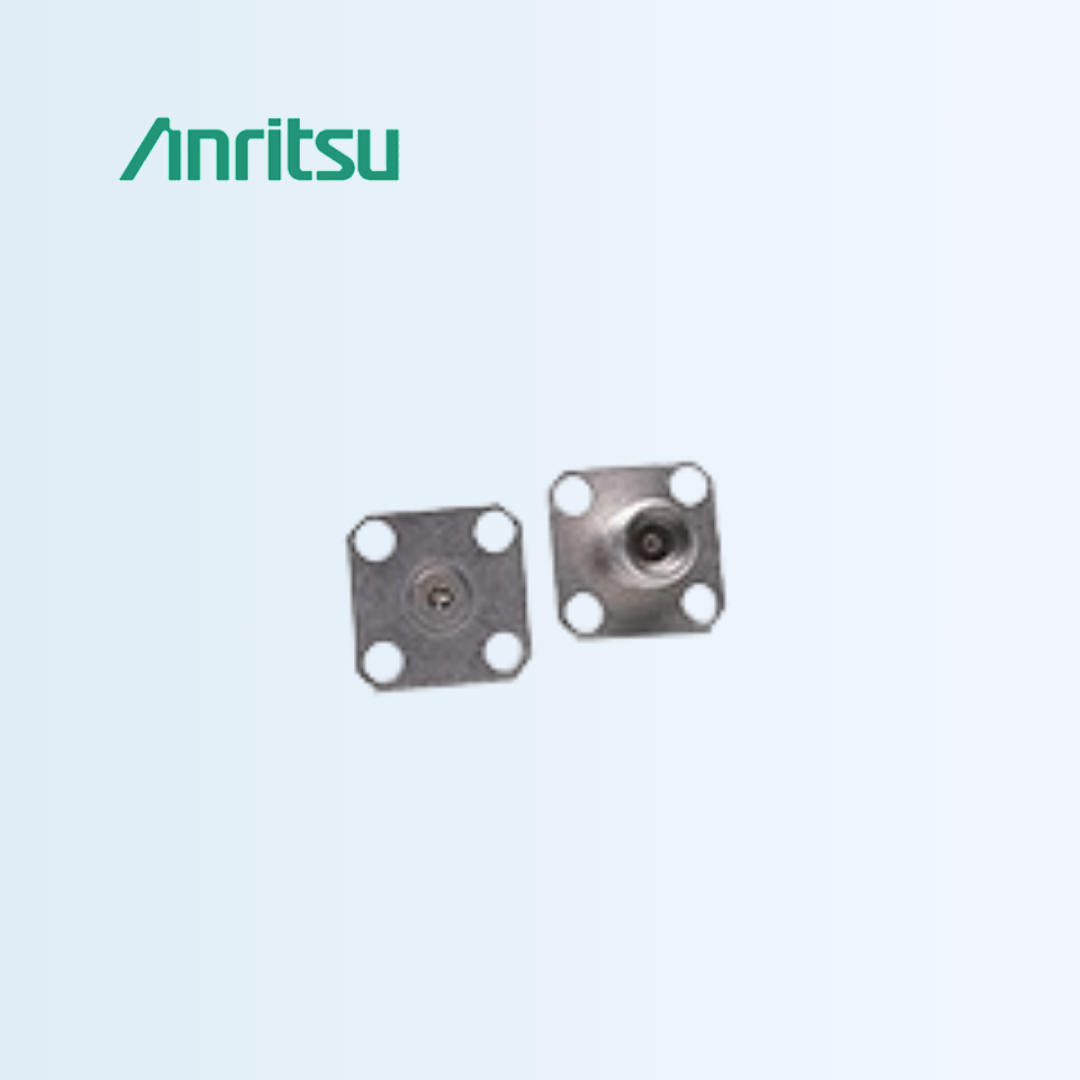

K104F-R

K104F-R

K Female Flange Launcher

The K104F-R mates with either the K100 Bead or the K100B Hermetic Bead.

  • Excellent Performance up to 40 GHz
  • Performance Exceeding SMA Below 18 GHz
  • Superior Reliability
  • Compatibility with SMA, WSMA, and 3.5 mm
  • Complete Testability on Existing Network Analyzers
  • Model : K104F-R
  • Connector: K(f) flange launcher connector
  • Frequency : DC to 40 GHz
  • Connector Type : K‑type (2.92 mm), female/jack, straight flange mount
  • Mounting Style : Four-hole flange mount
  • Impedance : 50 Ω
  • Termination Type : Solderless interface
  • Operating Temperature : –55 °C to +125 °C
  • Material : Outer conductor & bead holder: passivated stainless steel; Center conductor: heat-treated beryllium copper, gold‑plated over nickel
  • Mating Durability : > 500 mating cycles
  • RoHS Compliance : Yes
