K103M-R

K103M-R

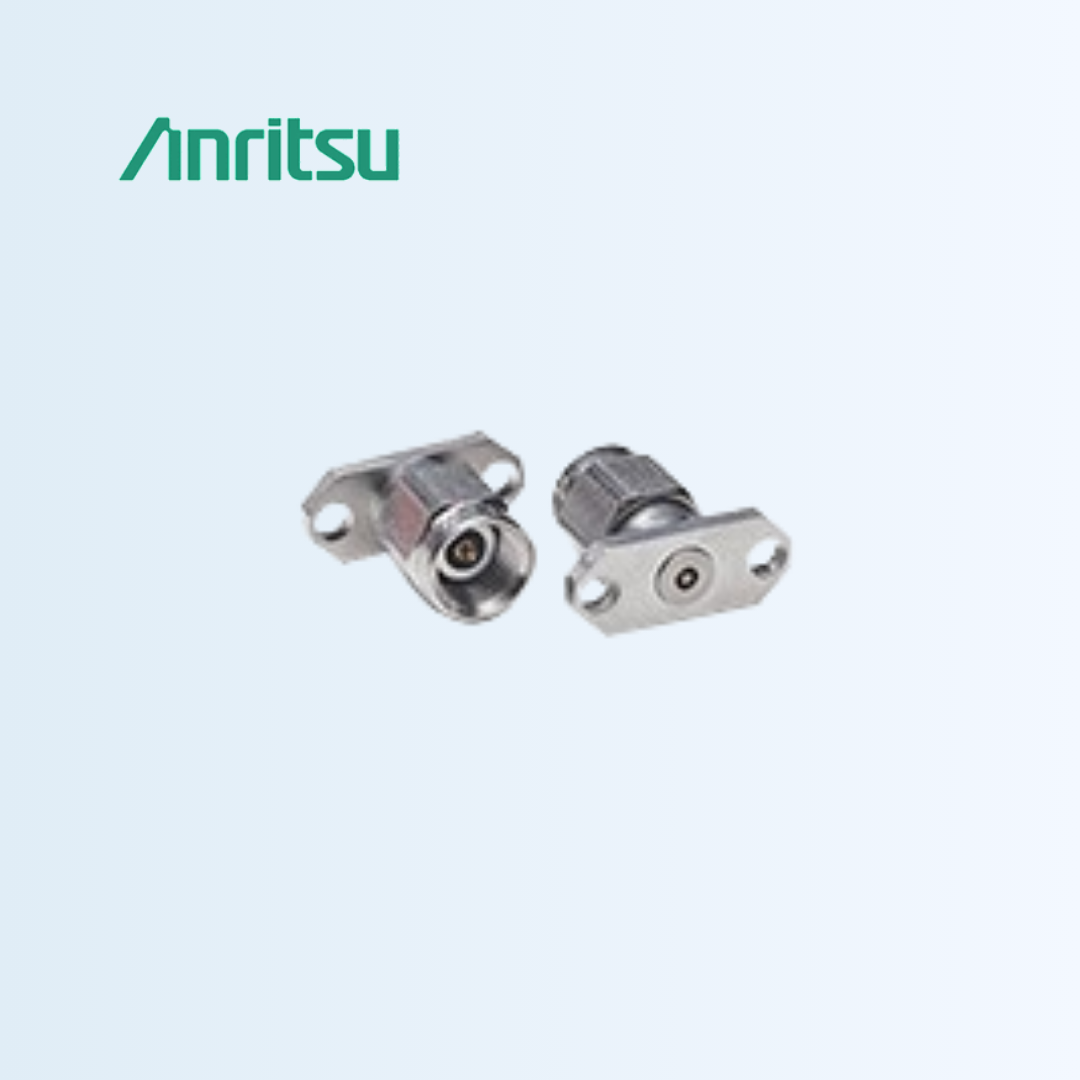

K Male Flange Launcher

The K103M-R mates with either the K100 Bead or the K100B Hermetic Bead.

  • Excellent Performance up to 40 GHz
  • Performance Exceeding SMA Below 18 GHz
  • Superior Reliability
  • Compatibility with SMA, WSMA, and 3.5 mm
  • Complete Testability on Existing Network Analyzers
  • Model : K103M-R
  • Connectors : K(m) flange launcher connector
  • Connector Type : K‑type (2.92 mm), male/plug
  • Mounting Style : Two-hole flange, screw-in mounting
  • Frequency Range : DC–40 GHz
  • Impedance : 50 Ω
  • Orientation : Straight orientation
  • Termination Style : Solderless interface
  • Operating Temp. Range : –55 °C to +125 °C
  • RoHS Compliance : Yes
  • Mating Durability : > 500 mating cycles (typical for Anritsu flange connectors)
