K103F-R

K103F-R

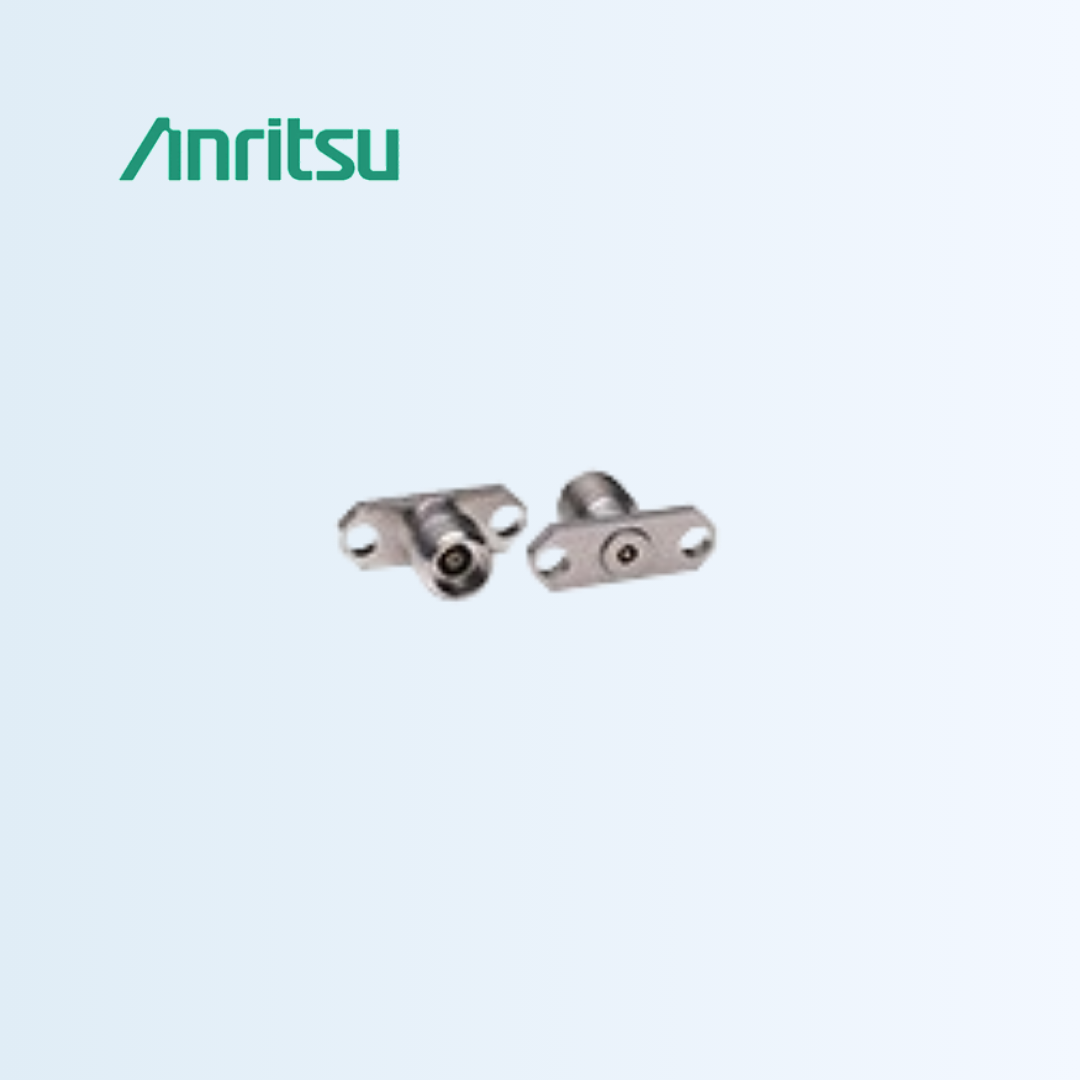

K Female Flange Launcher

The K103F-R mates with either the K100 Bead or the K100B Hermetic Bead.

  • Excellent Performance up to 40 GHz
  • Performance Exceeding SMA Below 18 GHz
  • Superior Reliability
  • Compatibility with SMA, WSMA, and 3.5 mm
  • Complete Testability on Existing Network Analyzers
  • Frequency : DC to 40 GHz
  • Connectors : K(f) flange launcher connector
  • Connector Type : 2.92 mm K-type female (jack) flange launcher
  • Mounting Style : Two-hole flange mount, threaded attachment into housing
  • Impedance : 50 Ω
  • Orientation : Straight flange style
  • Termination Style : Solderless
  • Operating Temperature : –55 °C to +125 °C everything
  • Material : Passivated stainless steel (body) and heat-treated beryllium copper (center conductor)
  • Mating Durability : >500 mating cycles
  • RoHS Compliance : Compliant
