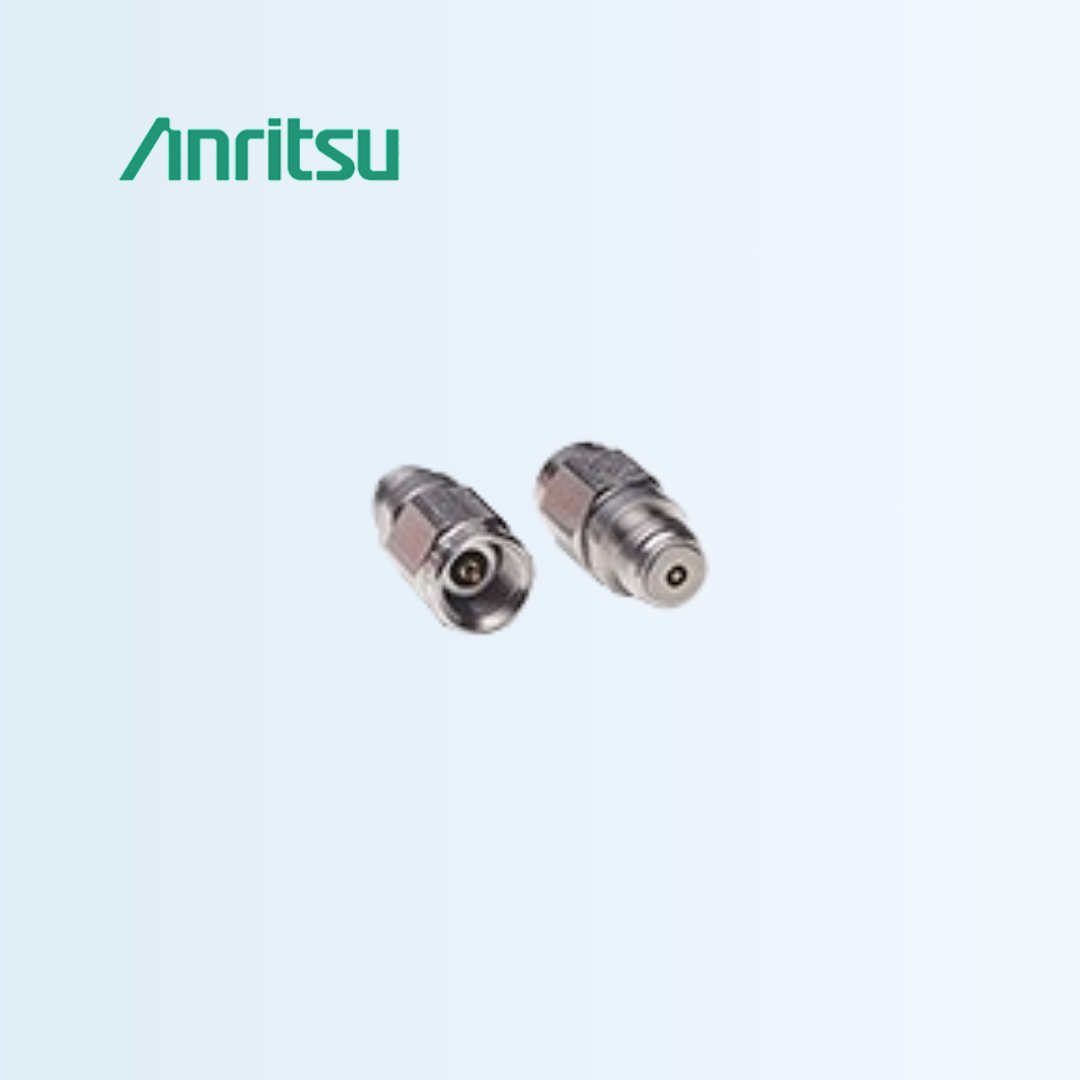

K102M-R

K102M-R

K Male Sparkplug Launcher Connector

The K102M-R mates with either the K100 Bead or the K100B Hermetic Bead.

  • Model : K102M-R
  • Frequency : DC to 40 GHz
  • Connectors : K(m) sparkplug launcher connector
  • Connector Type : 2.92 mm K-type, male (plug), straight orientation
  • Mounting Style : Screw-on installation into housing
  • Termination Style : Solderless interface with glass-bead microstrip coupling
  • Impedance : 50 Ω
  • RoHS Compliance : Yes
  • Excellent Performance up to 40 GHz
  • Performance Exceeding SMA Below 18 GHz
  • Superior Reliability
  • Compatibility with SMA, WSMA, and 3.5 mm
  • Complete Testability on Existing Network Analyzers
