K101M-R

K101M-R

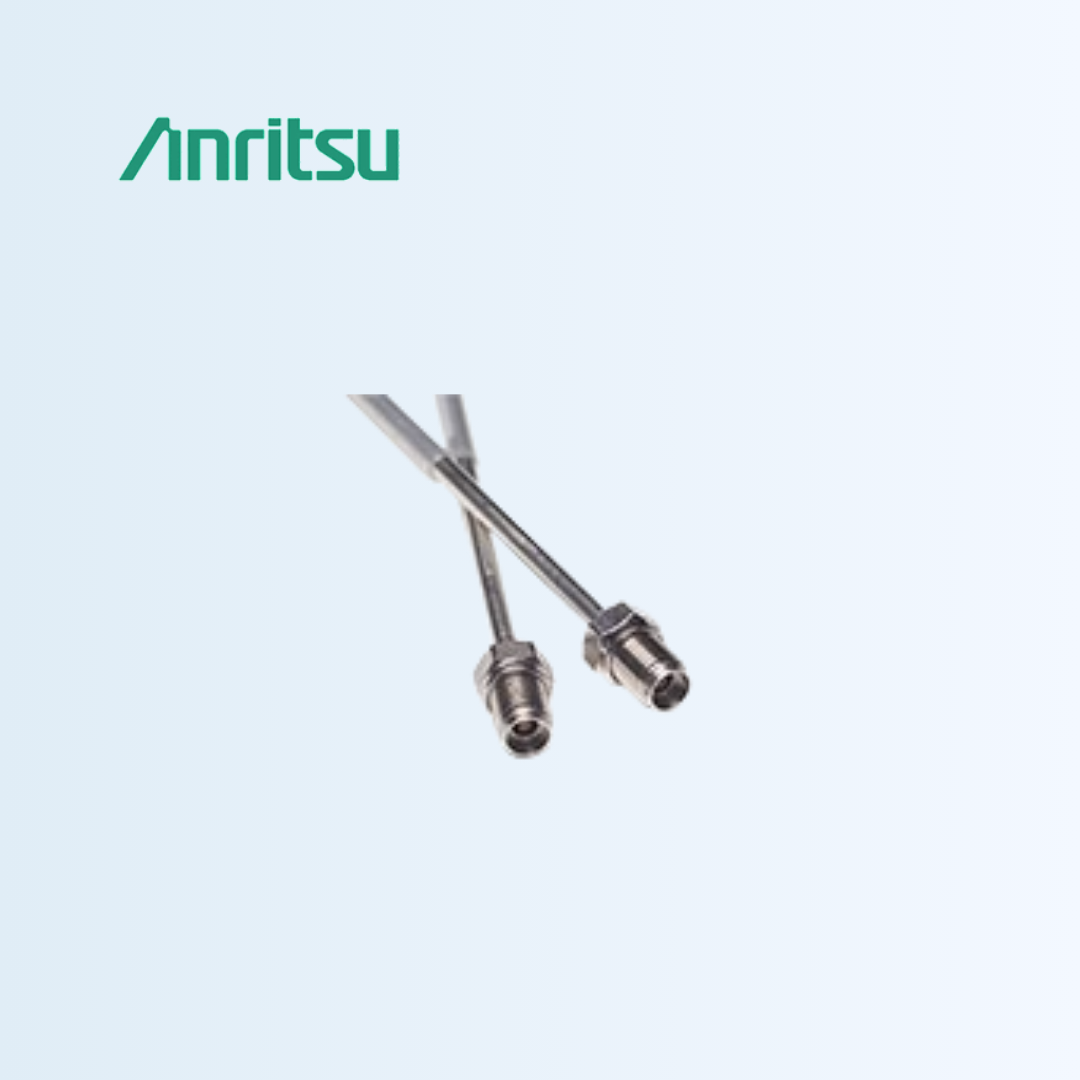

K Male In-Line Cable Connector

The K101M-R K male in-line cable connector is designed to install on K118 3 mm (0.118 inch) semi-rigid cable and provide excellent performance from DC to 40 GHz.

  • Excellent Performance up to 40 GHz
  • Performance Exceeding SMA Below 18 GHz
  • Superior Reliability
  • Compatibility with SMA, WSMA, and 3.5 mm
  • Complete Testability on Existing Network Analyzers
  • Part Number : K101M-R
  • Connector Type : K‑type (2.92 mm), male/plug, straight inline
  • Compatible Cable : V085 semi‑rigid coaxial (~2.16 mm / 0.085″ OD)
  • Frequency Range : DC to 40 GHz
  • Impedance : 50 Ω
  • Material : Passivated stainless steel body; beryllium copper center Everything RF+1
  • Operating Temperature : –55 °C to +125 °C
  • RoHS Compliance : Yes
