01-506

01-506

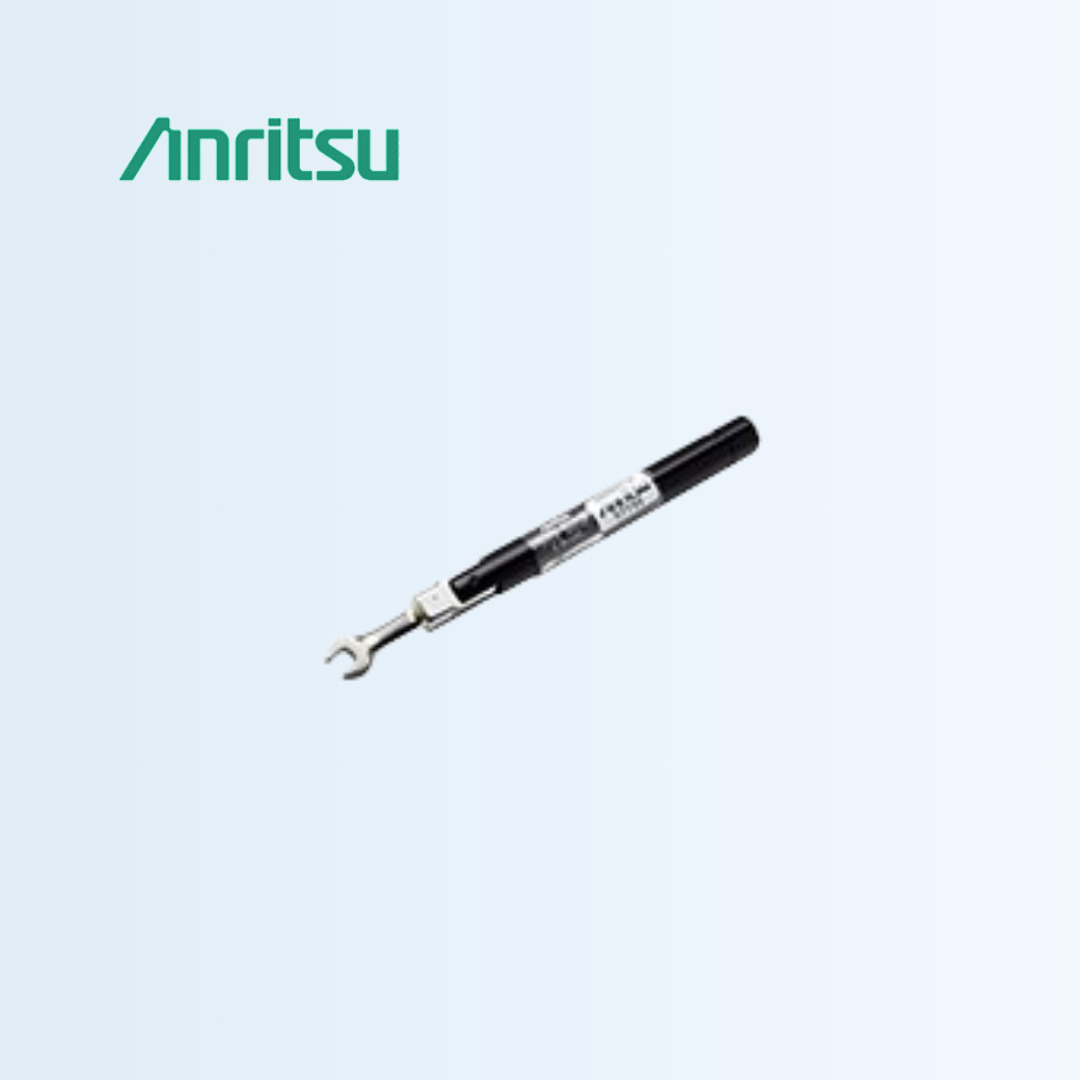

W1-7mm Torque Wrench

The Anritsu 01‑506 is a fixed break‑over torque wrench designed for W1 (1 mm) connectors, featuring a 7 mm torque end specifically tailored for coupling nuts on W1 connectors.

  • Fixed break‑over style for precise torque application to W1 connector coupling nuts.
  • Preset torque value (~0.56 N·m or 5 in‑lb) prevents over‑tightening and damage to delicate connector.
  • Optimized for ultra‑high‑frequency RF connectors, ensuring reliable, repeatable performance in demanding RF test environments (up to 110 GHz).
  • Part Number: 01‑506Application: W1 (1 mm) connectors
  • Wrench Size: 7 mm torque end wrench
  • Preset Torque: Approximately 5 in‑lb (≈ 0.56 N·m)
  • Complementary Tool: Often used alongside the 01‑505 open‑end wrench for holding the connector body during torque application
