2000-1749-R

2000-1749-R

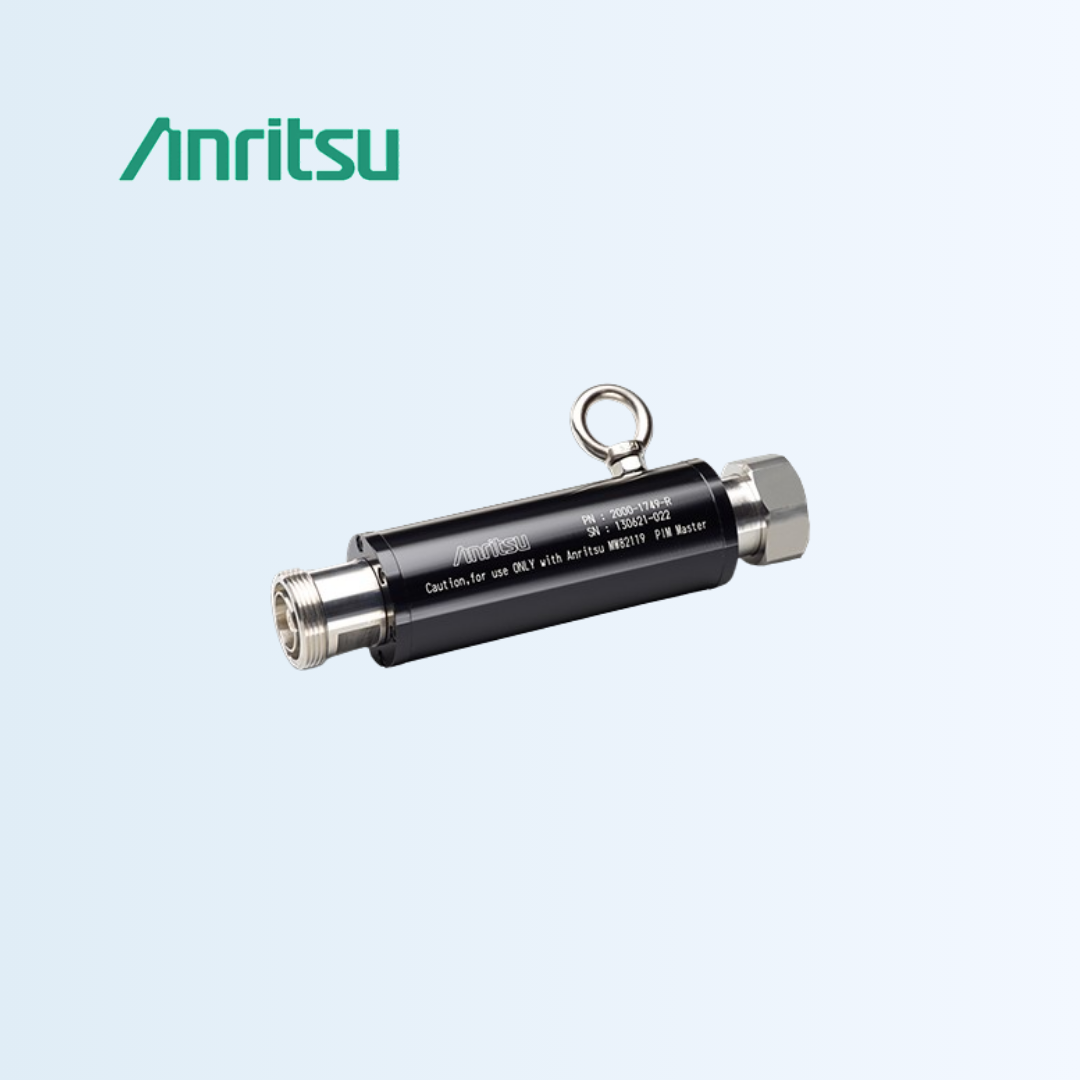

Low PIM Load

This Low PIM Load contains a 7-16 DIN male connector on one end and a 7-16 DIN female connector on the other end to eliminate the need for RF adapters while testing at the top of a tower. Comes with a brass cap that can be installed on either end to prevent external interference from entering the Low PIM Load while testing.

  • Black anodized aluminum housing, with silver-plated center pin and beryllium copper socket for long-lasting performance and corrosion resistance.
  • Average Power Rating 10 W – ideal for mid-level testing applications.
  • Frequency: 690 MHz — 2800 MHz
  • PIM: –160 dBc max with 2 x 20 W tones @ 25 °C
  • Impedance: 50 ohm nominal
  • Return Loss: 16 dB min
  • Power Rating: 10 W average
  • Operating Temperature: –10 °C to 55 °C
  • Dimensions: 163 mm long x 40 mm diameter
  • Weight: 0.5 kg
  • Body: Black anodized aluminum
  • Connectors: 7/16 dual gender (male and female), 32.0 mm hex tri-alloy plated brass body Silver plated brass center pin; Silver plated beryllium copper socket
