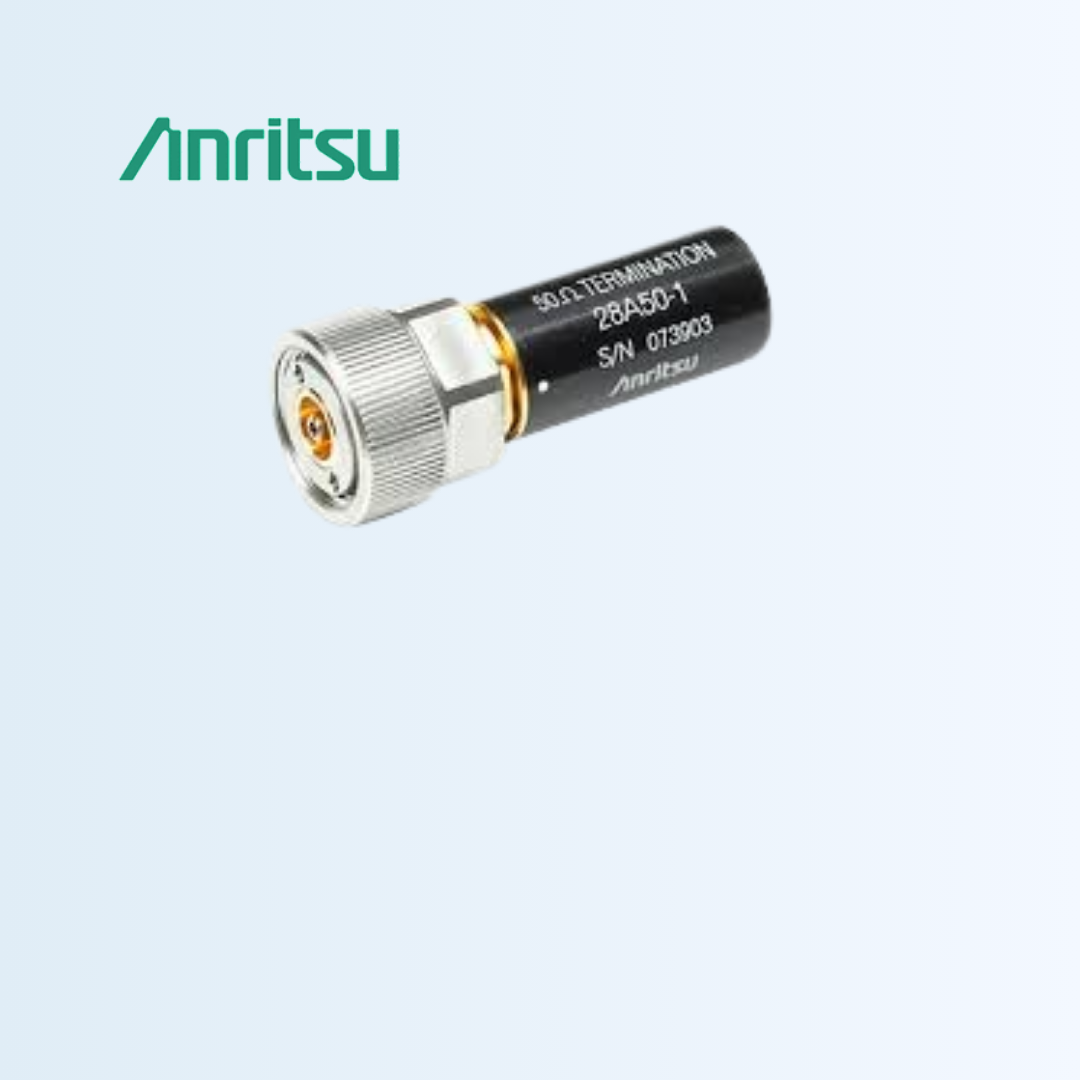

Coaxial Termination

These precision, metrology-grade terminations are used in measurement systems that need to achieve the smallest possible reflections. Their excellent match makes them ideal as a reference for fault location measurements on scalar network analyzers.

  • Accurate reference for SWR measurements.
  • Precise termination for test instrument or device under test.
  • Model : 28A50-1
  • Frequency : DC to 18 GHz
  • Test Port Connector : GPC-7
  • Input Impedance : 50 Ω
  • SWR : 1.02 Max
  • Dimensions : 5.2 x 2.2
