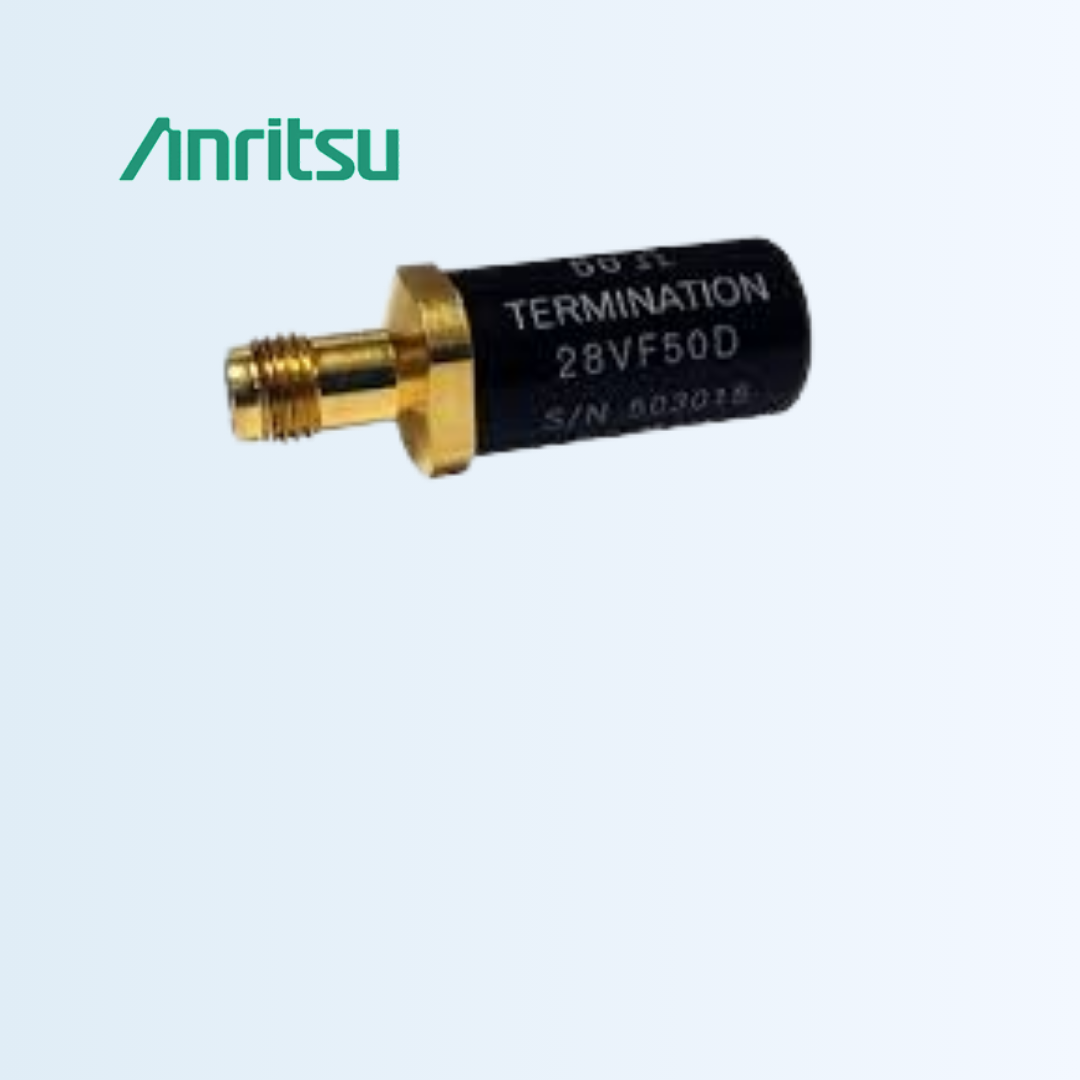

28VF50D

28VF50D

Coaxial Termination

These precision, metrology-grade terminations are used in measurement systems that need to achieve the smallest possible reflections. Their excellent match makes them ideal as a reference for fault location measurements on scalar network analyzers.

  • Accurate reference for SWR measurements.
  • Precise termination for test instrument or device under test.
  • Model : 28VF50D
  • Frequency : DC to 70 GHz
  • Test Port Connector : V(f)
  • Input Impedance : 50Ω
  • SWR : 1.018 to 2.5 GHz / 1.032 to 4 GHz / 1.052 to 40 GHz / 1.083 to 50 GHz / 1.106 to 70 GHz
  • Dimensions : 3.7 x 1.2
