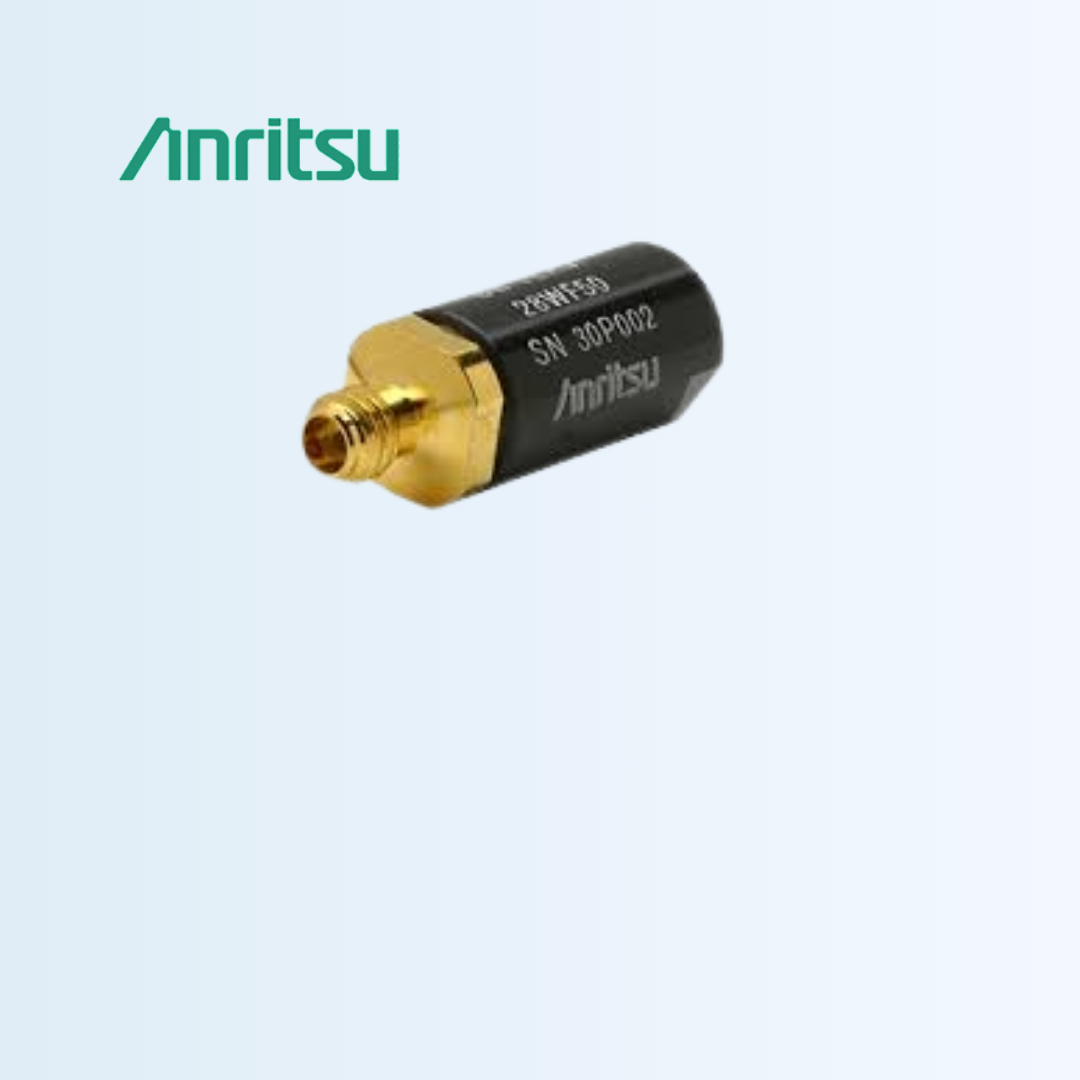

28WF50

28WF50

Female Precision Termination

W1 Precision Metrology-grade terminations are used in measurement systems that need to achieve the smallest possible reflections. Designed in both Male (28W50) and Female configurations. These terminations can be used as precision load for test instrument or device under test.

  • Accurate reference for SWR measurements.
  • Broadband load for instrument and device under test.
  • Model : 28WF50
  • Frequency : DC to 110 GHz
  • Test Port Connector : W1(f)
  • Input Impedance : 50Ω
  • SWR : 1.065 to 20 GHz / 1.094 to 65 GHz / 1.377 to 90 GHz / 1.671 to 110 GHz
  • Dimensions : 2.1 x 0.8
