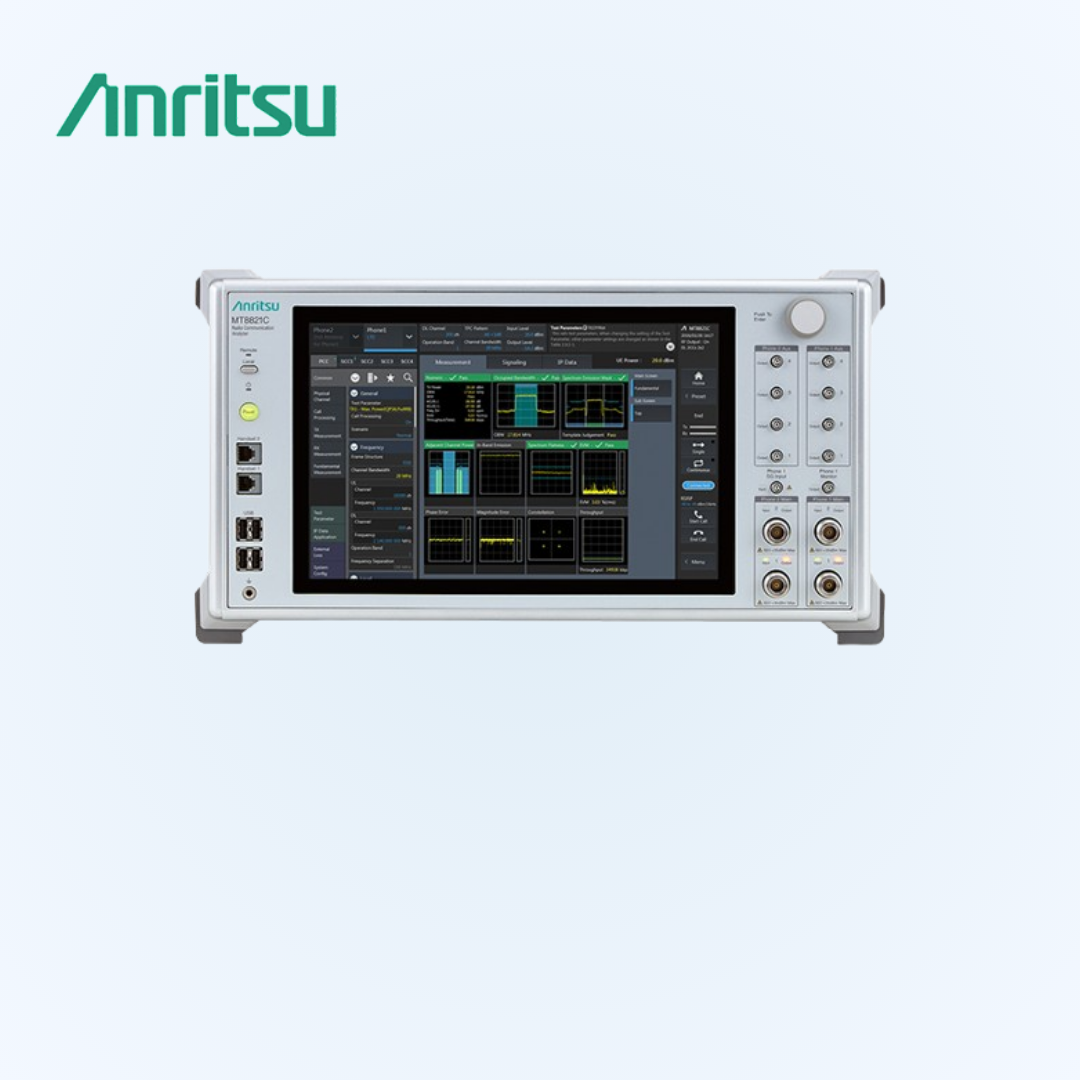

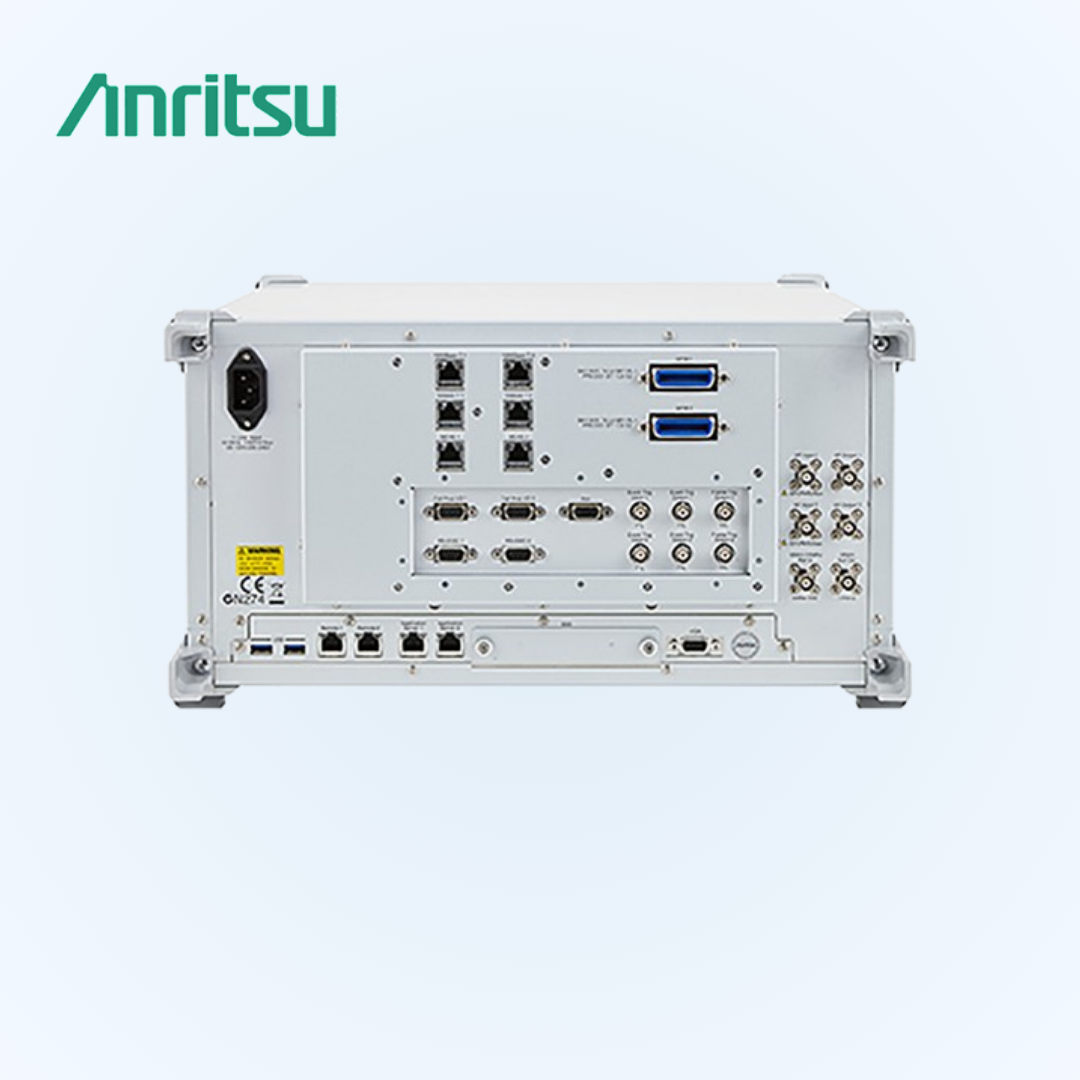

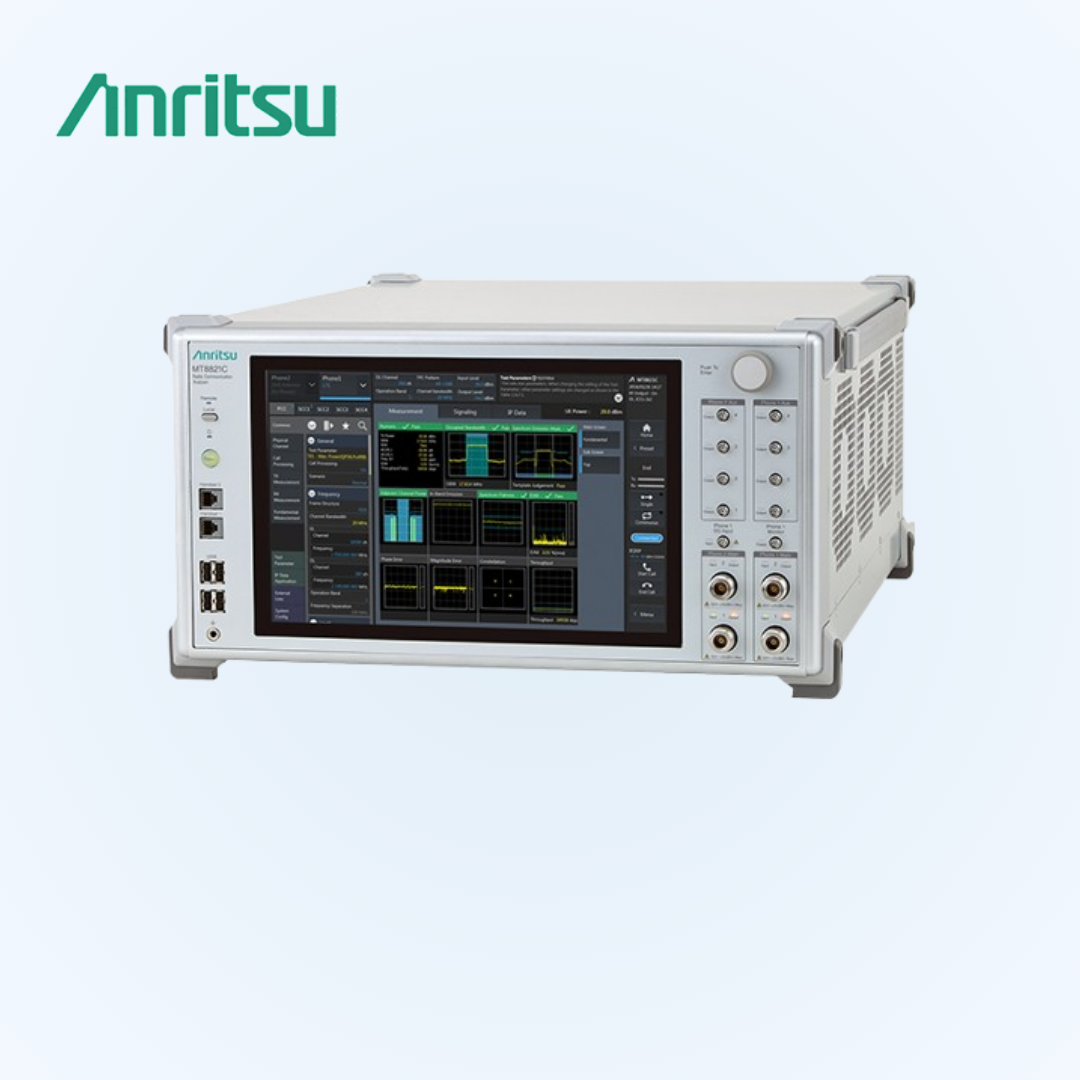

MT8821C

Radio Communication Analyzer

The MT8821C Radio Communication Analyzer is designed for R&D of mobile devices / user equipment (UE), such as smartphones, tablets and IoT modules. It builds on the technologies of its popular predecessor, the MT8820C, preferred by UE and chipset vendors worldwide.

In three units and Supports VoLTE voice/video echoback tests.
Supports up to 6 GHz.
60 MHz wide frequency bandwidth (Generator/Analyzer).
Next generation GUI with large touch panel.
Backwards compatibility with the MT8820 series.
Supports all cellular technologies compliant with 3GPP/3GPP2 UE RF TRX tests including LTE/LTE-Advanced, Cat-M1/NB-IoT, NTN NB-IoT, W-CDMA/HSPA, GSM/EGPRS, TD-SCDMA/HSPA.
Support LTE-Advanced Downlink Carrier Aggregation 5CCs SISO tests in one unit.
Supports LTE-Advanced Downlink Carrier Aggregation 2CCs 4x4 MIMO and 4CCs 2x2 MIMO tests in one unit.
Supports LTE-Advanced Downlink Carrier Aggregation 4CCs 4x4 MIMO and 6CCs 2x2 MIMO tests in two units.
Supports LTE-Advanced Downlink Carrier Aggregation 5CCs 4x4 MIMO tests

Weight : ≤40 kg
Dimensions : 426 (W) × 221.5 (H) × 578 (D) mm
Display : 12.1-inch WXGA, 1280 × 800 pixels, color TFT LCD
Frequency Range : 30 MHz to 3.8/6 GHz
Freq Resolution : 1 Hz
Output Level : -140 dBm to +5 dBm
Maximum input level : +35 dBm
Level Accuracy : ±1 dB to ±1.5 dB
