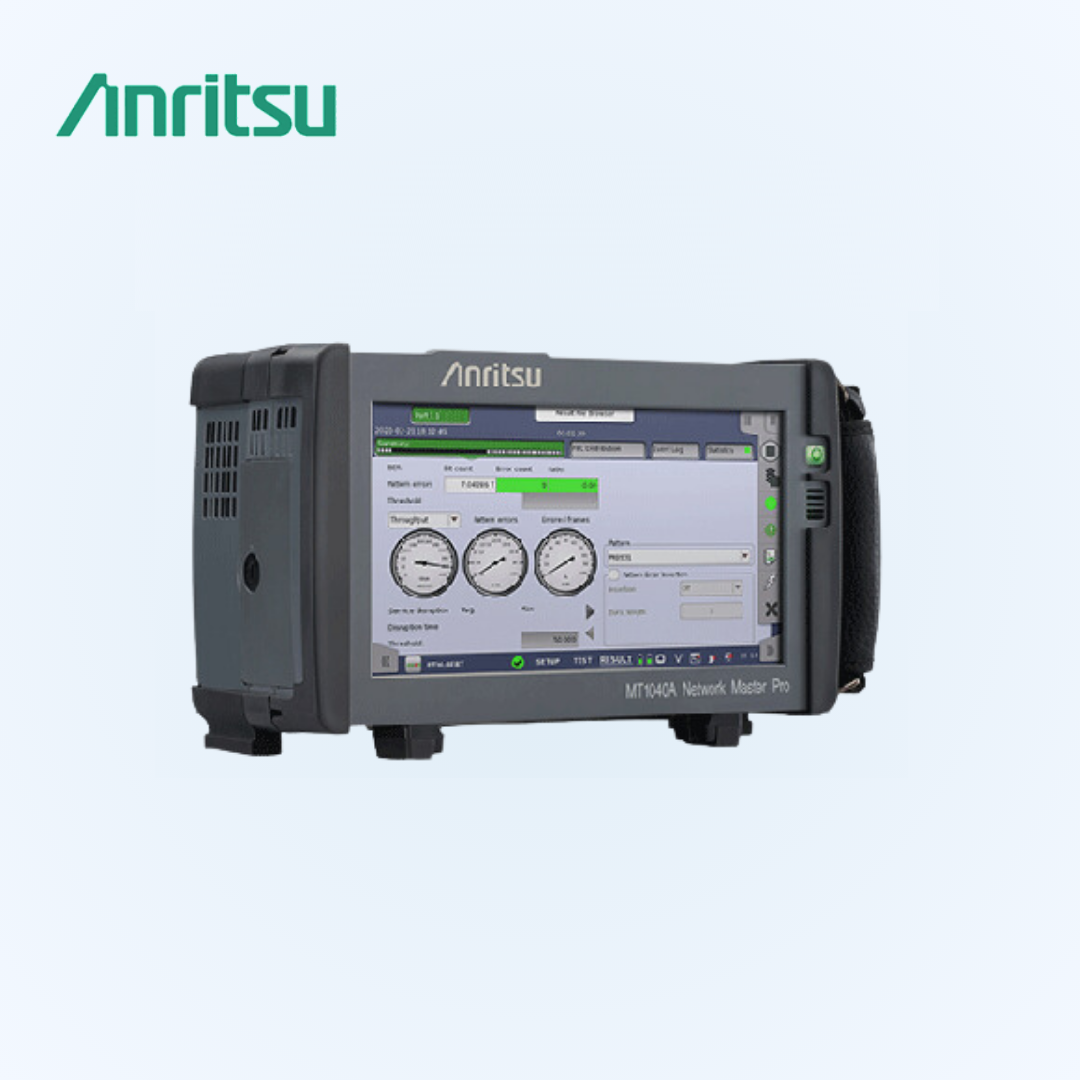

MT1040A

Network Master Pro (400G Tester)

The MT1040A has a wide 9-inch touchscreen built-into the wide B5-size case. At on-site testing with no available AC supply, the battery secures 1 hour (average) of continuous, problem-free 400G interface measurements. The GUI is designed for efficient on-site network I&M evaluation work, and fast troubleshooting if a problem occurs. The intuitive user interface also helps shorten operator training times.

  • With multiple protocols, the all-in-one Network Master Pro supports various network types.
  • The full range of built-in versatile MT1040A functions make field testing easy.
  • Intuitive operation using large 9-inch color touch panel.
  • 400G Dual Ports Measurements (Option).
  • SEEK function supporting fast, automated, on-site installation and maintenance test procedures.
  • Remote-controlled, long-term continuity testing using VNC.
  • Wireless control over WLAN*1.
  • Optical fiber end-face condition inspection using dedicated Fiberscope.
  • Stable Linux OS based test environment*2.
  • User measurement module retrofitting.
  • Supported Interfaces : Ethernet: 10M/100M/1000M, 10G/25G/40G/100G, 400G, OTN/SDH/SONET: 2.5G/10G/40G/100G, Mobile back/fronthaul: eCPRI/RoE/CPRI/OBSAI, Fibre Channel: 1GFC to 16GFC.
  • Battery Life : 1 Hour
  • Battery Type : Rechargeable Li-ion
  • Features : Bluetooth (BT2.1+EDR/3.0/4.2 (BLE)) (File access only) IEEE802.11a/b/g/n (2.4 GHz/5 GHz)
  • MT1040A operates as device : USB 2.0 type Mini-B (1 port)
  • MT1040A operates as host : USB 2.0 type A (2 Ports)Touchscreen
  • Weight : 17.00
