1091-467-R

1091-467-R

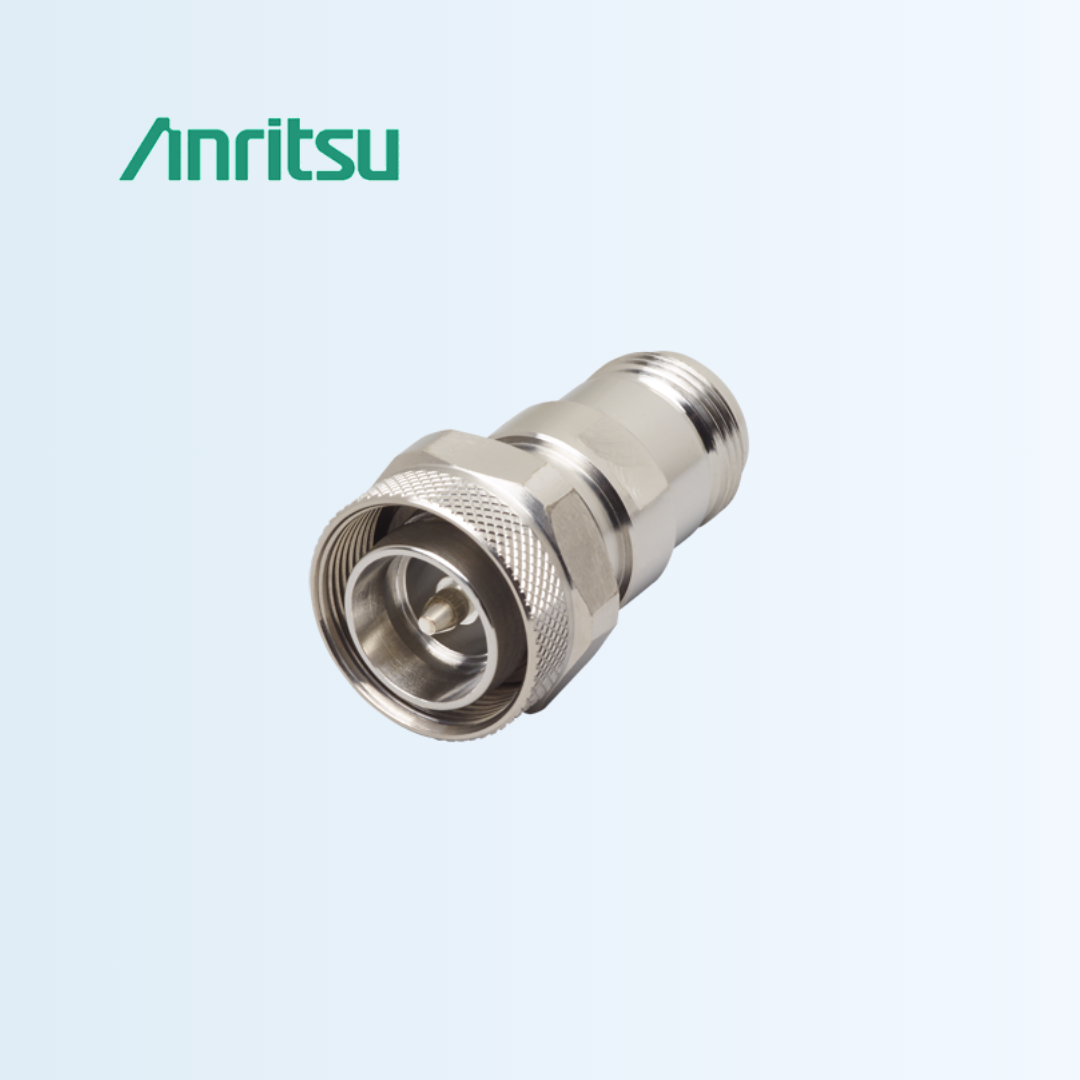

Adapter, DC to 6 GHz, 4.3-10(m) to N(f), 50 Ohm

Male to female adapter, usable from DC to 6 GHz. Robust design with exceptional PIM performance across cellular or wireless frequency ranges. They support applications in cellular or wireless, tower or in-building as well as production or laboratory measurements using many of the Anritsu handheld instruments.

  • Great for use in the following application:
  • Cellular or Wireless
  • Tower or in-building
  • Production or laboratory
  • Operational from DC – 6 GHz
  • Robust design for long product life
  • Low Insertion Loss
  • Exceptional PIM performance across cellular or wireless frequency range
  • Model: 1091-467-R
  • Type: Coaxial Adapter
  • Connector Configuration: 4.3-10 (male) to N-type (female)
  • Impedance: 50 Ω
  • Frequency Range: DC to 6 GHz
  • Insertion Loss: ≤ 0.15 dB
  • Return Loss: ≥ 21 dB (4–6 GHz)
