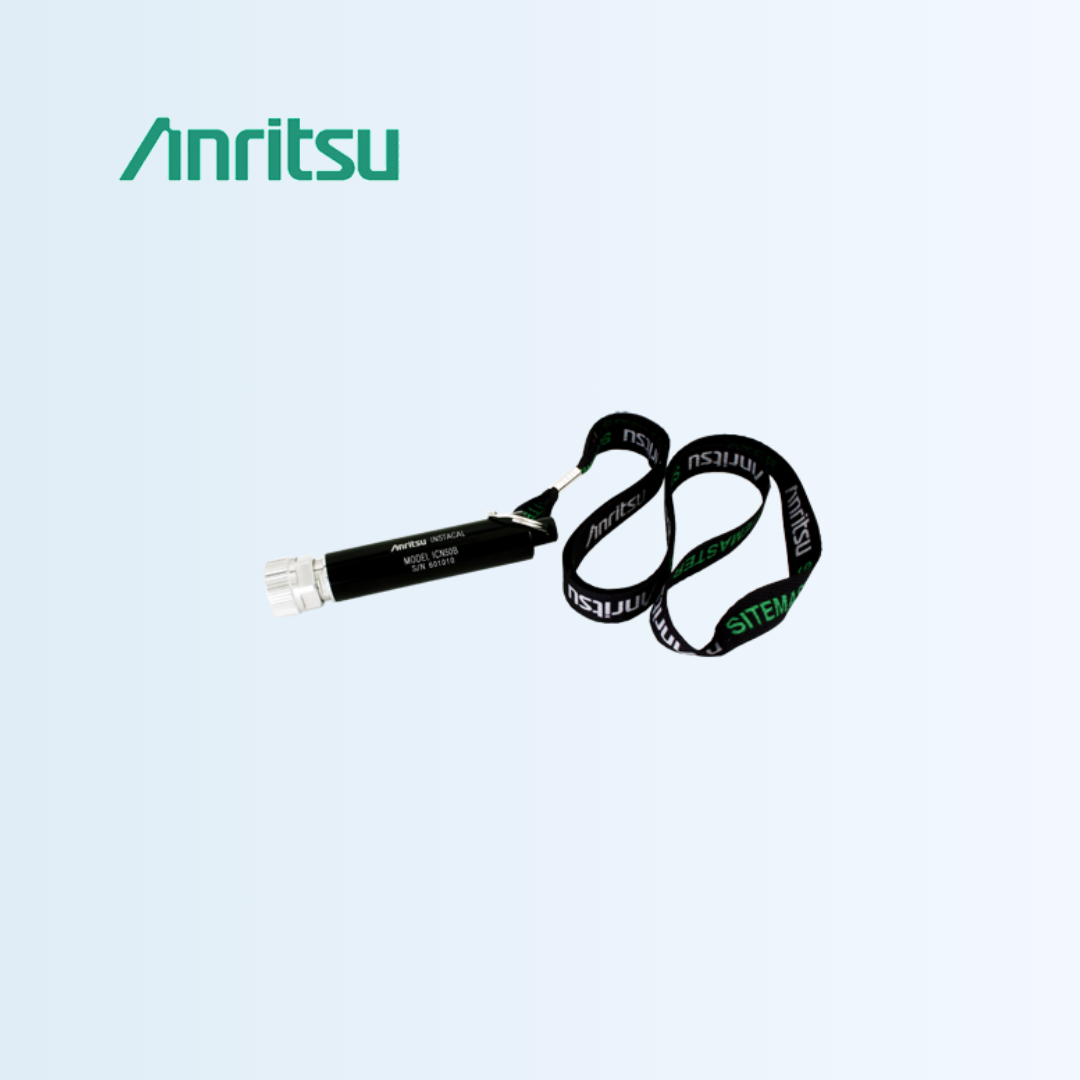

ICN50

InstaCal Calibration Module

ICN50 provides improved frequency coverage and accuracy performance. It is compatible with Site Master, LMR Master and Cell Master.

Model: ICN50 (InstaCal™ Calibration Module)
Type: Electronic auto‑calibration module for Site Master analyzers
Frequency Range: 2 MHz to 4.0 GHz
Connector: N-type male (N(m)), 50 Ω impedance
Compatibility: Works with Site Master models S113C, S114C, S331C, S332C, and Cell Master MT8212A/B
Calibration Method: Performs Open‑Short‑Load (OSL) or FlexCal calibration automatically (~45 seconds)
Directivity: ≥ 38 dB for frequencies below 3.5 GHz; ≥ 35 dB up to 4.0 GHz
