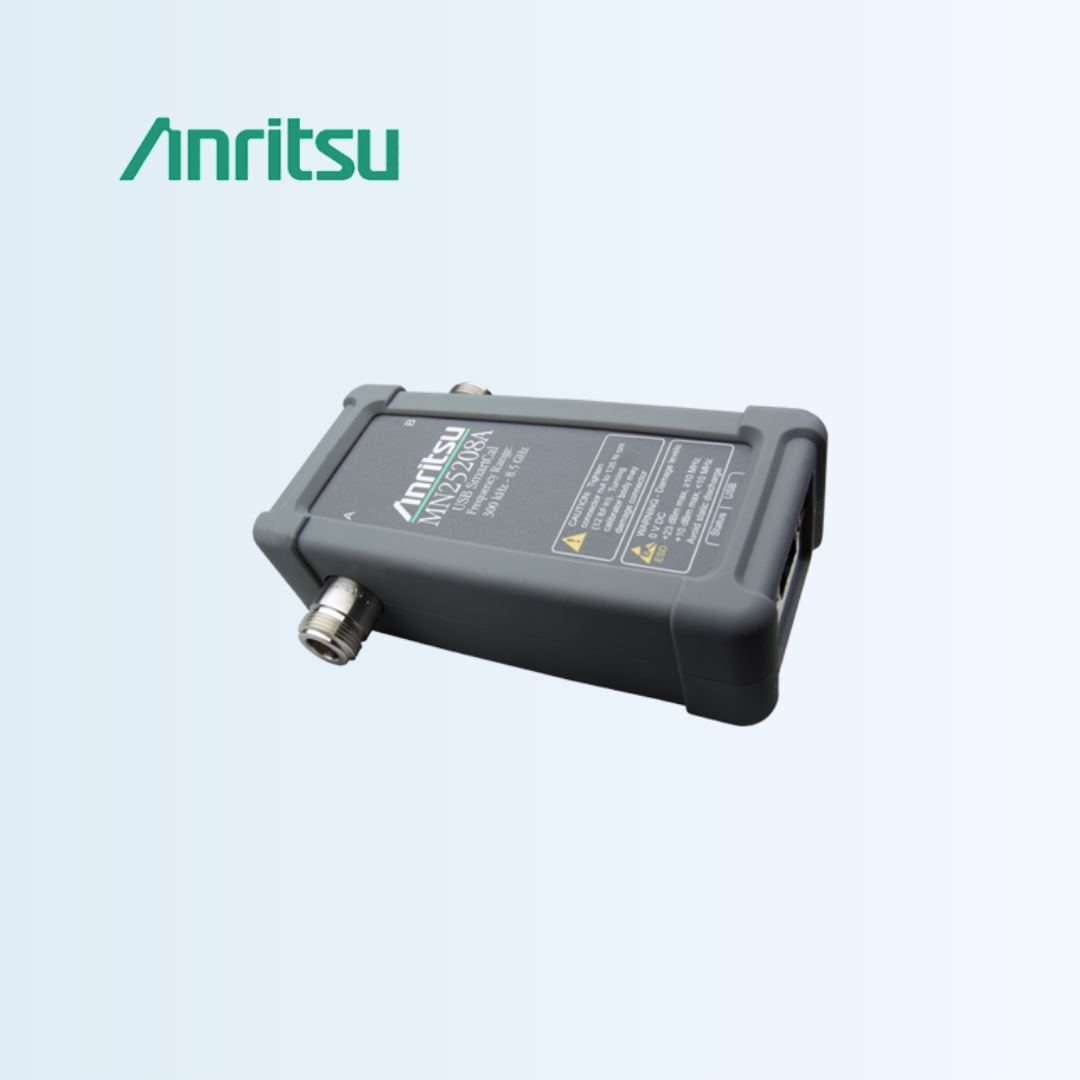

MN25208A

Precision SmartCal™

The SmartCal MN25208A is a series of 2-port auto calibration units covering a frequency range from 300 kHz to 8.5 GHz. The MN25208A has 3 different connector options which include a set of N(f), K(f), or 3.5 mm(f) type connectors. The MN25208A delivers automatic, fast and error-free calibrations for any ShockLine VNA. The SmartCal automatically powers on via an USB connection and loads calibration kit coefficients from on-board memory into the ShockLine software. The SmartCal is ready to use immediately after detection by the VNA because it doesn't require warm-up.

Auto load of calibration kit coefficients- Speeds up setup and reduces calibration error
Auto sense – Prevents bad calibrations due to incorrect or poor connections
VNA to SmartCal Port mapping – Increases flexibility and simplifies multiport calibrations
ShockLine software auto detects SmartCal – Simple, easy to use calibration software
No internal heater – No wait calibration
USB powered and controlled – Convenient one plug interface
Single connection calibrations – Reduces wear and tear on connectors and cables
Supports all ShockLine VNAs – 1, 2, 4-port calibrations available
SCPI command set – Easy integration into automated test environments
Low cost – Automatic and fast calibrations at a low price
Small size – Convenient size provides easier use when moving between VNAs

Model: MN25208A
Device Type: Precision SmartCal™ 2-port USB Auto Calibration Module
Frequency Range: 300 kHz to 8.5 GHz
Connector Options: N‑female to N‑female (MN25208A‑001), K‑female to K‑female (MN25208A‑002), or 3.5 mm‑female to 3.5 mm‑female (MN25208A‑003)
Power & Control: USB‑powered and controlled—no warm-up time needed and no external power supply required
