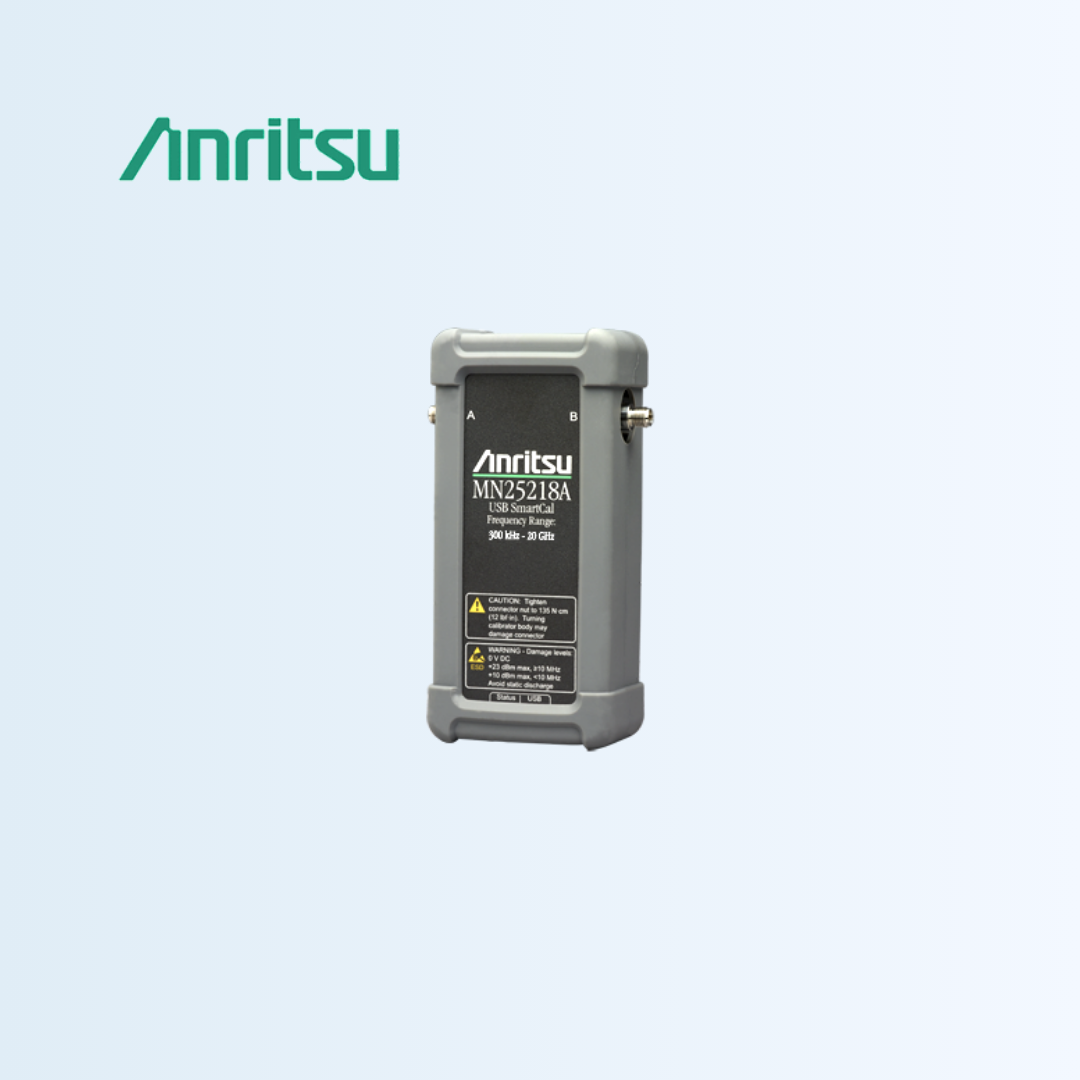

SmartCal™ Auto Calibration Module

The SmartCal MN25218A is a series of 2-port auto calibration units covering a frequency range from 300 kHz to 20 GHz. The MN25218A comes with K(f) connectors on both ports. The MN25218A delivers automatic, fast and error-free calibrations for any ShockLine VNA. The SmartCal automatically powers on via an USB connection and loads calibration kit coefficients from on-board memory into the ShockLine software. The SmartCal is ready to use immediately after detection by the VNA because it doesn't require warm-up.

  • Auto load of calibration kit coefficients- Speeds up setup and reduces calibration error
  • Auto sense – Prevents bad calibrations due to incorrect or poor connections
  • VNA to SmartCal Port mapping – Increases flexibility and simplifies multiport calibrations
  • ShockLine software auto detects SmartCal – Simple, easy to use calibration software
  • No internal heater – No wait calibration
  • USB powered and controlled – Convenient one plug interface
  • Single connection calibrations – Reduces wear and tear on connectors and cables
  • Supports all ShockLine VNAs – 1, 2, 4-port calibrations available
  • SCPI command set – Easy integration into automated test environments
  • Low cost – Automatic and fast calibrations at a low price
  • Small size – Convenient size provides easier use when moving between VNAs
  • Model: MN25218A
  • Device Type: SmartCal™ 2-port USB Auto Calibration Module
  • Frequency Range: 300 kHz to 20 GHz
  • Connector Type: K(f) on both ports
  • Power & Control: USB-powered and controlled—no external power supply or internal heater needed; ready immediately after connection
  • Auto-load Calibration: Automatically loads calibration kit coefficients from internal memory to scope setup time and reduce calibration errors
  • Port Auto-sense & Mapping: Detects and maps VNA ports automatically, simplifying multiport calibration and minimizing setup mistakes
